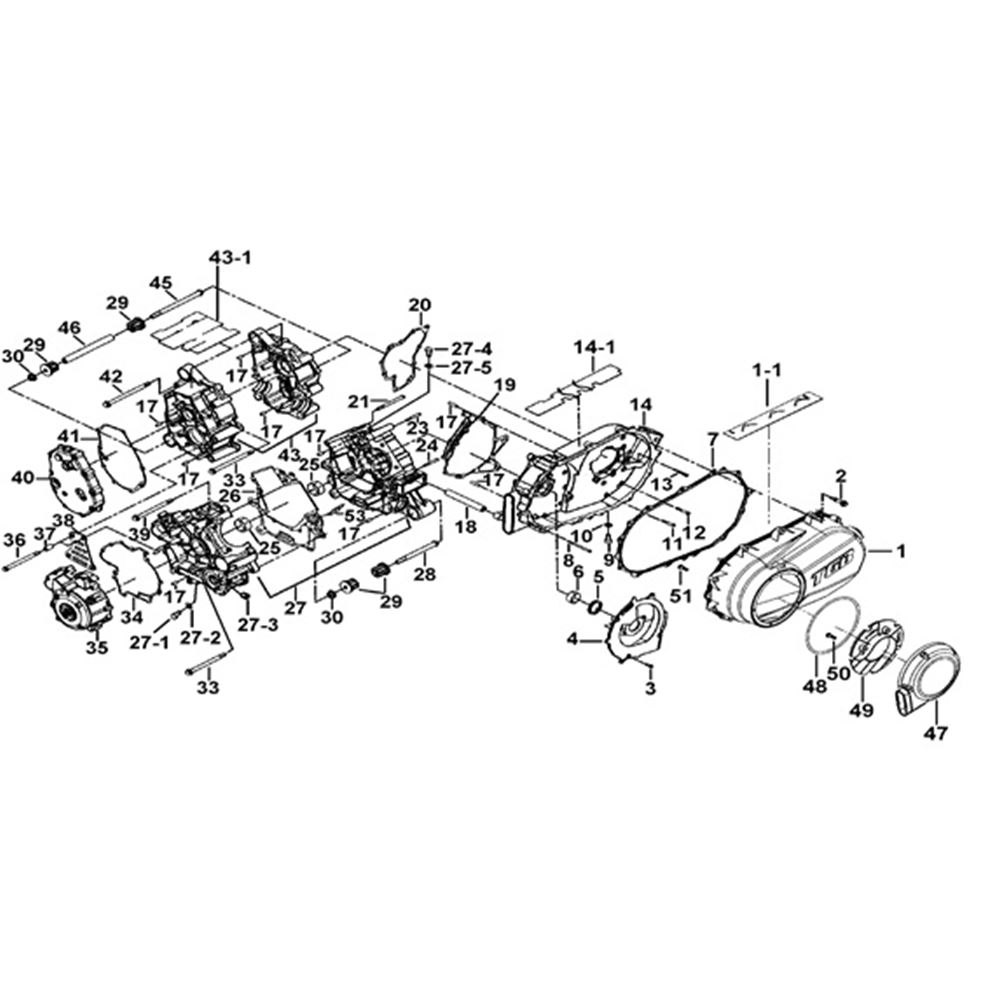

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 01 | 910112-M | Cvt Cover - Before 001366 | 1 | £87.65 | Available in 14-21 days | ||
| 01-1 | 910640 | HEAT INSULATION | 1 | £7.39 | Available in 14-21 days | ||
| 01A | 910666A | CVT COVER COMP. | 1 | £92.06 | In Stock | ||
| 02 | 910278 | BOLT | 12 | £3.22 | In Stock | ||
| 03 | S24603 | BOLT, FLANGE M6x16 | 6 | £0.67 | In Stock | ||
| 04 | 911106 | AIR DUCTING GUIDE | 1 | £26.21 | Available in 14-21 days | ||
| 05 | 910563 | OIL SEAL | 1 | £15.31 | Available in 14-21 days | ||
| 06 | 910337 | PLAIN BEARING | 2 | £38.30 | Available in 14-21 days | ||
| 07 | 910123 | GASKET | 1 | £23.90 | In Stock | ||
| 08 | S24612 | BOLT, FLANGE M6X65 | 1 | £0.72 | Available in 14-21 days | ||
| 08A | S70822 | BOLT, FLANGE M8X65L | 1 | £2.45 | Available in 14-21 days | ||
| 09 | GA504SC12 | BOLT, FLANGE M8X12 | 1 | £0.58 | Available in 14-21 days | ||
| 10 | W99821 | WASHER | 1 | £0.29 | In Stock | ||
| 11 | S24615 | BOLT, FLANGE M6X35 | 25 | £0.67 | Available in 14-21 days | ||
| 11A | S70815 | BOLT, FLANGE M8X35L | 25 | £2.50 | Available in 14-21 days | ||
| 12 | S70617 | Screw, Socket Head - Before 101016 | 1 | £1.01 | Available in 14-21 days | ||
| 12A | S70815 | BOLT, FLANGE M8X35L | 1 | £2.50 | Available in 14-21 days | ||
| 13 | 910475 | POSITION SCREW | 2 | £1.25 | Available in 14-21 days | ||
| 14 | 910111A | Crankcase Cover, Lh - Before 101016 | 1 | £186.50 | Available in 14-21 days | ||
| 14-1 | 910558 | HEAT INSULATION | 1 | £20.98 | Available in 14-21 days | ||
| 14A | 911107A | Crankcase Cover, Lh(Including Heat Insulation/ Bolt/ Washer) - After 101017 | 1 | £186.50 | Available in 14-21 days | ||
| 17 | P30802 | PIN, DOWEL (NR 8*14L) | 10 | £1.82 | Available in 14-21 days | ||
| 18 | 910524 | SPACER | 1 | £9.31 | Available in 14-21 days | ||
| 19 | 910480 | Gasket - Before 101016 | 1 | £29.95 | In Stock | ||
| 19A | 911486 | GASKET | 1 | £31.44 | In Stock | ||
| 20 | 910576 | Gasket - Before 101016 | 1 | £61.44 | In Stock | ||
| 20A | 911115 | GASKET | 1 | £21.79 | In Stock | ||
| 21 | S20830 | BOLT, FLANGE | 4 | £2.59 | Available in 14-21 days | ||
| 23 | S24621 | BOLT, FLANGE | 13 | £0.77 | Available in 14-21 days | ||
| 24 | S24605 | BOLT, FLANGE M6X25 | 2 | £0.67 | Available in 14-21 days | ||
| 25 | 910250 | PLAIN BEARING | 4 | £18.53 | Available in 14-21 days | ||
| 26 | 910674 | GASKET | 1 | £40.99 | In Stock | ||
| 27 | 910310 | Crankcase - Before 101016 | 1 | £319.20 | Available in 14-21 days | ||
| 27-1 | S17201 | Bolt, Flange - Before 101451 | 1 | £1.30 | Available in 14-21 days | ||
| 27-1A | S72202 | SCREW, SOCKET | 1 | £1.63 | Available in 14-21 days | ||
| 27-2 | W99201 | WASHER 12mm | 1 | £0.72 | In Stock | ||
| 27-3 | 927109 | SCREW | 1 | £7.44 | Available in 14-21 days | ||
| 27-4 | S70701 | SCREW, HEX. SCCKET | 1 | £1.68 | Available in 14-21 days | ||
| 27-5 | W99719 | WASHER (?7.2X?12X1.0) | 1 | £1.25 | Available in 14-21 days | ||
| 27A | 911108-A | Crankcase Comp - After 101017 | 1 | £326.88 | Available in 14-21 days | ||
| 28 | S20217 | BOLT, FLANGE | 1 | £0.67 | Available in 14-21 days | ||
| 29 | 910088 | BUSH | 4 | £38.11 | Available in 14-21 days | ||
| 30 | N25201 | NUT, SELFLOCK M12X1.25 | 2 | £1.54 | In Stock | ||
| 33 | S20057 | BOLT, FLANGE | 2 | £6.24 | Available in 14-21 days | ||
| 34 | 910052 | GASKET | 1 | £16.75 | In Stock | ||
| 35 | 910051 | CRANKCASE COVER, RH | 1 | £124.99 | Available in 14-21 days | ||
| 36 | S20219 | BOLT, FLANGE | 4 | £10.70 | Available in 14-21 days | ||
| 37 | P40501 | PIN, DOWEL | 4 | £3.41 | Available in 14-21 days | ||
| 38 | 910479 | CONNECTING PLATE | 1 | £14.11 | Available in 14-21 days | ||
| 39 | S20055 | BOLT, FLANGE | 1 | £6.24 | Available in 14-21 days | ||
| 40 | 910265 | TRANSMISSION COVER, RH | 1 | £74.59 | Available in 14-21 days | ||
| 41 | 910478 | GASKET | 1 | £17.71 | In Stock | ||
| 42 | S20056 | BOLT, FLANGE | 1 | £6.67 | Available in 14-21 days | ||
| 43 | 910659A | Transmission Housing Comp - Before 101016 | 1 | £201.84 | Available in 14-21 days | ||
| 43-1 | 911323 | HEAT INSULATION | 1 | £15.17 | Available in 14-21 days | ||
| 43A | 911332A | Transmission Housing Comp - After 101017 | 1 | £204.00 | Available in 14-21 days | ||
| 45 | S20203 | BOLT, HEX. HEAD M12*227 | 1 | £12.10 | Available in 14-21 days | ||
| 46 | 910476 | SPACER | 1 | £8.88 | Available in 14-21 days | ||
| 47 | 910667 | CAP | 1 | £70.56 | Available in 14-21 days | ||
| 48 | 910673 | O RING | 1 | £5.14 | Available in 14-21 days | ||
| 49 | 910591 | AIR DEFLECTOR | 1 | £13.39 | Available in 14-21 days | ||
| 50 | S24603 | BOLT, FLANGE M6x16 | 3 | £0.67 | In Stock | ||
| 51 | S08601 | SCREW, WASHER | 5 | £0.77 | Available in 14-21 days | ||
| 53 | 910669 | STOPPER PLATE | 1 | £2.30 | Available in 14-21 days |
