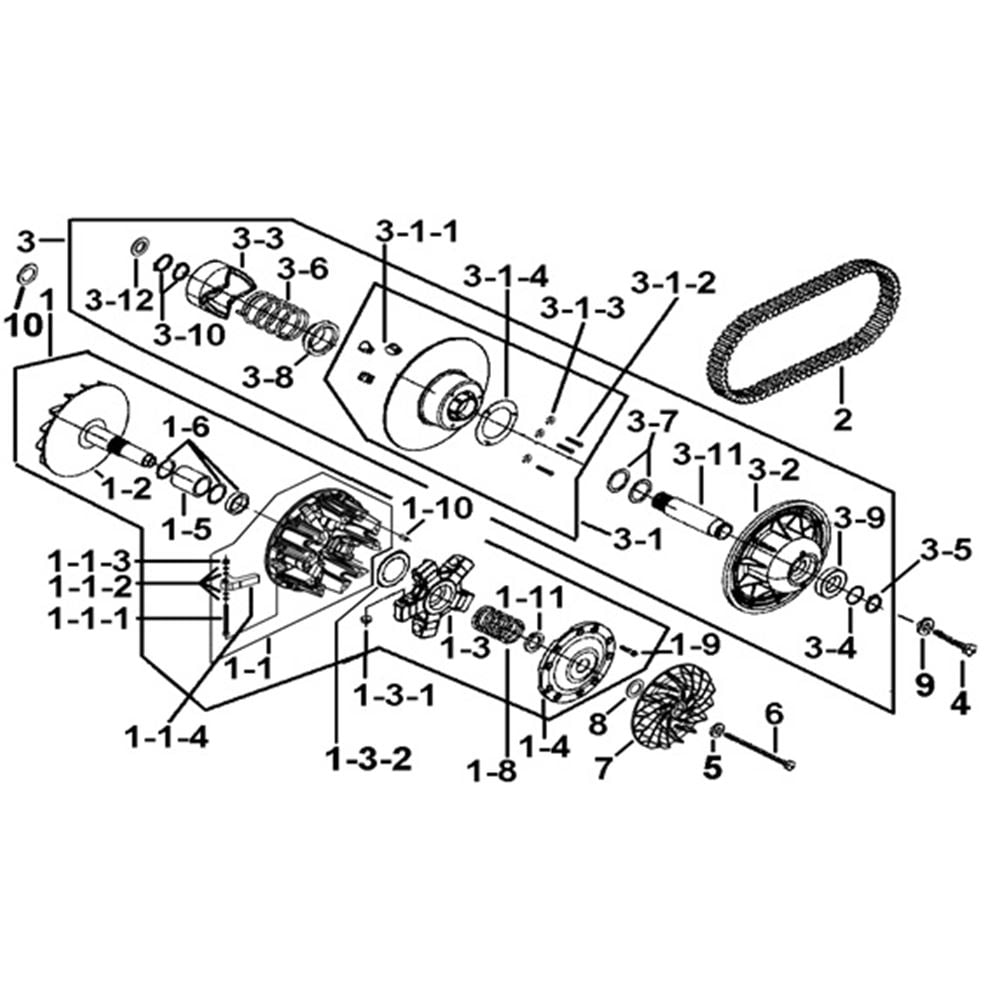

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 01 | 911230-S | Drive Pulley Assy.(Contain S03202 Bolt) - Before 001366 | 1 | £557.28 | Available in 14-21 days | ||
| 01-1 | 492802C | Outer Haft Assy - Before 101653 | 1 | £228.00 | Available in 14-21 days | ||
| 01-1-1 | 911084 | Bolt - Before 101653 | 5 | £8.45 | Available in 14-21 days | ||
| 01-1-1A | 492821 | BOLT | 5 | £8.88 | Available in 14-21 days | ||
| 01-1-2 | 911083 | Washer - Before 101653 | 20 | £0.58 | Available in 14-21 days | ||
| 01-1-2A | 492837 | WASHER | 20 | £0.62 | Available in 14-21 days | ||
| 01-1-3 | 911082 | Nut - Before 101653 | 5 | £0.29 | Available in 14-21 days | ||
| 01-1-3A | 492822 | NUT | 5 | £0.43 | Available in 14-21 days | ||
| 01-1-4 | 493222B | Cenfrifugal Lever Kit - Before 101653 | 5 | £17.90 | Available in 14-21 days | ||
| 01-1-4A | 493202B | CENFRIFUGAL LEVER KIT | 5 | £19.34 | Available in 14-21 days | ||
| 01-10 | 493075 | PIN | 2 | £1.63 | Available in 14-21 days | ||
| 01-11 | 493093 | LIMITER | 1 | £71.76 | Available in 14-21 days | ||
| 01-1A | 493210C | OUTER HAFT ASSY. | 1 | £239.40 | Available in 14-21 days | ||
| 01-2 | 493080B | Inner Haft Assy - Before 001366 | 1 | £217.20 | Available in 14-21 days | ||
| 01-2A | 493124B | INNER HAFT ASSY. | 1 | £229.32 | Available in 14-21 days | ||
| 01-3 | 493168B | GOVERNOR CUP ASSY. | 1 | £269.10 | Available in 14-21 days | ||
| 01-3-1 | 492830 | SLIDER SHOE | 10 | £20.45 | Available in 14-21 days | ||
| 01-3-2 | 493167 | WASHER | 1 | £10.94 | Available in 14-21 days | ||
| 01-4 | 492907B | TUNER HAFT COVER ASSY. | 1 | £141.79 | Available in 14-21 days | ||
| 01-5 | 493068 | ONE WAY BEARING | 1 | £218.94 | Available in 14-21 days | ||
| 01-6 | 493165A | SPACER (W/ WASHER) | 1 | £91.58 | Available in 14-21 days | ||
| 01-8 | 493037 | SPRING | 1 | £15.65 | Available in 14-21 days | ||
| 01-9 | 492733 | SCREW | 10 | £1.25 | Available in 14-21 days | ||
| 01A | 911230 | DRIVE PULLEY ASSY | 1 | £548.64 | Available in 14-21 days | ||
| 02 | 927232 | BELT | 1 | £179.40 | Available in 14-21 days | ||
| 02A | 911226 | BELT | 1 | £179.40 | Available in 14-21 days | ||
| 03-1 | 492904C | OUTER HAFT ASSY. | 1 | £315.00 | Available in 14-21 days | ||
| 03-1-1 | 492464 | SLIDER SHOE | 3 | £63.70 | Available in 14-21 days | ||
| 03-1-2 | 493113 | SCREW | 3 | £1.25 | In Stock | ||
| 03-1-3 | 493112 | SPRING WASHER | 3 | £0.19 | In Stock | ||
| 03-1-4 | 493084 | OUTER HAFT WASHER | 1 | £7.68 | Available in 14-21 days | ||
| 03-10 | 493085 | C CLIP | 2 | £3.36 | Available in 14-21 days | ||
| 03-11 | 493059 | DRIVEN PULLEY SHAFT | 1 | £133.44 | Available in 14-21 days | ||
| 03-12 | W99312 | Gasket - Before 101589 | 1 | £5.09 | In Stock | ||
| 03-12A | 493145 | GASKET | 1 | £6.05 | In Stock | ||
| 03-2 | 493030B | TNNER HAFT ASSY | 1 | £224.78 | Available in 14-21 days | ||
| 03-3 | 492442 | Cam - Before 101589 | 1 | £68.35 | In Stock | ||
| 03-3A | 493203 | CAM | 1 | £72.58 | In Stock | ||
| 03-4 | 493090 | BEARING WASHER | 1 | £3.12 | Available in 14-21 days | ||
| 03-5 | 493087 | C CLIP | 1 | £5.23 | Available in 14-21 days | ||
| 03-6 | 493088A | Spring(Blue Or Purple) - Before 101589 | 1 | £16.27 | Available in 14-21 days | ||
| 03-6A | 493088A | SPRING(WHITE) | 1 | £16.27 | Available in 14-21 days | ||
| 03-7 | 492475 | WASHER | 2 | £3.26 | Available in 14-21 days | ||
| 03-8 | 493076 | SPRING SEAT | 1 | £26.35 | Available in 14-21 days | ||
| 03-9 | 493070 | BEARING | 1 | £32.54 | In Stock | ||
| 03A | 911222 | DRIVEN PULLEY ASSY - Before 105372 | 1 | £443.28 | Available in 14-21 days | ||
| 04 | N33809 | Nut - Before 101761 | 1 | £17.57 | In Stock | ||
| 04A | S03401 | BOLT, HEX. HEAD M14X2.0X110L | 1 | £14.74 | In Stock | ||
| 05 | W99228 | WASHER | 1 | £3.74 | In Stock | ||
| 06 | S03201 | Bolt - Before 001366 | 1 | £11.71 | In Stock | ||
| 06A | S03202 | BOLT | 1 | £12.53 | In Stock | ||
| 07 | 910593A | COOLING FAN | 1 | £32.45 | In Stock | ||
| 08 | 910657 | SPACER | 1 | £3.46 | In Stock | ||
| 09 | 911208 | WASHER | 1 | £12.00 | In Stock | ||
| 10 | W99543 | WASHER(0.8mm) | 1 | £1.39 | In Stock |
