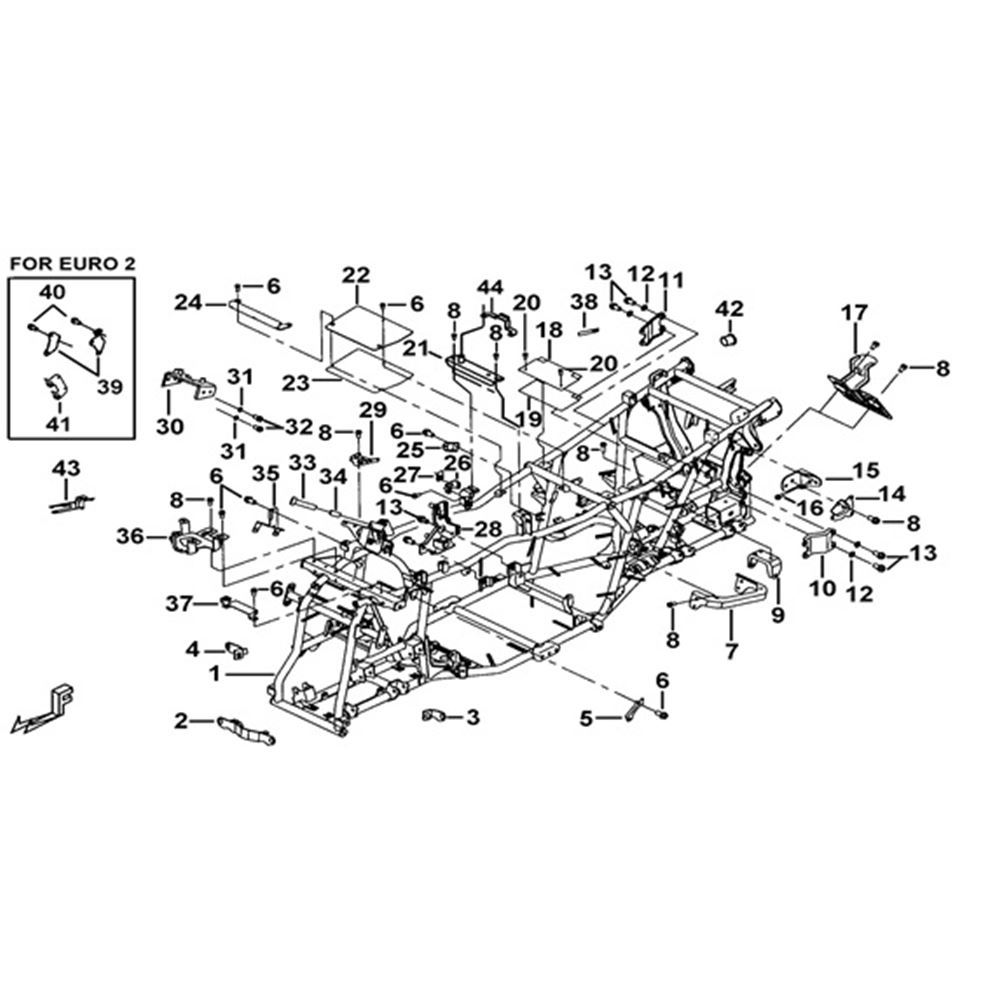

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 01 | 517946 | Main Frame (Eps) - Before 003160 | 1 | £831.60 | Available in 14-21 days | ||
| 01A | 511339 | MAIN FRAME | 1 | £831.60 | Available in 14-21 days | ||
| 01B | 517976 | Main Frame (W/O Eps) - Before 003160 | 1 | £831.60 | Available in 14-21 days | ||
| 01C | 511340 | MAIN FRAME - W/O EPS | 1 | £831.60 | Available in 14-21 days | ||
| 02 | 511308 | BRACKET | 1 | £14.59 | Available in 14-21 days | ||
| 03 | 511310 | BRACKET (L.R.) | 1 | £5.38 | Available in 14-21 days | ||
| 04 | 511311 | BRACKET (R.R.) | 1 | £4.61 | Available in 14-21 days | ||
| 05 | 517969 | FRONT INTERNAL FENDER | 1 | £6.43 | Available in 14-21 days | ||
| 06 | GA555SC05 | BOLT, OUTLET M6X1.0X16L | 11 | £0.29 | In Stock | ||
| 07 | 517947 | TANK BRACKET | 1 | £26.88 | Available in 14-21 days | ||
| 08 | S21809 | BOLT M8X1.25X18L | 15 | £0.67 | In Stock | ||
| 09 | 517972 | REAR DIFFERENTIAL BRACKET(UPPER) | 1 | £23.62 | Available in 14-21 days | ||
| 10 | 517948 | REAR DIFFERENTIAL BRACKET, LH. | 1 | £24.96 | Available in 14-21 days | ||
| 11 | 517953 | REAR DIFFERENTIAL BRACKET, RH. | 1 | £8.83 | Available in 14-21 days | ||
| 12 | GA556WS06 | WASHER, SPRING 10X18X2.5 | 4 | £0.29 | In Stock | ||
| 13 | S21008 | BOLT M10X20 | 7 | £2.02 | In Stock | ||
| 14 | 517954 | MOTOR BRACKET | 1 | £9.41 | Available in 14-21 days | ||
| 15 | 517999 | BRACKET | 1 | £10.94 | Available in 14-21 days | ||
| 16 | S72805 | BOLT, SOCKET M8X20L | 2 | £0.38 | In Stock | ||
| 17 | 511991 | BRACKET ASSY., NUMBER-PLATE | 1 | £26.78 | Available in 14-21 days | ||
| 18 | 514931 | SEAT STEADY | 1 | £21.22 | Available in 14-21 days | ||
| 19 | 511331 | HEAT ISULATION | 1 | £13.63 | Available in 14-21 days | ||
| 20 | S20617 | BOLT, FLANGE M6X25 | 2 | £0.48 | In Stock | ||
| 21 | 517977 | REAR BRACKET,AIR CLEANER | 1 | £22.66 | Available in 14-21 days | ||
| 22 | 517955 | HEAT ISULATION | 1 | £15.74 | Available in 14-21 days | ||
| 23 | 511330 | FLOOR CUSHIONS INSULATION STICKER | 1 | £17.09 | Available in 14-21 days | ||
| 24 | 517958 | CUSHIONS FIXED PLATE(FRONT) | 1 | £24.19 | Available in 14-21 days | ||
| 25 | 511343 | BRACKET, COOLING FAN | 1 | £5.23 | Available in 14-21 days | ||
| 26 | 517978 | BRACKET,SIDE COVER | 2 | £4.08 | Available in 14-21 days | ||
| 27 | N32601 | NUT, SPRING | 2 | £0.77 | Available in 14-21 days | ||
| 28 | 517979 | BRACKET,PEDAL BRAKE LEVER | 1 | £54.05 | Available in 14-21 days | ||
| 29 | 517959 | HIGH VOLTAGE COIL BRACKET | 1 | £12.29 | Available in 14-21 days | ||
| 30 | 511369 | BRACKET, EPS | 1 | £45.79 | Available in 14-21 days | ||
| 31 | GA556WS04 | SPRING WASHER 8X15X2.0 | 4 | £0.29 | Available in 14-21 days | ||
| 32 | S20814 | BOLT, FLANGE M8X1.25X20L | 4 | £1.06 | In Stock | ||
| 33 | 511953 | PIN, STEERING LOCK | 1 | £7.68 | Available in 14-21 days | ||
| 34 | 511946 | SPRING, STEERING LOCK | 1 | £0.91 | Available in 14-21 days | ||
| 35 | 511344 | BRACKET, FUSE WIRING HARNESS | 1 | £10.42 | Available in 14-21 days | ||
| 36 | 517951 | ECU BRACKET | 1 | £28.03 | Available in 14-21 days | ||
| 37 | 517956 | CVT BRACKET | 1 | £7.68 | Available in 14-21 days | ||
| 38 | 514410 | CLAMP | 1 | £1.01 | In Stock | ||
| 39 | 517950 | RECTIFIER BRACKET - Before 003566 | 2 | £9.41 | Available in 14-21 days | ||
| 40 | S20817 | BOLT, FLANGE M8X16 | 2 | £0.91 | In Stock | ||
| 41 | 517998 | Bracket (W/Eps) - Before 003566 | 1 | £7.30 | Available in 14-21 days | ||
| 42 | 512072 | PLUG | 2 | £1.82 | In Stock | ||
| 43 | 511389 | BRACKET | 1 | £23.42 | Available in 14-21 days | ||
| 44 | 512360 | CUSHIONS FIXED PLATE(FRONT) | 1 | £10.37 | Available in 14-21 days |
