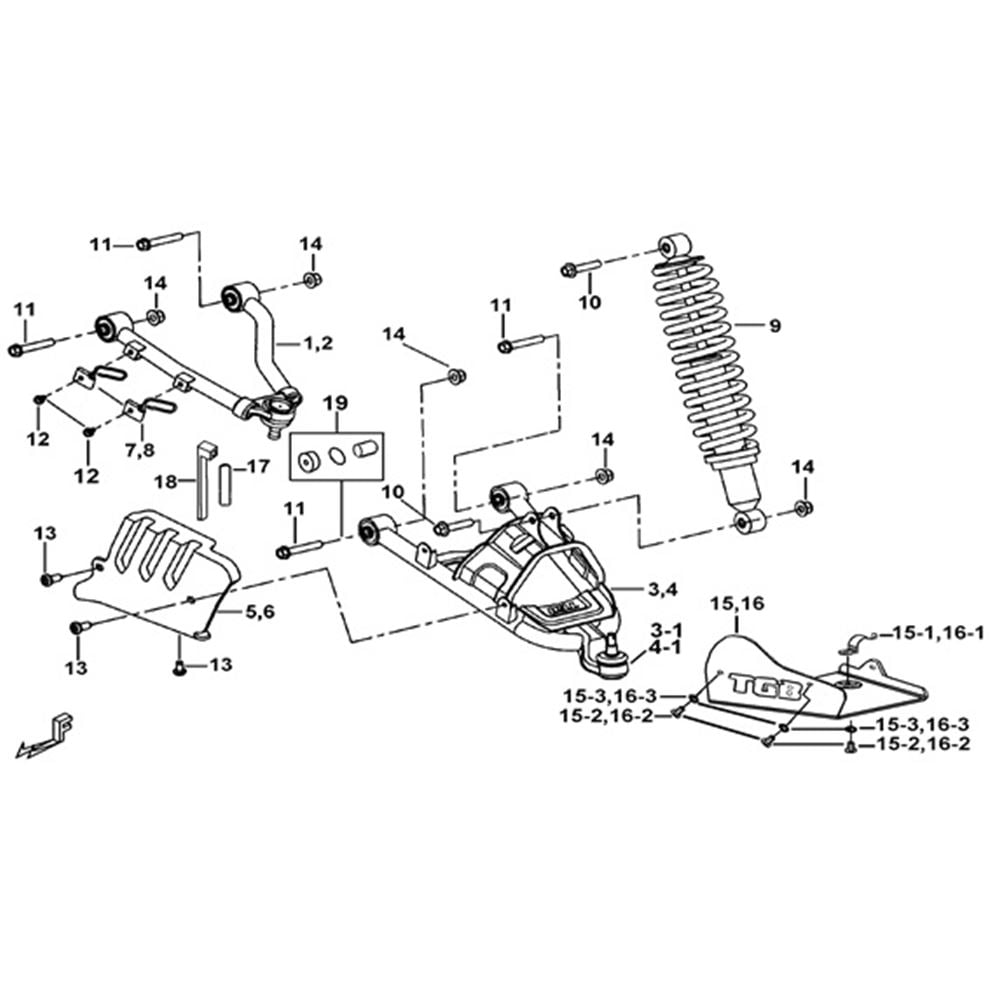

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 01 | 511137 | ARM SET, UPPER, LH. (FRONT) | 1 | £189.31 | Available in 14-21 days | ||
| 02 | 511138 | ARM SET, UPPER, RH. (FRONT) | 1 | £189.31 | Available in 14-21 days | ||
| 03 | 511139 | ARM SET, LOWER, LH.(FRONT) | 1 | £192.00 | Available in 14-21 days | ||
| 03-1 | 511153 | BALL JOINT | 1 | £60.53 | Available in 14-21 days | ||
| 04 | 511140 | ARM SET, LOWER, RH.(FRONT) | 1 | £192.00 | Available in 14-21 days | ||
| 04-1 | 511153 | BALL JOINT | 1 | £60.53 | Available in 14-21 days | ||
| 05 | 516306 | PROTECTOR, COVER(LH.) | 1 | £7.01 | In Stock | ||
| 06 | 516307 | PROTECTOR, COVER(RH.) | 1 | £7.01 | In Stock | ||
| 07 | 513329 | CLAMP (LH.) | 2 | £3.60 | In Stock | ||
| 08 | 513330 | CLAMP (RH.) | 2 | £3.60 | Available in 14-21 days | ||
| 09 | 516369 | Shock Absorber Assy., Front(Nitrogen Tank) | 2 | £409.32 | Available in 14-21 days | ||
| 09A | 511120 | Shock Absorber Assy., Front(Evo) | 2 | £187.68 | Available in 14-21 days | ||
| 10 | S20009 | BOLT, HEX. HEAD M10X1.25X48L | 4 | £8.78 | In Stock | ||
| 11 | S20017 | SH. FLANGE BOLT M10X60L | 8 | £1.92 | In Stock | ||
| 12 | S21605 | BOLT, FLANGE M6X10 | 4 | £0.24 | In Stock | ||
| 13 | S07601 | BOLT, FLANGE M6X16 (Dark Green) | 6 | £0.82 | In Stock | ||
| 14 | GA551NT01 | NUT, SELFLOCK M10X10 | 10 | £1.25 | In Stock | ||
| 15 | 511405B | COVER COMP., ORNAMENTAL(LH)(AL) | 1 | £89.38 | Available in 14-21 days | ||
| 15-1 | 513363 | ANCHOR PLATE | 1 | £4.03 | Available in 14-21 days | ||
| 15-2 | S21604 | BOLT, FLANGE M6X1.0X20L | 3 | £0.62 | Available in 14-21 days | ||
| 15-3 | GA555WS02 | WASHER 6X16X1.5 | 3 | £0.19 | Available in 14-21 days | ||
| 16 | 511406B | COVER COMP., ORNAMENTAL(RH)(AL) | 1 | £89.38 | Available in 14-21 days | ||
| 16-1 | 513363 | ANCHOR PLATE | 1 | £4.03 | Available in 14-21 days | ||
| 16-2 | S21604 | BOLT, FLANGE M6X1.0X20L | 3 | £0.62 | Available in 14-21 days | ||
| 16-3 | GA555WS02 | WASHER 6X16X1.5 | 3 | £0.19 | Available in 14-21 days | ||
| 17 | 516519 | HOSE(90mm) | 2 | £3.65 | Available in 14-21 days | ||
| 18 | 518739 | CLAMP L200 | 2 | £0.24 | In Stock | ||
| 19 | 518712A | Arm Set Maintenance Package (Contain Spacer, O Ring, Bush) | 4 | £11.42 | In Stock |
