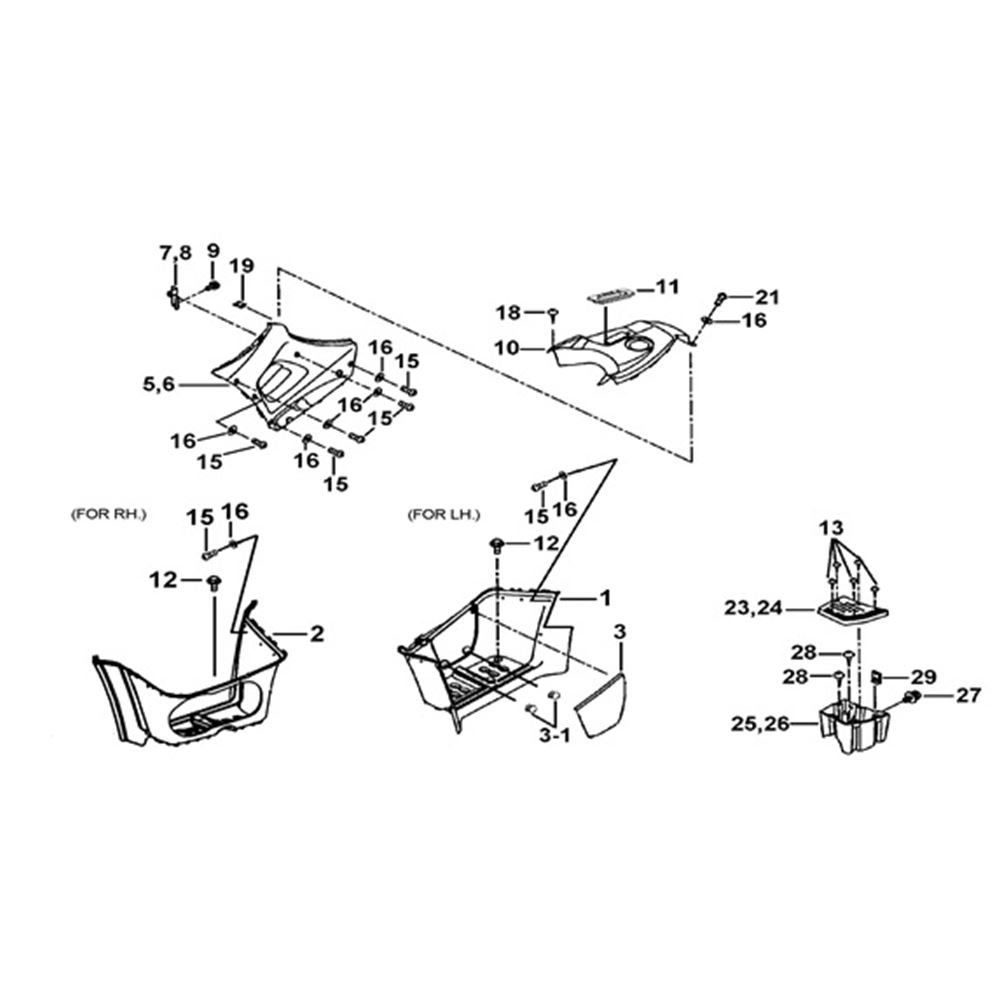

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 01 | 512524B | FOOT BOARD, LH.(BROACH) | 1 | £105.12 | Available in 14-21 days | ||
| 02 | 512571A | FOOT BOARD, RH.(BROACH) | 1 | £105.12 | Available in 14-21 days | ||
| 03 | 512544A | COVER COMP., OIL LEVEL CHECKING | 1 | £16.85 | Available in 14-21 days | ||
| 03-1 | 512543 | RUBBER PLUG | 2 | £1.30 | In Stock | ||
| 05 | 512589 | Side Cover, Lh | 1 | £134.40 | Available in 14-21 days | ||
| 06 | 512590K | Side Cover, Rh | 1 | £134.40 | Available in 14-21 days | ||
| 07 | 511513 | BRKT., SIDE COVER, LH | 1 | £2.59 | Available in 14-21 days | ||
| 08 | 511514 | BRKT., SIDE COVER, RH | 1 | £2.83 | Available in 14-21 days | ||
| 09 | GA556SC01 | BOLT, FLANGE M6X1.0X12L | 2 | £0.29 | Available in 14-21 days | ||
| 10 | 512505 | FUEL TANK COVER, UPPER | 1 | £161.28 | Available in 14-21 days | ||
| 11 | 511511 | GEAR CHANGE INDICATOR SUPPORT | 1 | £10.42 | Available in 14-21 days | ||
| 12 | S25602 | BOLT M6X16L | 6 | £0.82 | Available in 14-21 days | ||
| 13 | S50401 | SCREW TAPPING M4X12 | 10 | £0.29 | In Stock | ||
| 15 | S72605 | BOLT, HEX HEAD M6X16 (Silver White) | 22 | £0.96 | Available in 14-21 days | ||
| 16 | GA555WS02 | WASHER 6X16X1.5 | 24 | £0.19 | Available in 14-21 days | ||
| 18 | S50509 | SCREW, TAPPING M5X16 | 2 | £0.86 | In Stock | ||
| 19 | N32601 | NUT, SPRING | 2 | £0.82 | Available in 14-21 days | ||
| 21 | S72603 | BOLT, HEX HEAD M6X12 | 2 | £1.25 | Available in 14-21 days | ||
| 23 | 512517 | LH. FOOT, REST(UPPER) | 1 | £7.82 | Available in 14-21 days | ||
| 24 | 512519 | RH. FOOT, REST(UPPER) | 1 | £7.82 | Available in 14-21 days | ||
| 25 | 512518 | LH. FOOT, REST(BELOW) | 1 | £10.94 | Available in 14-21 days | ||
| 26 | 512520 | RH. FOOT, REST(BELOW) | 1 | £10.94 | Available in 14-21 days | ||
| 27 | S07601 | BOLT, FLANGE M6X16 (Dark Green) | 4 | £0.86 | In Stock | ||
| 28 | S50506 | SCREW, TAPPING | 4 | £0.29 | Available in 14-21 days | ||
| 29 | N32601 | NUT, SPRING | 4 | £0.82 | Available in 14-21 days |
