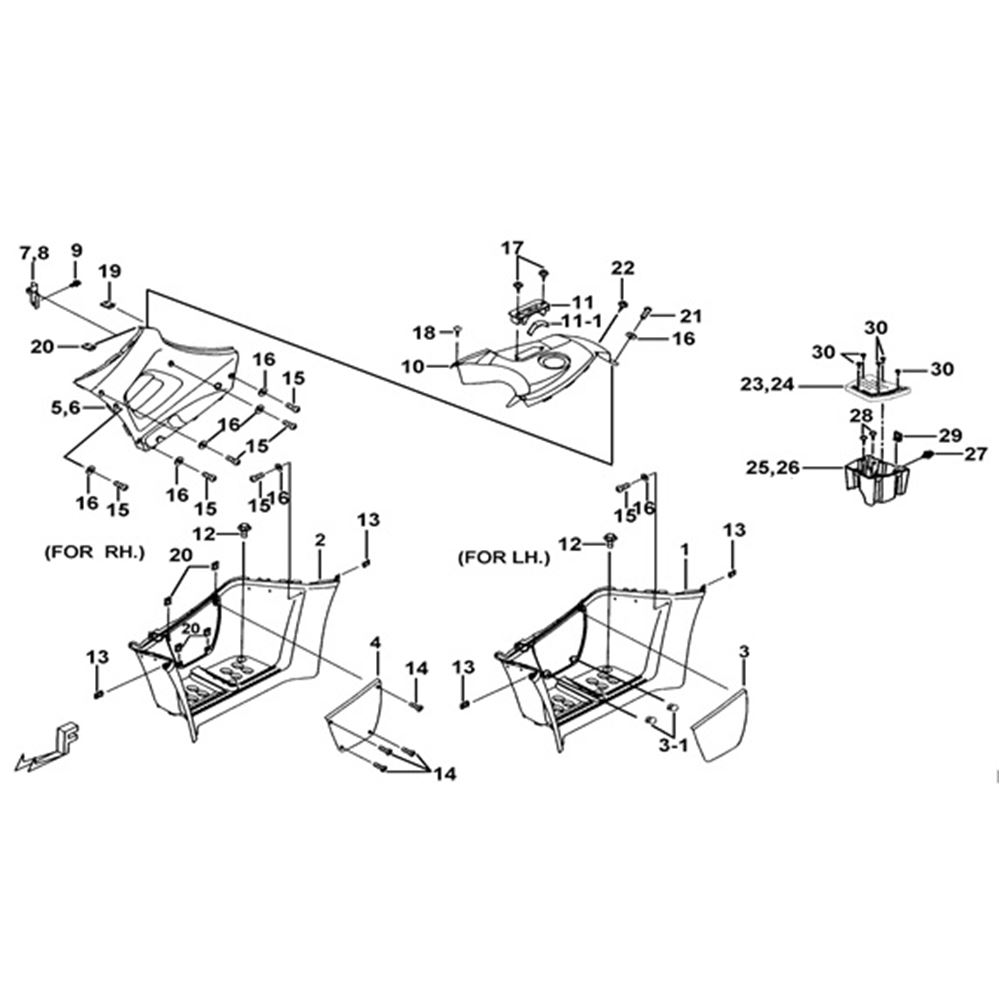

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | 512524 | Foot Board, Lh | 1 | £97.34 | Available in 14-21 days | ||
| 2 | 512525 | Foot Board, Rh | 1 | £97.34 | In Stock | ||
| 02A | 512571 | Foot Board, Rh | 1 | £100.13 | Available in 14-21 days | ||
| 3 | 512544A | Cover Comp, Oil Level Checking | 1 | £16.03 | Available in 14-21 days | ||
| 03-1 | 512543 | RUBBER PLUG | 2 | £1.25 | In Stock | ||
| 4 | 512512 | Oil Filler Cover, Rh | 1 | £21.55 | In Stock | ||
| 5 | 512589B | Side Cover, Lh(Broach) | 1 | £134.40 | Available in 14-21 days | ||
| 6 | 512590 | Side Cover, Rh | 1 | £134.40 | Available in 14-21 days | ||
| 7 | 512526 | Brkt., Side Cover, Lh | 1 | £2.50 | Available in 14-21 days | ||
| 8 | 512527 | Brkt., Side Cover, Rh | 1 | £2.50 | Available in 14-21 days | ||
| 9 | GA556SC01 | BOLT, FLANGE M6X1.0X12L | 2 | £0.29 | In Stock | ||
| 10 | 512505 | Fuel Tank Cover, Upper | 1 | £134.40 | Available in 14-21 days | ||
| 11 | 512506 | Gear Change Indicator Support | 1 | £4.99 | In Stock | ||
| 11-1 | 515124 | Protector | 1 | £3.07 | Available in 14-21 days | ||
| 12 | S25602 | BOLT M6X16L | 6 | £0.77 | In Stock | ||
| 13 | N32501 | NUT, SPRING M5 | 4 | £0.77 | In Stock | ||
| 14 | S51404 | Screw Tapping M4X12 | 4 | £0.29 | In Stock | ||
| 15 | S72605 | BOLT, HEX HEAD M6X16 (Silver White) | 22 | £0.91 | Available in 14-21 days | ||
| 16 | GA555WS02 | WASHER 6X16X1.5 | 24 | £0.19 | Available in 14-21 days | ||
| 17 | S50501 | SCREW, OVAL HEAD M5X12L | 2 | £0.38 | In Stock | ||
| 18 | S50509 | SCREW, TAPPING M5X16 | 2 | £0.82 | In Stock | ||
| 20 | GA552NT01 | NUT, SPRING M4 | 6 | £0.38 | In Stock | ||
| 21 | S72603 | Bolt, Hex Head M6X12 | 2 | £1.15 | Available in 14-21 days | ||
| 22 | S50407 | Screw, Tapping M4X12 | 2 | £0.29 | Available in 14-21 days | ||
| 23 | 512517 | Lh. Foot, Rest(Upper) | 1 | £7.44 | Available in 14-21 days | ||
| 24 | 512519 | Rh. Foot, Rest(Upper) | 1 | £7.44 | Available in 14-21 days | ||
| 25 | 512518 | Lh. Foot, Rest(Below) | 1 | £10.42 | Available in 14-21 days | ||
| 26 | 512520 | Rh. Foot, Rest(Below) | 1 | £10.42 | Available in 14-21 days | ||
| 27 | S07601 | BOLT, FLANGE M6X16 (Dark Green) | 4 | £0.82 | In Stock | ||
| 28 | S50506 | Screw, Tapping | 4 | £0.29 | Available in 14-21 days | ||
| 19 | N32601 | NUT, SPRING | 2 | £0.77 | Available in 14-21 days | ||
| 29 | N32601 | NUT, SPRING | 4 | £0.77 | Available in 14-21 days | ||
| 30 | S50401 | SCREW TAPPING M4X12 | 10 | £0.29 | In Stock |
