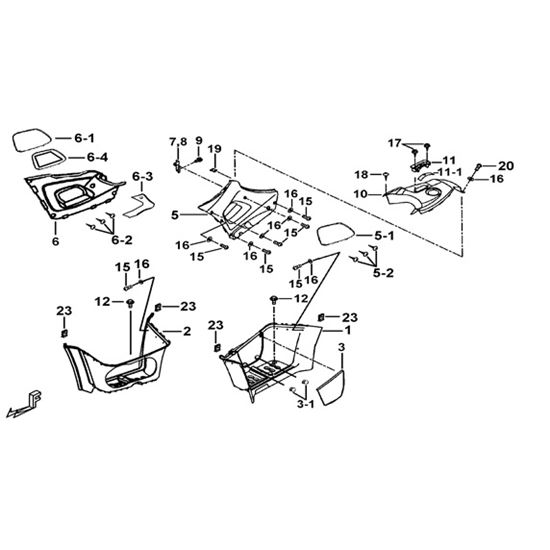

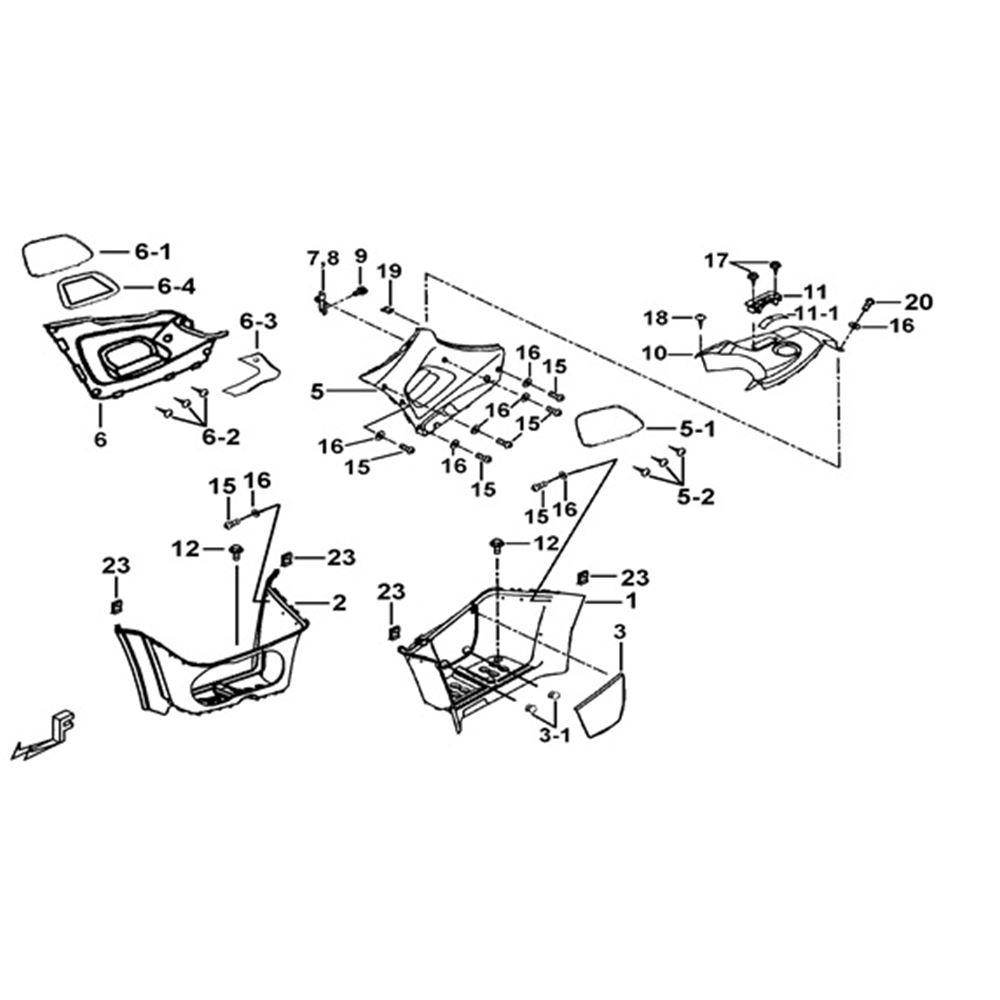

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | 512524E | Foot Board, Lh | 1 | £97.34 | Available in 14-21 days | ||
| 2 | 512571E | Foot Board, Rh | 1 | £100.13 | Available in 14-21 days | ||
| 3 | 512544A | COVER COMP., OIL LEVEL CHECKING | 1 | £16.85 | Available in 14-21 days | ||
| 03-1 | 512543 | RUBBER PLUG | 2 | £1.30 | In Stock | ||
| 5 | 512589E | Side Cover Comp, Lh | 1 | £134.40 | Available in 14-21 days | ||
| 05-1 | 512573 | Cover Comp. (Lh) | 1 | £27.79 | Available in 14-21 days | ||
| 05-2 | S50402 | SCREW,TAPPING M4X10 | 3 | £0.29 | In Stock | ||
| 6 | 512590E | Side Cover Comp, Rh | 1 | £134.40 | Available in 14-21 days | ||
| 06-1 | 512574 | Cover Comp. (Rh) | 1 | £27.79 | Available in 14-21 days | ||
| 06-2 | S50402 | SCREW,TAPPING M4X10 | 3 | £0.29 | In Stock | ||
| 06-3 | 512538 | Heat Insulation | 1 | £42.24 | Available in 14-21 days | ||
| 06-4 | 512575 | Isolator | 1 | £7.97 | Available in 14-21 days | ||
| 7 | 512526 | Brkt., Side Cover, Lh | 1 | £2.50 | Available in 14-21 days | ||
| 8 | 512527 | Brkt., Side Cover, Rh | 1 | £2.50 | Available in 14-21 days | ||
| 9 | GA556SC01 | BOLT, FLANGE M6X1.0X12L | 2 | £0.29 | Available in 14-21 days | ||
| 10 | 512505 | FUEL TANK COVER, UPPER | 1 | £161.28 | Available in 14-21 days | ||
| 11 | 512535 | Gear Change Indicator Support | 1 | £8.69 | In Stock | ||
| 11-1 | 515124 | Protector | 1 | £3.07 | Available in 14-21 days | ||
| 12 | S25602 | BOLT M6X16L | 6 | £0.82 | Available in 14-21 days | ||
| 15 | S72605 | BOLT, HEX HEAD M6X16 (Silver White) | 22 | £0.96 | Available in 14-21 days | ||
| 16 | GA555WS02 | WASHER 6X16X1.5 | 24 | £0.19 | Available in 14-21 days | ||
| 17 | S50501 | SCREW, OVAL HEAD M5X12L | 2 | £0.43 | In Stock | ||
| 18 | S50509 | SCREW, TAPPING M5X16 | 2 | £0.86 | In Stock | ||
| 19 | N32601 | NUT, SPRING | 2 | £0.82 | Available in 14-21 days | ||
| 20 | S72603 | BOLT, HEX HEAD M6X12 | 2 | £1.25 | Available in 14-21 days | ||
| 23 | N32501 | NUT, SPRING M5 | 4 | £0.82 | In Stock |
