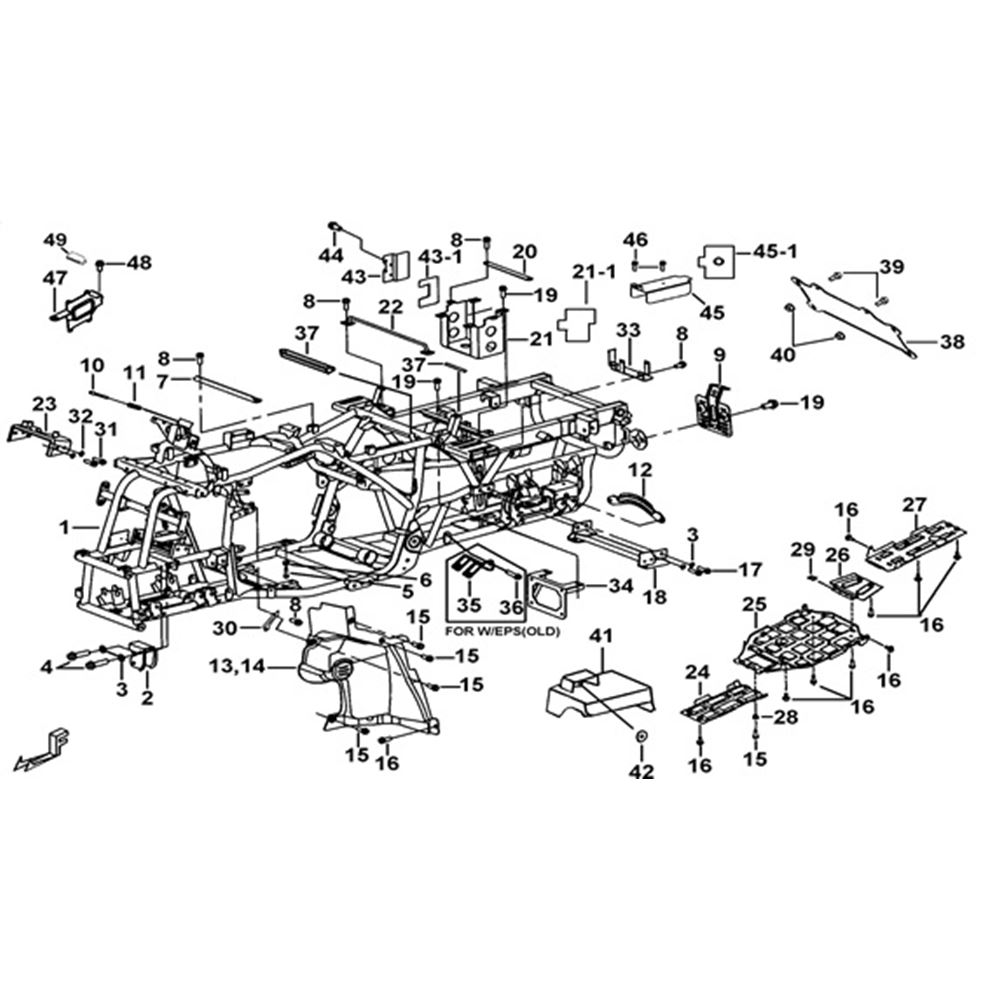

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 01 | 511361 | Main Frame | 1 | £918.00 | Available in 14-21 days | ||
| 02 | 511992 | BRACKET | 1 | £15.22 | Available in 14-21 days | ||
| 03 | GA556WS06 | WASHER, SPRING 10X18X2.5 | 6 | £0.29 | In Stock | ||
| 04 | S20017 | SH. FLANGE BOLT M10X60L | 2 | £1.92 | In Stock | ||
| 05 | S20004 | BOLT,FLANGE M10X30 | 1 | £0.86 | In Stock | ||
| 06 | GA501NT01 | NUT, FLANGE M10 | 1 | £0.38 | In Stock | ||
| 07 | 511950 | SEAT STEADY, FRONT | 1 | £7.92 | Available in 14-21 days | ||
| 08 | GA555SC05 | BOLT, OUTLET M6X1.0X16L | 9 | £0.29 | In Stock | ||
| 09 | 511991 | BRACKET ASSY., NUMBER-PLATE | 1 | £26.78 | Available in 14-21 days | ||
| 10 | 511953 | PIN, STEERING LOCK | 1 | £7.68 | Available in 14-21 days | ||
| 11 | 511946 | SPRING, STEERING LOCK | 1 | £0.91 | Available in 14-21 days | ||
| 12 | 511995 | Enhancing Plate | 1 | £13.01 | In Stock | ||
| 13 | 511301 | FRONT INTERNAL FENDER, LH. | 1 | £34.85 | Available in 14-21 days | ||
| 14 | 511994 | FRONT INTERNAL FENDER, RH. | 1 | £44.26 | Available in 14-21 days | ||
| 15 | S07601 | BOLT, FLANGE M6X16 (Dark Green) | 10 | £0.82 | In Stock | ||
| 16 | S25602 | BOLT M6X16L | 20 | £0.77 | In Stock | ||
| 17 | S21008 | BOLT M10X20 | 4 | £2.02 | In Stock | ||
| 18 | 511990 | BRACKET | 1 | £62.45 | Available in 14-21 days | ||
| 19 | S21809 | BOLT M8X1.25X18L | 6 | £0.67 | In Stock | ||
| 20 | 514974 | Battery Fixing Bracket | 1 | £5.52 | Available in 14-21 days | ||
| 21 | 514972A | Battery Bracket | 1 | £45.26 | Available in 14-21 days | ||
| 21-1 | 511388 | Heat Insulation | 1 | £7.01 | Available in 14-21 days | ||
| 22 | 514967 | Bracket, Supporting Rear Body Cover | 1 | £14.83 | Available in 14-21 days | ||
| 23 | 511369 | BRACKET, EPS | 1 | £45.79 | Available in 14-21 days | ||
| 24 | 511394 | PROTECTOR, FRONT | 1 | £17.81 | In Stock | ||
| 25 | 519807 | PROTECTOR, REAR(PLASTIC) | 1 | £37.63 | Available in 14-21 days | ||
| 26 | 514918 | Protector Cover (Small) | 1 | £19.20 | Available in 14-21 days | ||
| 27 | 511986 | Protector Cover | 1 | £19.49 | In Stock | ||
| 28 | GA554BS02 | SPACER 6.5*5.8 | 2 | £0.29 | In Stock | ||
| 29 | N32601 | NUT, SPRING | 2 | £0.77 | Available in 14-21 days | ||
| 30 | 517969 | FRONT INTERNAL FENDER | 1 | £6.43 | Available in 14-21 days | ||
| 31 | S20814 | BOLT, FLANGE M8X1.25X20L | 4 | £1.06 | In Stock | ||
| 32 | GA556WS04 | SPRING WASHER 8X15X2.0 | 4 | £0.29 | Available in 14-21 days | ||
| 33 | 514985 | Fuse Box Bracket | 1 | £12.24 | Available in 14-21 days | ||
| 34 | 514984 | Bracket, Ecu | 1 | £28.13 | Available in 14-21 days | ||
| 35 | 516049 | Bracket (W/Eps) - Before 003566 | 1 | £17.47 | Available in 14-21 days | ||
| 36 | S20817 | BOLT, FLANGE M8X16 | 1 | £0.91 | In Stock | ||
| 37 | 453016 | Ornamental | 1 | £16.03 | Available in 14-21 days | ||
| 38 | 515949 | Extension Bracket, Number Plate | 1 | £13.87 | Available in 14-21 days | ||
| 39 | GA555SC05 | BOLT, OUTLET M6X1.0X16L | 2 | £0.29 | In Stock | ||
| 40 | N10604 | NUT, SELFLOCK M6 | 2 | £1.54 | Available in 14-21 days | ||
| 41 | 517943 | Cover, Duct Rear | 1 | £13.54 | Available in 14-21 days | ||
| 42 | GA555WS02 | WASHER 6X16X1.5 | 1 | £0.19 | Available in 14-21 days | ||
| 43 | 511368A | PROTECTOR(INCLUDING HEAT INSULATION) | 1 | £16.37 | Available in 14-21 days | ||
| 43-1 | 511371 | HEAT INSULATION | 1 | £2.59 | Available in 14-21 days | ||
| 44 | GA555SC05 | BOLT, OUTLET M6X1.0X16L | 1 | £0.29 | In Stock | ||
| 45 | 511386A | Protector Cover | 1 | £31.78 | Available in 14-21 days | ||
| 45-1 | 511387 | Heat Insulation | 1 | £10.94 | Available in 14-21 days | ||
| 46 | S21605 | BOLT, FLANGE M6X10 | 2 | £0.24 | In Stock | ||
| 47 | 519802 | BRACKET - Before 012354 | 1 | £37.49 | Available in 14-21 days | ||
| 48 | S21809 | BOLT M8X1.25X18L | 1 | £0.67 | In Stock | ||
| 49 | 926897 | BUSH, RUBBER - Before 012354 | 1 | £2.59 | Available in 14-21 days |
