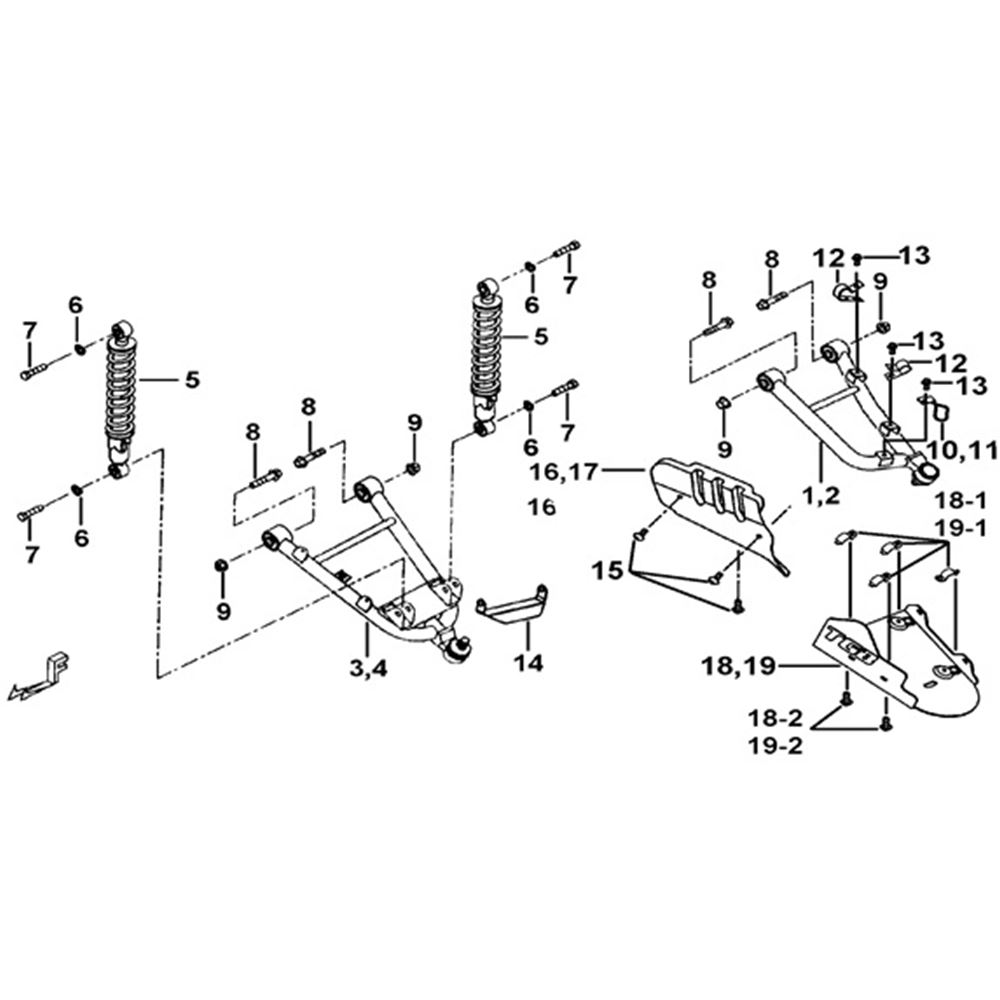

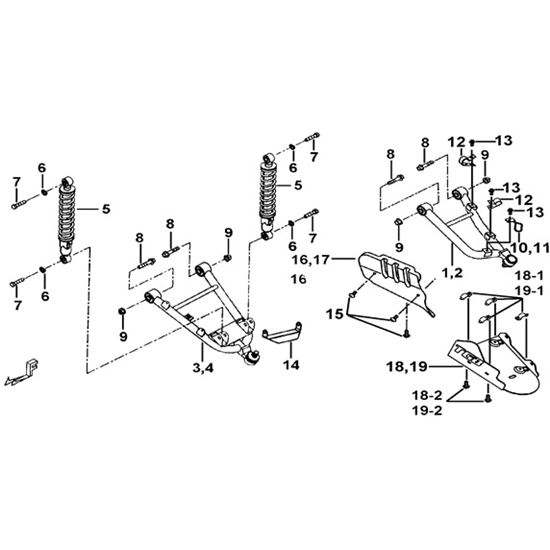

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 01 | 513360 | Arm Set, Upper, Lh | 1 | £179.18 | Available in 14-21 days | ||
| 02 | 513361 | Arm Set, Upper, Rh | 1 | £182.69 | Available in 14-21 days | ||
| 03 | 513364 | Arm Set, Lower, Lh | 1 | £173.18 | In Stock | ||
| 04 | 513365 | Arm Set, Lower, Rh | 1 | £173.18 | Available in 14-21 days | ||
| 05 | 513389YE | Shock Absorber Assy, Front (Yellow) | 4 | £221.47 | Available in 14-21 days | ||
| 05A | 513389RD | Shock Absorber Assy, Front (Red) | 4 | £221.47 | Available in 14-21 days | ||
| 06 | GA556WS06 | WASHER, SPRING 10X18X2.5 | 8 | £0.29 | In Stock | ||
| 07 | GA557SC01 | Bolt, Flange M10X43 | 8 | £1.54 | Available in 14-21 days | ||
| 08 | S20017 | SH. FLANGE BOLT M10X60L | 8 | £1.92 | In Stock | ||
| 09 | GA551NT01 | NUT, SELFLOCK M10X10 | 8 | £1.25 | In Stock | ||
| 10 | 513354 | Brkt Hose, Lh | 1 | £7.49 | Available in 14-21 days | ||
| 11 | 513355 | Brkt Hose, Rh | 1 | £7.49 | Available in 14-21 days | ||
| 12 | 413417 | Clamp | 4 | £19.20 | Available in 14-21 days | ||
| 13 | S21605 | BOLT, FLANGE M6X10 | 6 | £0.24 | In Stock | ||
| 14 | 511951 | STEEL PROTECTOR | 1 | £7.68 | Available in 14-21 days | ||
| 15 | S07601 | BOLT, FLANGE M6X16 (Dark Green) | 6 | £0.82 | In Stock | ||
| 16 | 516306 | PROTECTOR, COVER(LH.) | 1 | £7.01 | In Stock | ||
| 17 | 516307 | PROTECTOR, COVER(RH.) | 1 | £7.01 | In Stock | ||
| 18 | 516329B | Bottom Plate Comp. (Lh) | 1 | £129.65 | Available in 14-21 days | ||
| 19 | 516330B | Bottom Plate Comp. (Rh) | 1 | £129.65 | Available in 14-21 days | ||
| 18-1 | 513363 | ANCHOR PLATE | 4 | £4.03 | Available in 14-21 days | ||
| 19-1 | 513363 | ANCHOR PLATE | 4 | £4.03 | Available in 14-21 days | ||
| 18-2 | GA555SC05 | BOLT, OUTLET M6X1.0X16L | 4 | £0.29 | In Stock | ||
| 19-2 | GA555SC05 | BOLT, OUTLET M6X1.0X16L | 4 | £0.29 | In Stock |
