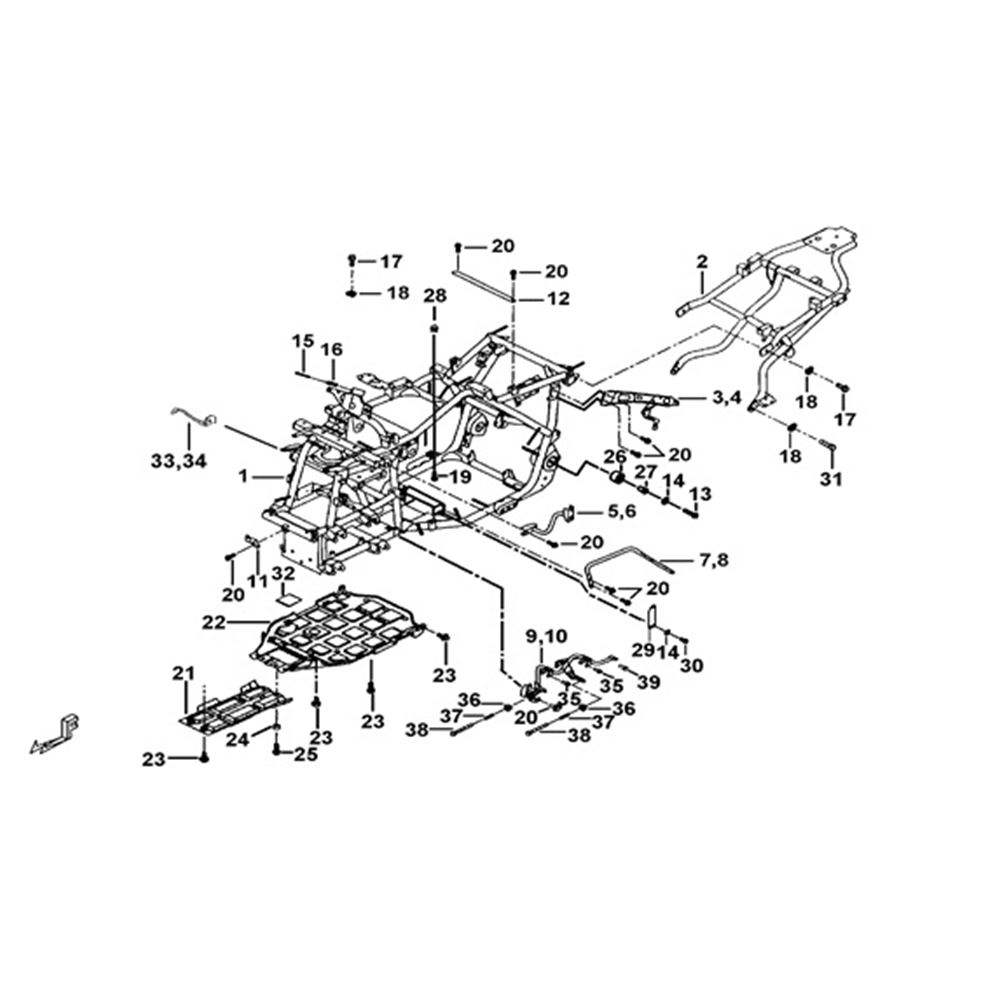

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | 511976 | Main Frame | 1 | £477.36 | Available in 14-21 days | ||
| 2 | 511988 | Rear Frame - Before 012595 | 1 | £163.56 | Available in 14-21 days | ||
| 3 | 511959 | BRACKET LH., REAR BODY COVER | 1 | £31.10 | Available in 14-21 days | ||
| 4 | 511960 | BRACKET RH., REAR BODY COVER - Before 012354 | 1 | £31.10 | Available in 14-21 days | ||
| 5 | 511968 | Bracket, Middle Lh, Front Body Cover | 1 | £33.41 | Available in 14-21 days | ||
| 6 | 511969 | Bracket, Middle Rh, Front Body Cover | 1 | £33.41 | Available in 14-21 days | ||
| 7 | 511957 | Bracket Rear Lh, Front Body Cover | 1 | £21.17 | Available in 14-21 days | ||
| 8 | 511958 | Bracket Rear Rh, Front Body Cover | 1 | £21.17 | Available in 14-21 days | ||
| 9 | 511955 | Bracket Front Lh, Front Body Cover - Before 014230 | 1 | £24.48 | Available in 14-21 days | ||
| 09A | 514938 | BRACKET FRONT LH., FRONT BODY COVER | 1 | £72.58 | Available in 14-21 days | ||
| 10 | 511956 | Bracket Front Rh, Front Body Cover - Before 014230 | 1 | £24.48 | Available in 14-21 days | ||
| 10A | 514939 | BRACKET FRONT RH., FRONT BODY COVER | 1 | £72.58 | Available in 14-21 days | ||
| 11 | 511963 | BRACKET | 1 | £4.37 | Available in 14-21 days | ||
| 12 | 511950 | SEAT STEADY, FRONT | 1 | £8.30 | Available in 14-21 days | ||
| 13 | S20805 | BOLT, FLANGE M8X42 | 2 | £1.06 | Available in 14-21 days | ||
| 14 | GA556WS04 | SPRING WASHER 8X15X2.0 | 4 | £0.29 | Available in 14-21 days | ||
| 15 | 511977 | PIN, STEERING LOCK | 1 | £8.59 | Available in 14-21 days | ||
| 16 | 511981 | SPRING, STEERING LOCK | 1 | £0.82 | Available in 14-21 days | ||
| 17 | S21007 | BOLT M10X1.25X20 | 2 | £2.11 | Available in 14-21 days | ||
| 18 | GA556WS06 | WASHER, SPRING 10X18X2.5 | 4 | £0.29 | In Stock | ||
| 19 | S20004 | BOLT, FLANGE M10X30 | 1 | £0.86 | In Stock | ||
| 20 | GA555SC05 | BOLT, M6X1.0X16L FOR ABS | 15 | £0.29 | In Stock | ||
| 21 | 511925A | Protector, Front(Plastic) | 1 | £19.73 | In Stock | ||
| 22 | 519807 | PROTECTOR, REAR(PLASTIC) | 1 | £39.50 | Available in 14-21 days | ||
| 23 | S25602 | BOLT M6X16L | 6 | £0.82 | Available in 14-21 days | ||
| 24 | GA554BS02 | SPACER 6.5*5.8 | 2 | £0.29 | In Stock | ||
| 25 | S07601 | BOLT, FLANGE M6X16 (Dark Green) | 2 | £0.86 | In Stock | ||
| 26 | 511930 | Tensioner, Chain | 2 | £6.00 | In Stock | ||
| 27 | 511931 | Spacer | 2 | £2.78 | In Stock | ||
| 28 | GA501NT01 | NUT, FLANGE M10 | 1 | £0.43 | In Stock | ||
| 29 | 513797 | Bracket, Engine, Front | 2 | £10.46 | Available in 14-21 days | ||
| 30 | S20814 | BOLT, FLANGE M8X1.25X20L | 2 | £1.06 | In Stock | ||
| 31 | S21011 | Bolt,Flange M10X28L | 2 | £2.88 | Available in 14-21 days | ||
| 32 | GF514TH02 | CUSHION | 1 | £0.67 | Available in 14-21 days | ||
| 33 | 512477 | BRACKET LH., FIRST HOUSING | 1 | £15.55 | Available in 14-21 days | ||
| 34 | 512478 | BRACKET RH., FIRST HOUSING | 1 | £15.55 | Available in 14-21 days | ||
| 35 | S99617 | BOLT, FLANGE M6X42 | 1 | £2.50 | Available in 14-21 days | ||
| 36 | N04501 | NUT, PLASTIC M5 | 4 | £2.11 | Available in 14-21 days | ||
| 37 | 511725 | SPRING | 4 | £0.86 | Available in 14-21 days | ||
| 38 | S46505 | BOLT | 4 | £0.48 | Available in 14-21 days | ||
| 39 | S50507 | SCREW, TAPPING M5X12 | 1 | £0.29 | Available in 14-21 days |
