| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|

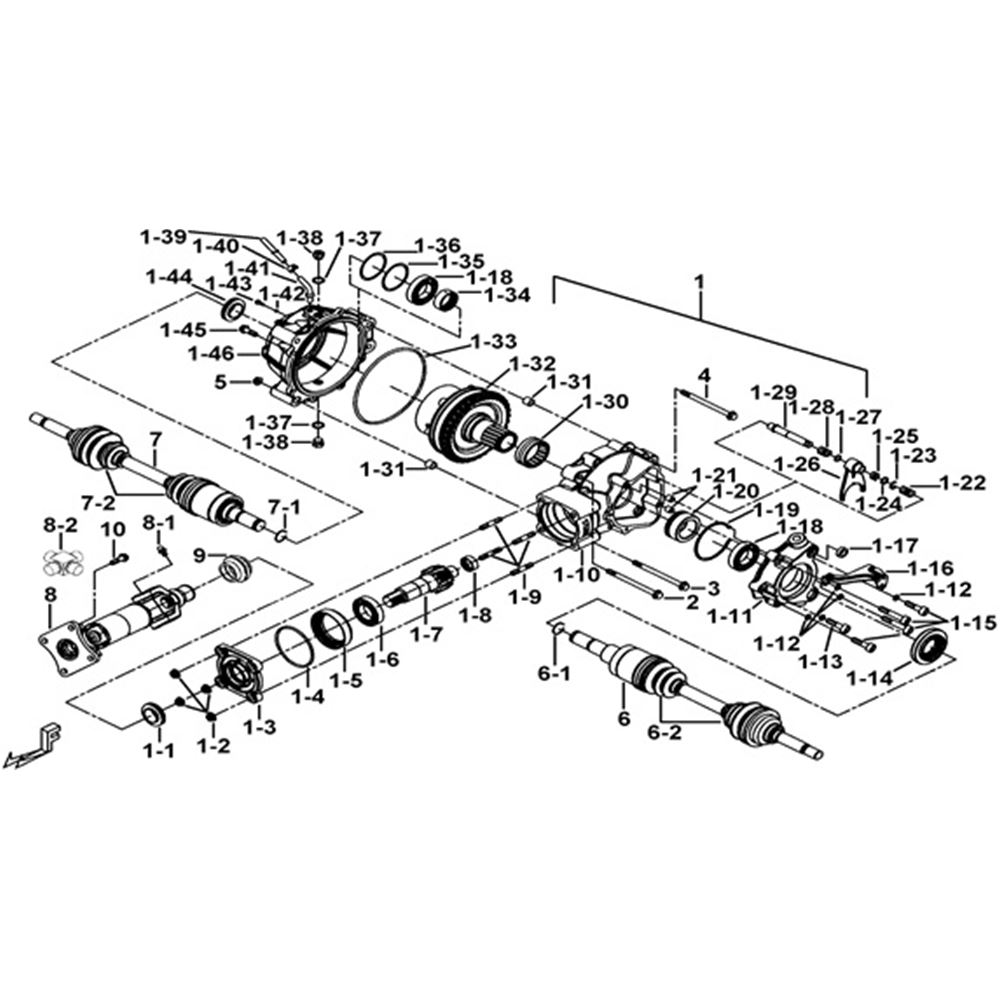

| 01 | 910402 | REAR DIFFERENTIAL ASSY.(LOCK) | 1 | £768.96 | In Stock | ||
| 01-1 | 910586 | OIL SEAL | 1 | £14.98 | Available in 14-21 days | ||
| 01-10 | 910200 | GEAR BOX, REAR DIFFERENTIAL | 1 | £150.34 | Available in 14-21 days | ||
| 01-11 | 910521 | HOUSING, FRONT DRIVE | 1 | £68.74 | Available in 14-21 days | ||
| 01-12 | GA556WS04 | SPRING WASHER 8X15X2.0 | 5 | £0.29 | Available in 14-21 days | ||
| 01-13 | S70810 | SCREW, SOCKET HEAD M8X1.25X36L | 1 | £1.20 | Available in 14-21 days | ||
| 01-14 | 910408 | OIL SEAL | 1 | £12.10 | In Stock | ||
| 01-15 | S70809 | SCREW, SOCKET HEAD M8X1.25X40L | 4 | £1.39 | Available in 14-21 days | ||
| 01-16 | 910204 | STEEL ROPE BRACKET | 1 | £9.98 | Available in 14-21 days | ||
| 01-17 | 924381 | OIL SEAL 12X20X5 | 1 | £1.78 | Available in 14-21 days | ||
| 01-18 | 910502 | BEARING(6209) | 2 | £53.76 | Available in 14-21 days | ||
| 01-19 | R01803 | ?C?CLIP | 1 | £9.22 | Available in 14-21 days | ||
| 01-2 | N10001 | NUT | 4 | £1.68 | In Stock | ||
| 01-20 | 910182 | LOCK SLEEVE | 1 | £26.11 | Available in 14-21 days | ||
| 01-21 | P40102 | PIN, DOWEL 8.5X11X5.8L | 2 | £3.26 | Available in 14-21 days | ||
| 01-22 | 910492 | SPRING | 1 | £4.03 | Available in 14-21 days | ||
| 01-23 | R10702 | ?E? RING | 1 | £0.14 | In Stock | ||
| 01-24 | W99218 | WASHER | 1 | £0.29 | In Stock | ||
| 01-25 | 925353 | SPRING | 1 | £1.97 | Available in 14-21 days | ||
| 01-26 | 910206 | FORK, SHIFT | 1 | £48.00 | Available in 14-21 days | ||
| 01-27 | 924971 | WASHER 1t | 1 | £1.44 | Available in 14-21 days | ||
| 01-28 | 924970 | SPRING, SHIFT | 1 | £1.30 | In Stock | ||
| 01-29 | 910181 | ROD, SHIFT | 1 | £20.74 | Available in 14-21 days | ||
| 01-3 | 910203 | HOUSING, REAR FINAL DRIVE | 1 | £28.66 | Available in 14-21 days | ||
| 01-30 | 910498 | BEARING | 1 | £88.32 | Available in 14-21 days | ||
| 01-31 | P40301 | PIN, DOWEL | 2 | £0.91 | Available in 14-21 days | ||
| 01-32 | 910581 | SLIP LIMITED GEAR ASSY | 1 | £442.80 | Available in 14-21 days | ||
| 01-33 | 910208 | ?O?RING | 1 | £4.61 | In Stock | ||
| 01-34 | 910500 | BEARING | 1 | £24.62 | Available in 14-21 days | ||
| 01-35 | W99832 | SHIM 0.2t | 1 | £4.99 | Available in 14-21 days | ||
| 01-36 | W99833 | SHIM 0.3t | 1 | £5.18 | Available in 14-21 days | ||
| 01-37 | W99639 | WASHER 16mm | 2 | £0.58 | In Stock | ||
| 01-38 | 924339 | SCREW | 2 | £6.24 | In Stock | ||
| 01-39 | 910536 | PIPE, BREATHER | 1 | £5.38 | Available in 14-21 days | ||
| 01-4 | 910209 | ?O?RING | 1 | £4.80 | Available in 14-21 days | ||
| 01-40 | R40002 | CLIP | 1 | £3.84 | In Stock | ||
| 01-41 | 924261 | EXHAUST PIPE, BREATHE | 1 | £7.44 | In Stock | ||
| 01-42 | W99621 | WASHER 6.5X13.2X1.3t | 1 | £0.67 | In Stock | ||
| 01-43 | S21605 | BOLT, FLANGE M6X10 | 1 | £0.24 | In Stock | ||
| 01-44 | 925010 | OIL SEAL | 1 | £11.23 | Available in 14-21 days | ||
| 01-45 | S21813 | SCREW | 8 | £1.25 | Available in 14-21 days | ||
| 01-46 | 910199 | CASE, REAR FINAL DRIVEN | 1 | £111.36 | Available in 14-21 days | ||
| 01-5 | 910212 | RING SNAP | 1 | £32.26 | Available in 14-21 days | ||
| 01-6 | 910501 | BEARING(63/32) | 1 | £82.94 | Available in 14-21 days | ||
| 01-7 | 910213 | SHAFT, REAR FINAL DRIVE | 1 | £187.78 | Available in 14-21 days | ||
| 01-8 | 910499 | BEARING | 1 | £30.72 | Available in 14-21 days | ||
| 01-9 | S95003 | STUD | 4 | £2.02 | In Stock | ||
| 02 | S20019 | BOLT, FLANGE M10X110L | 1 | £3.07 | In Stock | ||
| 03 | S20055 | BOLT, FLANGE | 1 | £5.90 | Available in 14-21 days | ||
| 04 | S20057 | BOLT, FLANGE | 2 | £5.90 | Available in 14-21 days | ||
| 05 | GA551NT01 | NUT, SELFLOCK M10X10 | 4 | £1.25 | In Stock | ||
| 06 | 911119Y | REAR TRANSMISSION SHAFT(LH) | 1 | £254.40 | Available in 14-21 days | ||
| 06-1 | 925250 | ?C ? CLIP | 1 | £1.92 | In Stock | ||
| 06-2 | 910604Y | BOOT SET, TRANSMISSION SHAFT | 1 | £88.32 | In Stock | ||
| 07 | 911120Y | REAR TRANSMISSION SHAFT(RH) | 1 | £239.28 | Available in 14-21 days | ||
| 07-1 | 925250 | ?C ? CLIP | 1 | £1.92 | In Stock | ||
| 07-2 | 910604Y | BOOT SET, TRANSMISSION SHAFT | 1 | £88.32 | In Stock | ||
| 08 | 927155 | UNIVERSAL JOINT ASSY | 1 | £238.80 | Available in 14-21 days | ||
| 08-1 | 925494 | GREASE NIPPLE | 1 | £1.97 | In Stock | ||
| 08-2 | 911376 | REPAIR KIT, CROSS JOINTER 24 | 1 | £112.99 | Available in 14-21 days | ||
| 09 | 910662 | DUST GUARD COVER | 1 | £6.77 | Available in 14-21 days | ||
| 10 | S21007 | BOLT M10X1.25X20 | 4 | £2.02 | Available in 14-21 days |
