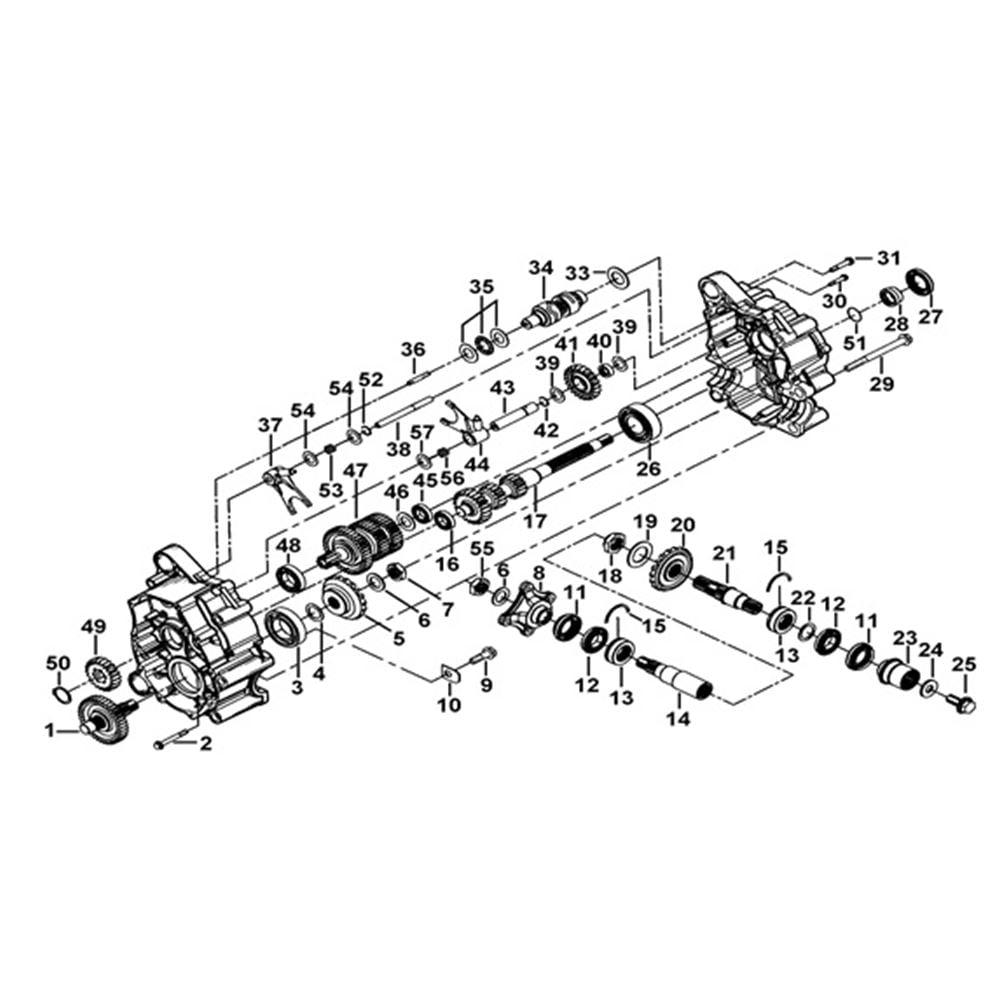

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 01 | 910144 | OUTPUT SECONDARY SHAFT ASSY.(34T) | 1 | £142.08 | Available in 14-21 days | ||
| 02 | S24621 | BOLT, FLANGE | 1 | £0.77 | Available in 14-21 days | ||
| 03 | 924066 | BEARING 35X72X17 | 1 | £46.80 | In Stock | ||
| 04 | W99413 | SHIM 24X48X1T | 1 | £2.35 | In Stock | ||
| 04A | W99414 | SHIM 24X48X0.5T | 1 | £2.35 | In Stock | ||
| 04B | W99415 | SHIM 24X48X0.3T | 1 | £2.35 | In Stock | ||
| 04C | W99417 | SHIM 24X48X0.05T | 1 | £2.35 | In Stock | ||
| 05 | 910036 | BEVEL GEAR, 15 TEETH | 1 | £65.33 | Available in 14-21 days | ||
| 06 | W99304 | SHIM | 2 | £0.86 | In Stock | ||
| 07 | N33811 | NUT, HEX HEAD M18 | 1 | £12.91 | Available in 14-21 days | ||
| 08 | 910366 | CONNECTING SHAFT SEAT | 1 | £85.49 | Available in 14-21 days | ||
| 09 | S24604 | BOLT, FLANGE M6X12 | 2 | £0.67 | Available in 14-21 days | ||
| 10 | 924185 | CHUCK, BEARING | 2 | £0.67 | In Stock | ||
| 11 | 924229 | OIL SEAL, DRIVEN SFT, FR | 2 | £4.70 | Available in 14-21 days | ||
| 12 | 924228 | BRG. SEC DRIVEN OUTPUT SFT FR | 2 | £33.17 | Available in 14-21 days | ||
| 13 | 924214 | BRG. SEC DRIVEN GEAR, MDL (30X50X17) | 2 | £46.85 | In Stock | ||
| 14 | 910362 | REAR DRIVE SHAFT | 1 | £108.86 | Available in 14-21 days | ||
| 15 | 924217 | RING, SEC DRIVEN BRG, MDL | 2 | £1.10 | In Stock | ||
| 16 | 927315 | BEARING | 1 | £52.42 | Available in 14-21 days | ||
| 17 | 911207 | COUNTER SHAFT | 1 | £150.78 | Available in 14-21 days | ||
| 18 | N33603 | NUT, HEX HEAD M26X16 | 1 | £9.84 | Available in 14-21 days | ||
| 19 | W99640 | WASHER 26X42X1t | 1 | £1.87 | Available in 14-21 days | ||
| 20 | 910374 | BEVEL GEAR, 19 TEETH | 1 | £70.94 | Available in 14-21 days | ||
| 21 | 910373 | SECONDARY DRIVE SHAFT | 1 | £82.56 | Available in 14-21 days | ||
| 22 | W99509 | SHIM, SEC. DRIVEN SHAFT 25X34X0.05t | 1 | £2.11 | In Stock | ||
| 22A | W99510 | SHIM, SEC. DRIVEN SHAFT 25X34X0.1t | 1 | £2.11 | Available in 14-21 days | ||
| 22B | W99511 | SHIM, SEC. DRIVEN SHAFT 25X34X0.3t | 1 | £2.11 | Available in 14-21 days | ||
| 22C | W99512 | SHIM, SEC. DRIVEN SHAFT 25X34X0.5t | 1 | £2.11 | Available in 14-21 days | ||
| 22D | W99517 | SHIM, REVERSE SHAFT | 1 | £2.11 | In Stock | ||
| 23 | 910372 | SOCKET | 1 | £50.40 | Available in 14-21 days | ||
| 24 | W99230 | WASHER | 1 | £1.49 | Available in 14-21 days | ||
| 25 | S20218 | BOLT, FLANGE | 1 | £2.93 | In Stock | ||
| 26 | 910653 | BEARING | 1 | £104.16 | Available in 14-21 days | ||
| 27 | 910652 | OIL SEAL | 1 | £15.31 | In Stock | ||
| 28 | 910633 | SPACER | 1 | £34.27 | Available in 14-21 days | ||
| 29 | S21811 | BOLT, FLANGE M8X1.25X90L | 4 | £2.11 | Available in 14-21 days | ||
| 30 | S24632 | BOLT, FLANGE M6*1*45L | 4 | £0.58 | Available in 14-21 days | ||
| 31 | S20822 | BOLT, FLANGE M8X45 | 1 | £3.22 | Available in 14-21 days | ||
| 33 | W99517 | SHIM, REVERSE SHAFT | 1 | £2.11 | In Stock | ||
| 34 | 910108A | SHIFT DRUM | 1 | £139.10 | Available in 14-21 days | ||
| 35 | 924364 | THRUST BEARING | 1 | £18.72 | Available in 14-21 days | ||
| 36 | 924645 | PIN, DOWEL | 1 | £4.46 | Available in 14-21 days | ||
| 37 | 924237 | FORK | 1 | £35.14 | Available in 14-21 days | ||
| 38 | 910128 | SHIFTING SHFT | 1 | £9.55 | Available in 14-21 days | ||
| 39 | W99709 | WASHER 17X30X1t | 2 | £1.25 | In Stock | ||
| 40 | 924643 | BEARING 17x24x15 | 1 | £27.36 | Available in 14-21 days | ||
| 41 | 910020 | IDLE GEAR, 23 TEETH | 1 | £43.54 | Available in 14-21 days | ||
| 42 | R00501 | �C� CLIP | 1 | £0.34 | Available in 14-21 days | ||
| 43 | 924186 | SHAFT, REVERSE GEAR | 1 | £12.53 | Available in 14-21 days | ||
| 44 | 924636 | FORK, REVERSE GEAR | 1 | £35.95 | In Stock | ||
| 45 | 924184 | BEARING 20X52X15 | 1 | £19.78 | Available in 14-21 days | ||
| 46 | W99012 | WASHER | 1 | £0.67 | In Stock | ||
| 47 | 910568 | GEAR COMP, TRANSMISSION | 1 | £250.74 | Available in 14-21 days | ||
| 48 | 924182 | BEARING 25x52x15 | 1 | £20.83 | Available in 14-21 days | ||
| 49 | 910013 | GEAR, 17 TEETH | 1 | £41.14 | Available in 14-21 days | ||
| 50 | R00206 | � C � CLIP | 1 | £1.06 | In Stock | ||
| 51 | 910637 | ?O? RING | 1 | £2.83 | Available in 14-21 days | ||
| 52 | 924149 | ?C ?RING | 1 | £0.48 | In Stock | ||
| 53 | 924616 | SPRING, RETURN | 1 | £1.58 | In Stock | ||
| 54 | W99015 | WASHER | 2 | £0.43 | In Stock | ||
| 55 | N33001 | NUT, HEX HEAD | 1 | £7.97 | Available in 14-21 days | ||
| 56 | 924699 | SPRING, FORK | 1 | £2.98 | In Stock | ||
| 57 | W99709 | WASHER 17X30X1t | 1 | £1.25 | In Stock |
