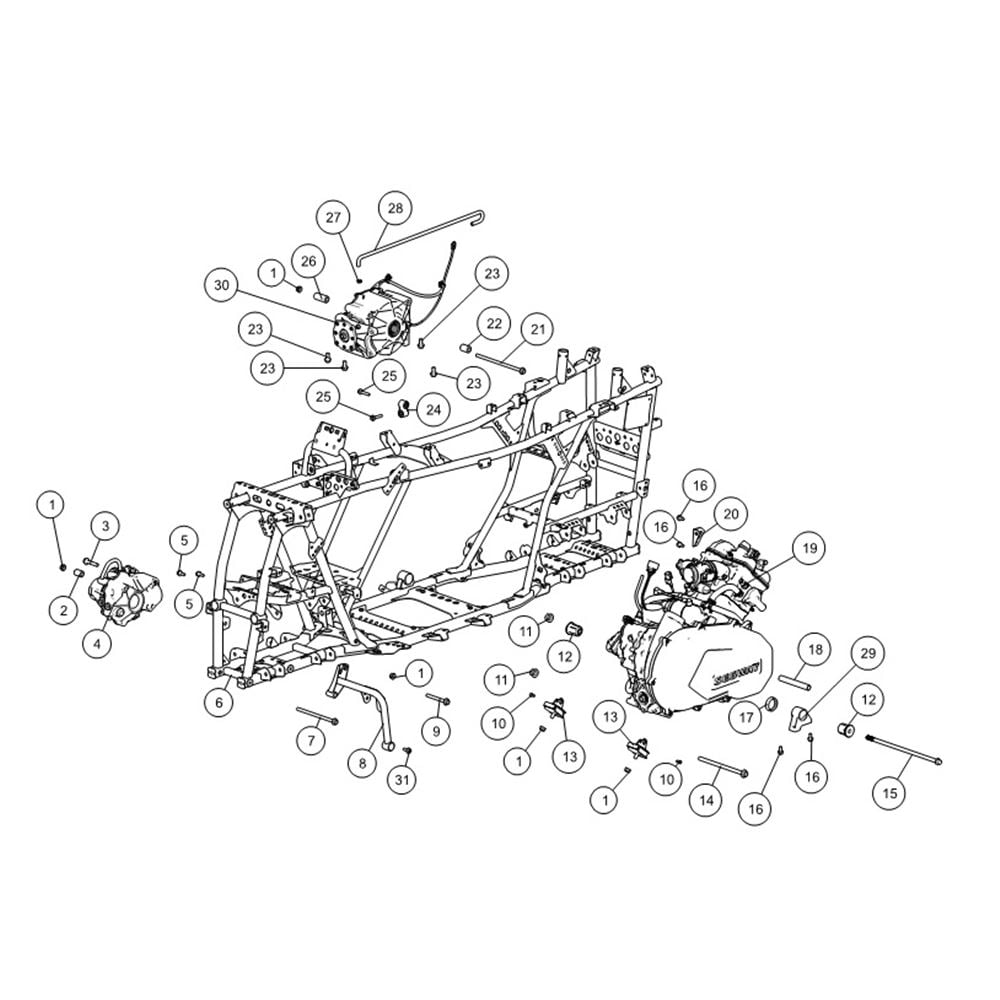

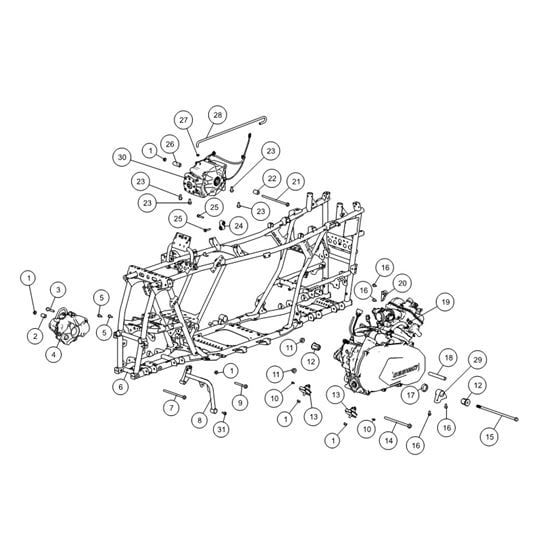

FRAME & ENGINE COMP ATV6 L
FRAME & ENGINE COMP ATV6 L
FRAME & ENGINE COMP ATV6 L

FRAME & ENGINE COMP ATV6 L

Spare Parts » Segway Snarler ATV6 S & L » Frame Parts » FRAME & ENGINE COMP ATV6 L
Image RefPart CodeItem NameFitted QtyPriceOrder QtyStock
1GBT061872001ALL-METALLIC HEXAGON FLANGE NUT M10x1.255£0.29
Available in 14-21 days
2T02000021001FRONT AXLE RIGHT BUSHING1£2.98
Available in 14-21 days
3GBT005789031HEXAGON FLANGE BOLT M10x1.25x501£0.58
Available in 14-21 days
4Q02F00000001FRONT DIFFERENTIAL ASSY1£517.58
Available in 14-21 days
5GBT005789015HEXAGON FLANGE BOLT M8�202£0.19
Available in 14-21 days
6A02B10000008FRAME�WELDING�COMPONENTS?BRUSHLESS,�LONG�VEHICLE?1£1046.78
Available in 14-21 days
6A02B10000010FRAME�WELDING�COMPONENTS?BRUSHED,�LONG�VEHICLE?1£1060.73
Available in 14-21 days
7GBT005789109HEXAGON FLANGE BOLT M10x1.25x1801£2.40
Available in 14-21 days
8A02C13000001FRONT AXLE BRACKET ASSEMBLY1£21.65
Available in 14-21 days
9GBT005789036HEXAGON FLANGE BOLT M10x1.25x901£1.06
Available in 14-21 days
10GBT000701009HEXAGON SOCKET HEAD SCREW M6�122£0.14
Available in 14-21 days
11GBT061872003NUT M12�1.252£0.29
Available in 14-21 days
12A02A10100001ISOLATOR2£6.82
Available in 14-21 days
13A01A10010001ENGINE BUFFER BLOCK2£11.66
Available in 14-21 days
14GBT005789050HEXAGON FLANGE BOLT M12�1.25�2101£2.93
Available in 14-21 days
15A01A10030001ENGINE SHAFT 11£6.48
Available in 14-21 days
16GBT005789014HEXAGON FLANGE BOLT M8�164£0.19
In Stock
17A02A10001001SEAL1£1.01
Available in 14-21 days
18A02C00001001TUBE1£3.94
Available in 14-21 days
19-1E01000000002ENGINE ASSEMBLY(CVTech CVT)1£4689.53
Available in 14-21 days
19-2E01000000005ENGINE ASSEMBLY(CHANGXING CVT)1£3318.96
Available in 14-21 days
20A02C01000001ENGINE HANGING1£0.91
Available in 14-21 days
21GBT005789064HEXAGON FLANGE BOLT M10�1.25�2151£3.22
Available in 14-21 days
22T02000005001REAR AXLE LEFT BUSHING1£2.59
Available in 14-21 days
23GBT005789025HEXAGON FLANGE BOLT M10�1.25�204£0.48
Available in 14-21 days
24U01A30100001HANGING BUFFER SLEEVE1£7.39
In Stock
25GBT005789019HEXAGON FLANGE BOLT M8�402£0.58
Available in 14-21 days
26T02000006001REAR AXLE RIGHT BUSHING1£2.59
Available in 14-21 days
27QCT006211003CLAMP 111£0.24
Available in 14-21 days
28A02A10002001REAR AXLE SNORKEL1£5.14
Available in 14-21 days
29A02C00004001INSTALLATION PIECE1£12.82
Available in 14-21 days
30-1Q02R00000002REAR AXLE ASSEMBLY(no differential,no ABS,four brake)1£528.79
Available in 14-21 days
30-2Q02R00000004REAR AXLE ASSEMBLY(no differential,NO ABS,three brake)1£533.82
Available in 14-21 days
30-3Q01R00000002REAR AXLE ASSEMBLY(with differential and ABS)1£856.39
Available in 14-21 days
30-4Q01R00000004REAR AXLE ASSEMBLY(WITH DIFFERENTIAL,NO ABS1£685.32
Available in 14-21 days
31GBT005789027HEXAGON FLANGE BOLT M12�1.25�301£0.58
Available in 14-21 days
