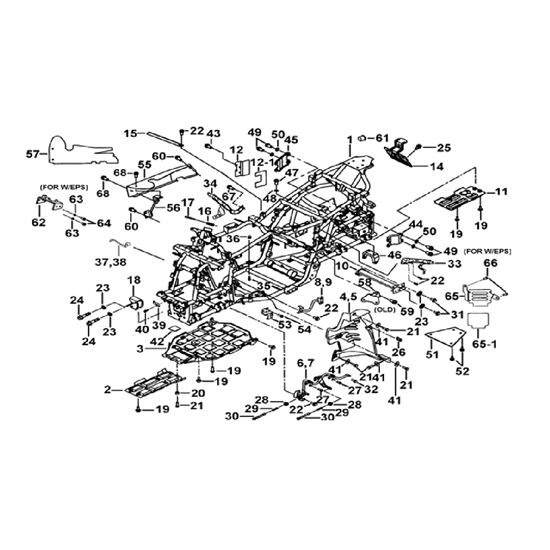

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | 511352 | MAIN FRAME - Before 012354 - Without EPS | 1 | £894.24 | Available in 14-21 days | ||
| 01A | 519840 | MAIN FRAME - After 012355 - Without EPS | 1 | £894.24 | Available in 14-21 days | ||
| 01B | 511365 | MAIN FRAME - Before 012354 - With EPS | 1 | £911.52 | Available in 14-21 days | ||
| 01C | 519841 | MAIN FRAME - After 012355 - With EPS | 1 | £911.52 | Available in 14-21 days | ||
| 2 | 511394 | PROTECTOR, FRONT | 1 | £18.72 | In Stock | ||
| 3 | 519807 | PROTECTOR, REAR(PLASTIC) | 1 | £37.63 | Available in 14-21 days | ||
| 4 | 511300 | FRONT INTERNAL FENDER, LH. | 1 | £34.85 | Available in 14-21 days | ||
| 5 | 514913 | FRONT INTERNAL FENDER, RH. | 1 | £33.50 | Available in 14-21 days | ||
| 6 | 514938 | BRACKET FRONT LH., FRONT BODY COVER | 1 | £72.58 | Available in 14-21 days | ||
| 7 | 514939 | BRACKET FRONT RH., FRONT BODY COVER | 1 | £72.58 | Available in 14-21 days | ||
| 8 | 516061 | BRACKET, MIDDLE LH., FRONT BODY COVER | 1 | £27.36 | Available in 14-21 days | ||
| 9 | 514901 | BRACKET, MIDDLE RH., FRONT BODY COVER | 1 | £26.74 | Available in 14-21 days | ||
| 10 | 511990 | BRACKET | 1 | £65.57 | Available in 14-21 days | ||
| 11 | 511986-M1 | PROTECTOR, REAR(PLASTIC) | 1 | £20.45 | Available in 14-21 days | ||
| 12 | 511368A | PROTECTOR(INCLUDING HEAT INSULATION) | 1 | £16.37 | Available in 14-21 days | ||
| 12-1 | 511371 | HEAT INSULATION | 1 | £2.69 | Available in 14-21 days | ||
| 14 | 511991 | BRACKET ASSY., NUMBER-PLATE | 1 | £28.13 | Available in 14-21 days | ||
| 15 | 511950 | SEAT STEADY, FRONT | 1 | £8.30 | Available in 14-21 days | ||
| 16 | 511981 | SPRING, STEERING LOCK | 1 | £0.82 | Available in 14-21 days | ||
| 17 | 511977 | PIN, STEERING LOCK | 1 | £8.59 | Available in 14-21 days | ||
| 18 | 511992 | BRACKET | 1 | £15.98 | Available in 14-21 days | ||
| 19 | S25602 | BOLT M6X16L | 10 | £0.82 | Available in 14-21 days | ||
| 20 | GA554BS02 | SPACER 6.5*5.8 | 2 | £0.29 | In Stock | ||
| 21 | S07601 | BOLT, FLANGE M6X16 (Dark Green) | 10 | £0.86 | In Stock | ||
| 22 | GA555SC05 | BOLT, M6X1.0X16L FOR ABS | 4 | £0.29 | In Stock | ||
| 23 | GA556WS06 | WASHER, SPRING 10X18X2.5 | 6 | £0.29 | In Stock | ||
| 24 | S20017 | SH. FLANGE BOLT M10X60L | 2 | £2.02 | In Stock | ||
| 25 | S21809 | BOLT M8X1.25X18L | 2 | £0.72 | In Stock | ||
| 26 | N32601 | NUT, SPRING | 2 | £0.82 | Available in 14-21 days | ||
| 27 | S99617 | BOLT, FLANGE M6X42 | 4 | £2.50 | Available in 14-21 days | ||
| 28 | N04501 | NUT, PLASTIC M5 | 4 | £2.11 | Available in 14-21 days | ||
| 29 | 511725 | SPRING | 4 | £0.86 | Available in 14-21 days | ||
| 30 | S46505 | BOLT | 4 | £0.48 | Available in 14-21 days | ||
| 31 | S21008 | BOLT M10X20 | 4 | £2.11 | In Stock | ||
| 32 | S50507 | SCREW, TAPPING M5X12 | 2 | £0.29 | Available in 14-21 days | ||
| 33 | 511959 | BRACKET LH., REAR BODY COVER | 1 | £31.10 | Available in 14-21 days | ||
| 34 | 511960 | BRACKET RH., REAR BODY COVER - Before 012354 | 1 | £31.10 | Available in 14-21 days | ||
| 34A | 519809 | BRACKET RH., REAR BODY COVER - After 012355 | 1 | £31.10 | Available in 14-21 days | ||
| 35 | S99004 | BOLT M10X1.25X50L | 1 | £2.21 | In Stock | ||
| 36 | GA501NT01 | NUT, FLANGE M10 | 1 | £0.43 | In Stock | ||
| 37 | 512477 | BRACKET LH., FIRST HOUSING | 1 | £15.55 | Available in 14-21 days | ||
| 38 | 512478 | BRACKET RH., FIRST HOUSING | 1 | £15.55 | Available in 14-21 days | ||
| 39 | 511963 | BRACKET | 1 | £4.37 | Available in 14-21 days | ||
| 40 | GA555SC05 | BOLT, M6X1.0X16L FOR ABS | 1 | £0.29 | In Stock | ||
| 41 | GA556WS02 | WASHER 6X16X4 | 8 | £0.62 | In Stock | ||
| 42 | GF514TH02 | CUSHION | 2 | £0.67 | Available in 14-21 days | ||
| 43 | GA555SC05 | BOLT, M6X1.0X16L FOR ABS | 1 | £0.29 | In Stock | ||
| 44 | 517948 | REAR DIFFERENTIAL BRACKET, LH. | 1 | £26.21 | Available in 14-21 days | ||
| 45 | 517953 | REAR DIFFERENTIAL BRACKET, RH. | 1 | £9.31 | Available in 14-21 days | ||
| 46 | 517972 | REAR DIFFERENTIAL BRACKET(UPPER) | 1 | £24.82 | Available in 14-21 days | ||
| 47 | S21809 | BOLT M8X1.25X18L | 3 | £0.72 | In Stock | ||
| 48 | GA556WS04 | SPRING WASHER 8X15X2.0 | 3 | £0.29 | Available in 14-21 days | ||
| 49 | S21008 | BOLT M10X20 | 4 | £2.11 | In Stock | ||
| 50 | GA556WS06 | WASHER, SPRING 10X18X2.5 | 4 | £0.29 | In Stock | ||
| 51 | 511373 | PROTECTOR | 1 | £9.36 | Available in 14-21 days | ||
| 52 | S25602 | BOLT M6X16L | 4 | £0.82 | Available in 14-21 days | ||
| 53 | 517903 | BRACKET | 1 | £9.46 | Available in 14-21 days | ||
| 54 | S21809 | BOLT M8X1.25X18L | 2 | £0.72 | In Stock | ||
| 55 | 519846 | PROTECTOR COVER | 1 | £62.88 | Available in 14-21 days | ||
| 56 | 519847 | BRACKET | 1 | £29.81 | Available in 14-21 days | ||
| 57 | 519848R | INSULATION | 1 | £23.38 | Available in 14-21 days | ||
| 58 | 517950 | RECTIFIER BRACKET - ?003566 | 1 | £9.89 | Available in 14-21 days | ||
| 59 | S20817 | BOLT, FLANGE M8X16 | 1 | £0.96 | In Stock | ||
| 60 | GA555SC05 | BOLT, M6X1.0X16L FOR ABS | 2 | £0.29 | In Stock | ||
| 61 | 512072 | PLUG - (W/O FULL CAB) | 2 | £1.87 | In Stock | ||
| 62 | 511369 | BRACKET, EPS | 1 | £48.10 | Available in 14-21 days | ||
| 63 | GA556WS04 | SPRING WASHER 8X15X2.0 | 4 | £0.29 | Available in 14-21 days | ||
| 64 | S20814 | BOLT, FLANGE M8X1.25X20L | 4 | £1.06 | In Stock | ||
| 65 | 511399A | BRACKET COMP. - With EPS | 1 | £58.85 | Available in 14-21 days | ||
| 65-1 | 511384 | HEAT INSULATION - With EPS | 1 | £5.52 | Available in 14-21 days | ||
| 66 | S21008 | BOLT M10X20 | 2 | £2.11 | In Stock | ||
| 67 | GA555SC05 | BOLT, M6X1.0X16L FOR ABS | 2 | £0.29 | In Stock | ||
| 67A | S21809 | BOLT M8X1.25X18L | 2 | £0.72 | In Stock | ||
| 68 | S21605 | BOLT, FLANGE M6X10 - (W/ HALF/ FULL CAB) | 2 | £0.24 | In Stock |
