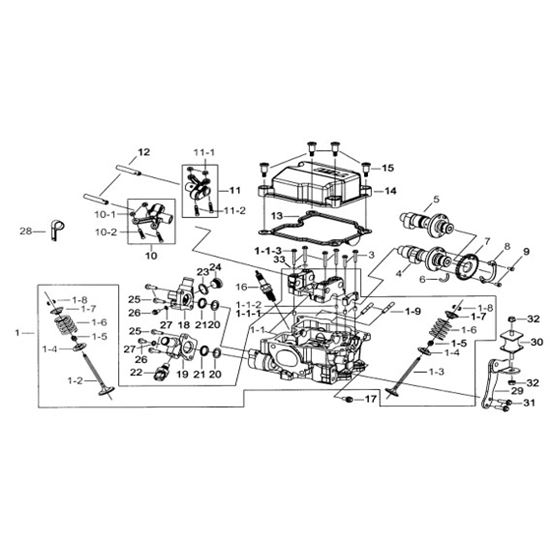

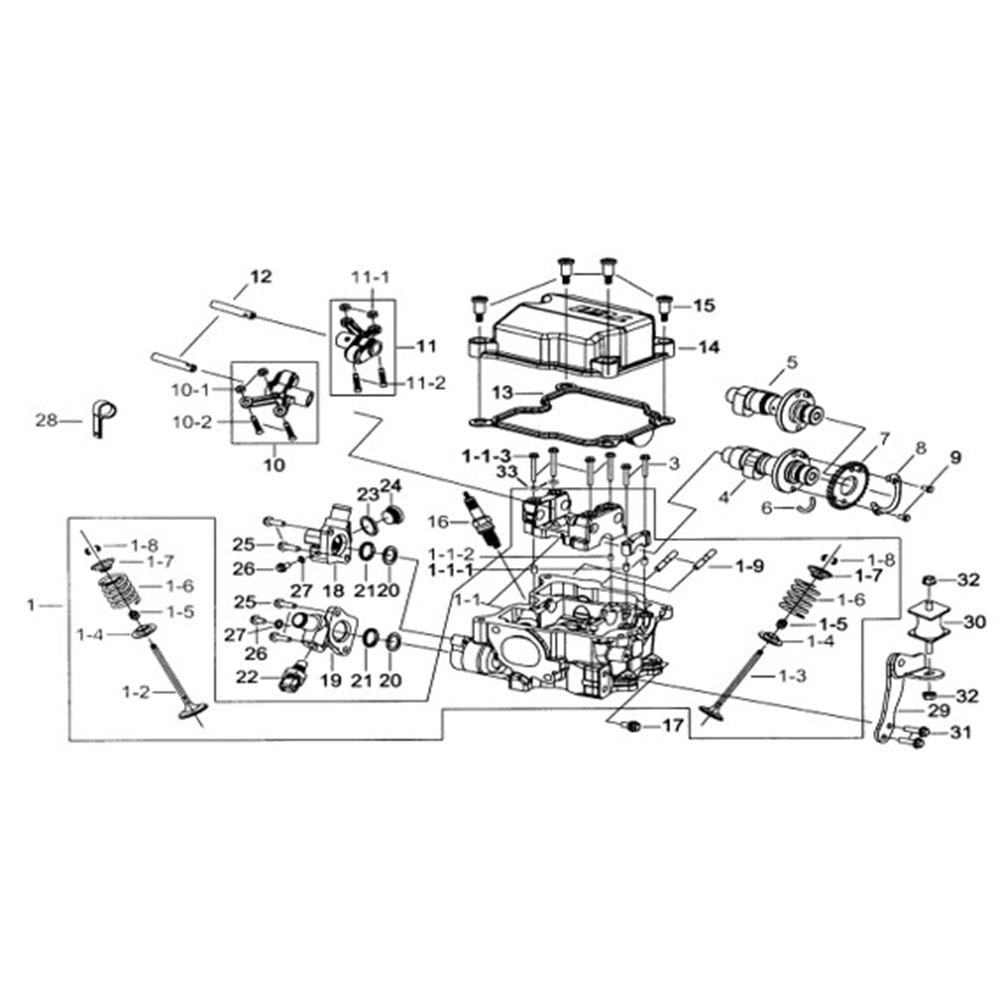

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 01 | 910596 | HEAD ASSY., CYLINDER | 2 | £342.72 | Available in 14-21 days | ||
| 01-1 | 910266A | HEAD COMP., CYLINDER(INCLUDING PIN) | 2 | £277.20 | In Stock | ||
| 01-1-1 | P40803 | PIN, DOWEL | 6 | £1.68 | Available in 14-21 days | ||
| 01-1-2 | P30502 | PIN, DOWEL | 2 | £0.72 | Available in 14-21 days | ||
| 01-1-3 | S20625 | BOLT, FLANGE M6X60 | 4 | £1.06 | In Stock | ||
| 01-2 | 910283 | VALVE, INTAKE | 4 | £10.90 | Available in 14-21 days | ||
| 01-3 | 910284 | VALVE, EXHAUST | 4 | £26.21 | Available in 14-21 days | ||
| 01-4 | 910270 | TRUST WASHER | 8 | £3.70 | Available in 14-21 days | ||
| 01-5 | 924024 | SEAL, VALVE STEM | 8 | £5.18 | In Stock | ||
| 01-6 | 910286 | SPRING, VALVE | 8 | £5.04 | Available in 14-21 days | ||
| 01-7 | 910269 | VALVE SPRING RETAINER | 8 | £5.71 | Available in 14-21 days | ||
| 01-8 | 400093 | COTTER, VALVE | 16 | £0.82 | In Stock | ||
| 01-9 | S95808 | STUD M8X38 | 4 | £1.73 | Available in 14-21 days | ||
| 03 | S20616 | BOLT, FLANGE M6X40 | 4 | £0.77 | Available in 14-21 days | ||
| 04 | 910281 | CAM SHAFT SET (A), FRONT | 1 | £163.30 | Available in 14-21 days | ||
| 05 | 910282 | CAM SHAFT SET (B), REAR | 1 | £163.30 | Available in 14-21 days | ||
| 06 | 924032 | �C� RING | 2 | £4.51 | In Stock | ||
| 07 | 910062 | TIMING GEAR 42T | 2 | £44.78 | Available in 14-21 days | ||
| 08 | 924031 | FIXING PLATE | 2 | £1.25 | In Stock | ||
| 09 | S99605 | BOLT M6X10 | 4 | £0.29 | In Stock | ||
| 10 | 910267 | ROCKER ARM INLET | 2 | £133.06 | Available in 14-21 days | ||
| 11 | 910268 | ROCKER ARM EXHAUST | 2 | £133.06 | Available in 14-21 days | ||
| 10-1 | 910319 | NUT, HEX | 4 | £0.96 | Available in 14-21 days | ||
| 11-1 | 910319 | NUT, HEX | 4 | £0.96 | Available in 14-21 days | ||
| 10-2 | 910219 | BOLT, ADJUSTING | 4 | £11.09 | Available in 14-21 days | ||
| 11-2 | 910219 | BOLT, ADJUSTING | 4 | £11.09 | Available in 14-21 days | ||
| 12 | 910420 | SHAFT, ROCKER ARM | 4 | £11.28 | Available in 14-21 days | ||
| 13 | 911597 | GASKET, CYLINDER HEAD | 2 | £23.81 | In Stock | ||
| 14 | 910289 | COVER, HEAD CYLINDER | 2 | £42.00 | Available in 14-21 days | ||
| 15 | 924019 | BOLT M7X31 | 8 | £1.82 | In Stock | ||
| 16 | 910528 | SPARK PLUG (NGK DCPR8E) | 2 | £47.95 | Available in 14-21 days | ||
| 17 | S77601 | BOLT, FLANGE | 1 | £0.86 | In Stock | ||
| 18 | 910464 | THERMOSTAT COVER , FRONT | 1 | £42.14 | Available in 14-21 days | ||
| 19 | 910466 | THERMOSTAT COVER , REAR | 1 | £42.14 | Available in 14-21 days | ||
| 20 | 910343 | WASHER | 2 | £4.32 | Available in 14-21 days | ||
| 21 | 910398 | SEAL | 2 | £1.68 | Available in 14-21 days | ||
| 22 | 926022Y | COOLANT TEMPERATURE SENSOR | 1 | £42.19 | Available in 14-21 days | ||
| 23 | W99639 | WASHER 16mm | 1 | £0.62 | In Stock | ||
| 24 | 924339 | SCREW | 1 | £6.53 | In Stock | ||
| 25 | S24616 | BOLT, FLANGE M6X20 | 4 | £0.67 | Available in 14-21 days | ||
| 26 | S96815 | BOLT, FLANGE M8X12 | 2 | £3.07 | Available in 14-21 days | ||
| 27 | 911373 | WASHER 8.5X14.5X1.15t | 2 | £1.39 | Available in 14-21 days | ||
| 28 | 924833 | CLAMP ? P ? | 1 | £9.70 | In Stock | ||
| 29 | 910497 | BRACKET | 1 | £16.94 | Available in 14-21 days | ||
| 30 | 910638 | CUSHIONING BUSH | 1 | £25.82 | Available in 14-21 days | ||
| 31 | S20814 | BOLT, FLANGE M8X1.25X20L | 2 | £1.06 | In Stock | ||
| 32 | N10804 | NUT M8X1.25 | 2 | £0.67 | Available in 14-21 days | ||
| 33 | W99643 | WASHER 6X13X1.5t | 4 | £0.14 | Available in 14-21 days |
