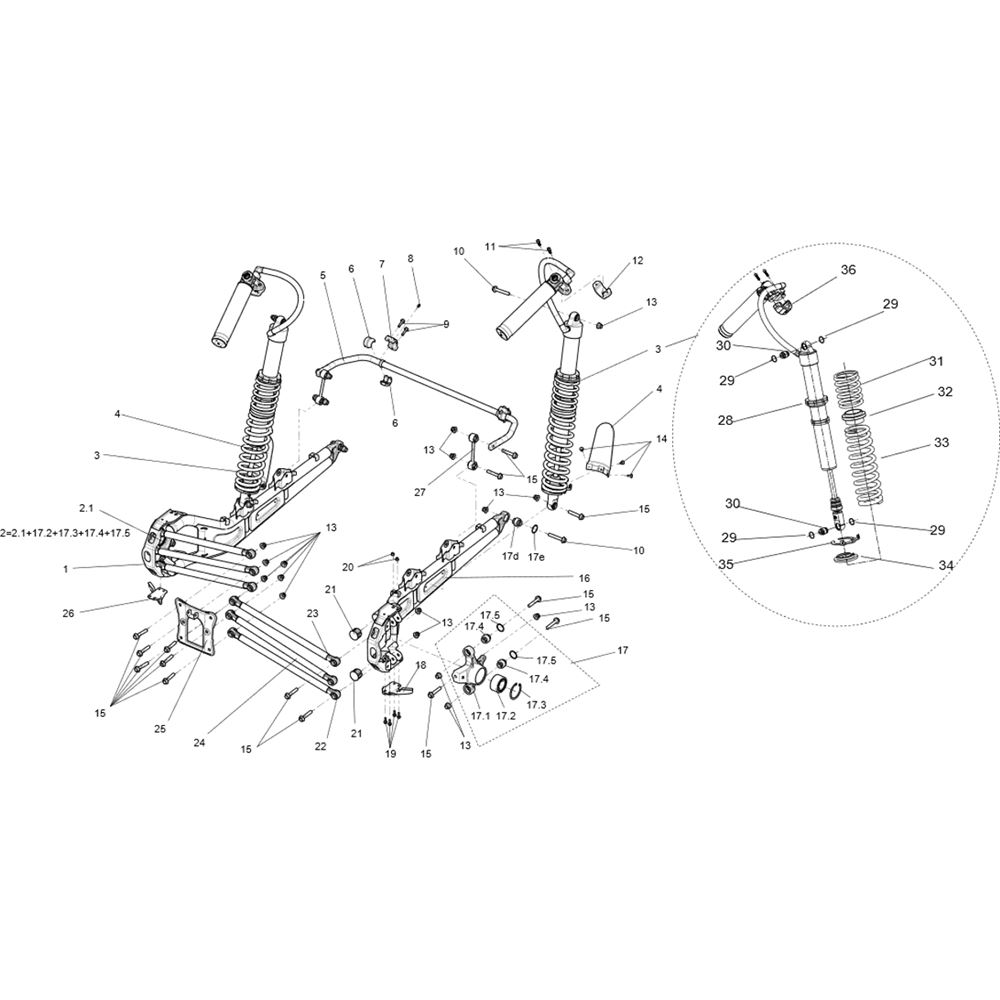

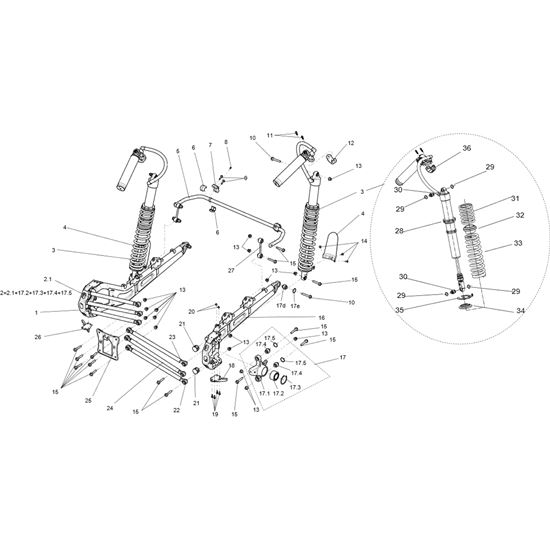

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | S01D201A0002 | RL TRAILING ARM?RED?NARROW VEHICLE? | 1 | £208.50 | Available in 14-21 days | ||
| 1 | S01D201A0003 | RL TRAILING ARM?GREEN?NARROW? | 1 | £263.50 | Available in 14-21 days | ||
| 1 | S01D201A0005 | RL SUPPORT ARM ASSY (BLACK,NARROW) | 1 | £209.94 | Available in 14-21 days | ||
| 2 | S05D20200001 | LEFT REAR AXLE SUPPORT ASSEMBLY | 1 | £187.44 | Available in 14-21 days | ||
| 2.1 | S05D20201001 | LEFT REAR AXLE SUPPORT | 1 | £106.08 | Available in 14-21 days | ||
| 3 | S01-D205000-0B0-01 | REAR SHOCK ABSORBER(BLACK,NARROW) | 2 | £834.73 | Available in 14-21 days | ||
| 4 | S01H11700001 | REAR SHOCK ABSORBER BAFFLE | 2 | £1.25 | Available in 14-21 days | ||
| 5 | S01D209A0001 | REAR STABILIZER BAR COMPONENTS | 1 | £119.81 | Available in 14-21 days | ||
| 6 | U01D26001001 | SWAY BAR BUSHING | 4 | £1.87 | Available in 14-21 days | ||
| 7 | U01D26002001 | REAR SWAY BAR MOUNTING BRACKET | 2 | £12.96 | Available in 14-21 days | ||
| 8 | GBT001152001 | FUEL CUP M6 | 2 | £0.38 | Available in 14-21 days | ||
| 9 | GBT005789017 | HEXAGON FLANGE BOLT M8�30 | 4 | £0.38 | Available in 14-21 days | ||
| 10 | GBT005789102 | HEX FLANGE BOLT M12�1.25�75 | 4 | £1.63 | Available in 14-21 days | ||
| 11 | GBT000701016 | SCREWS M8�25 | 4 | £0.29 | Available in 14-21 days | ||
| 12 | S01D20510001 | REAR SHOCK ABSORBER MOUNT | 2 | £39.94 | Available in 14-21 days | ||
| 13 | GBT061832002 | HEXAGON FLANGE LOCK NUT M12 | 26 | £0.38 | Available in 14-21 days | ||
| 14 | T03000007002 | BOLT M6�16 | 6 | £0.38 | Available in 14-21 days | ||
| 15 | GBT005789048 | HEX FLANGE BOLT M12�1.25�65 | 22 | £1.44 | Available in 14-21 days | ||
| 16 | S01D203A0002 | RR TRAILING ARM?RED?NARROW VEHICLE? | 1 | £208.50 | Available in 14-21 days | ||
| 16 | S01D203A0003 | RR TRAILING ARM?GREEN?NARROW VEHICLE? | 1 | £263.50 | Available in 14-21 days | ||
| 16 | S01D203A0005 | RR SUPPORT ARM ASSY(Black) | 1 | £209.94 | Available in 14-21 days | ||
| 17 | S05D20400001 | RIGHT REAR AXLE SUPPORT ASSEMBLY | 1 | £187.44 | Available in 14-21 days | ||
| 17.1 | S05D20401001 | RIGHT REAR AXLE SUPPORT | 1 | £106.08 | Available in 14-21 days | ||
| 17.2 | JBT010238004 | REAR HUB WHEEL BEARING | 2 | £45.79 | In Stock | ||
| 17.3 | GBT000893006 | WHEEL BEARING CIRCLIP | 2 | £0.72 | Available in 14-21 days | ||
| 17.4 | S01D20101001 | JOINT BEARING | 6 | £20.64 | Available in 14-21 days | ||
| 17.5 | GB0008951001 | WIRE RETAINING RING FOR HOLE 35 | 6 | £0.10 | Available in 14-21 days | ||
| 18 | S01H14400001 | RR TRAILING ARM SCRAPER SEAT | 1 | £1.82 | Available in 14-21 days | ||
| 19 | GBT005789008 | HEXAGON FLANGE BOLT M6�20 | 8 | £1.01 | In Stock | ||
| 20 | GBT061831002 | NUT M6 | 8 | £0.38 | Available in 14-21 days | ||
| 21 | S05H11700001 | FRAME PLUG | 4 | £0.86 | In Stock | ||
| 22 | S01D20800001 | REAR BOTTOM TIE ROD ASSEMBLY | 2 | £73.06 | Available in 14-21 days | ||
| 23 | S01D20700001 | REAR UPPER TIE ROD ASSEMBLY | 2 | £71.66 | Available in 14-21 days | ||
| 24 | S01D20600001 | REAR SUSPENSION TOE ARM ASSY(NARROW) | 2 | £79.34 | Available in 14-21 days | ||
| 25 | S01C00100002 | Rear Arm Mounting Plate | 1 | £29.18 | Available in 14-21 days | ||
| 26 | S01H11600001 | RL TRAILING ARM SCRAPER SEAT | 1 | £1.82 | Available in 14-21 days | ||
| 27 | S01D209B0001 | REAR STABILIZER BAR LINKAGE ASSEMBLY | 2 | £51.55 | Available in 14-21 days | ||
| 28 | S01-D205100-000-01 | REAR DAMPER ASSEMBLY | 1 | £406.03 | Available in 14-21 days | ||
| 29 | S01-D107211-000-01 | JOINT BEARING COMBINATION RETAINING RING | 4 | £0.29 | Available in 14-21 days | ||
| 30 | S01-D107210-000-01 | SPHERICAL BEARING ASSEMBLY | 2 | £13.97 | Available in 14-21 days | ||
| 31 | S01-D205221-PB0-01 | REAR DAMPER SPRING 1 BLACK NARROW | 1 | £9.02 | Available in 14-21 days | ||
| 32 | S01-D107223-PB0-01 | SPRING SPACER | 1 | £5.09 | Available in 14-21 days | ||
| 33 | S01-D205222-PB0-01 | REAR DAMPER SPRING 2 BLACK NARROW | 1 | £26.30 | Available in 14-21 days | ||
| 34 | S01-D107224-PB0-01 | LOWER SPRING CUSHION | 1 | £13.97 | Available in 14-21 days | ||
| 35 | S01-D205223-PB0-01 | FENDER BRACKET | 1 | £10.13 | Available in 14-21 days | ||
| 36 | S01D20510001 | REAR SHOCK ABSORBER MOUNT | 1 | £39.94 | Available in 14-21 days |
