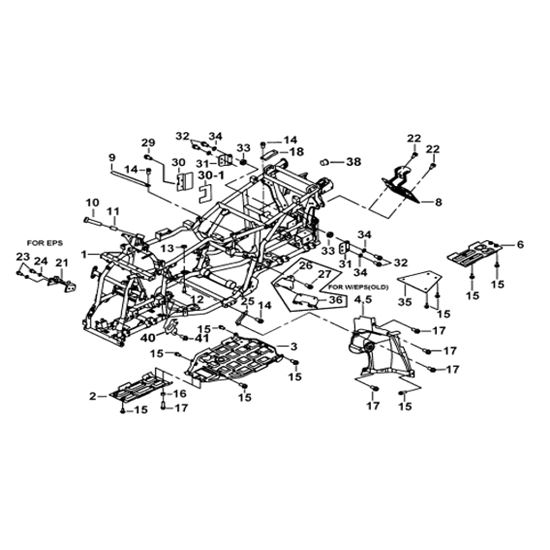

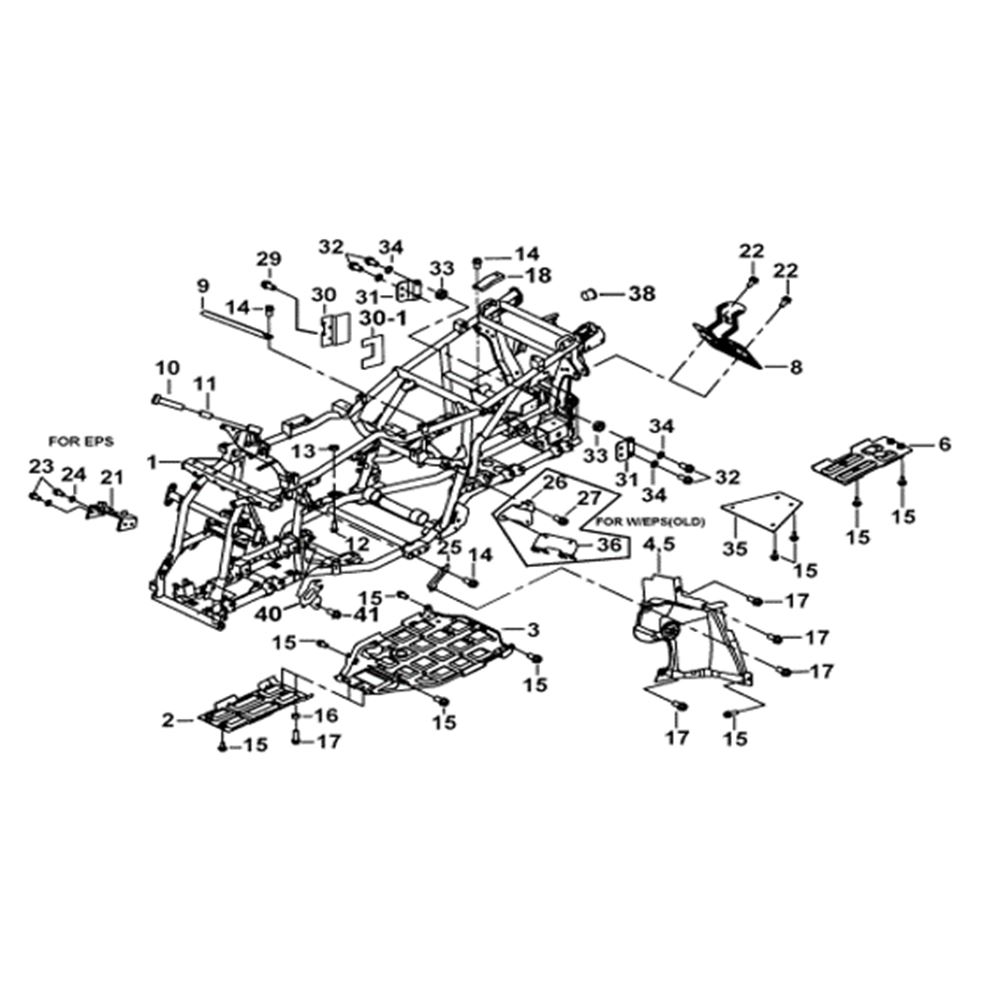

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 01 | 511362 | MAIN FRAME - FOR W/EPS | 1 | £929.88 | Available in 14-21 days | ||
| 02 | 511394 | PROTECTOR, FRONT | 1 | £18.72 | In Stock | ||
| 03 | 519807 | PROTECTOR, REAR(PLASTIC) | 1 | £39.50 | Available in 14-21 days | ||
| 04 | 511301 | FRONT INTERNAL FENDER, LH. | 1 | £36.58 | Available in 14-21 days | ||
| 05 | 511994 | FRONT INTERNAL FENDER, RH. | 1 | £46.46 | Available in 14-21 days | ||
| 06 | 511986-M1 | PROTECTOR, REAR(PLASTIC) | 1 | £20.45 | Available in 14-21 days | ||
| 08 | 511991 | BRACKET ASSY., NUMBER-PLATE | 1 | £28.13 | Available in 14-21 days | ||
| 09 | 511950 | SEAT STEADY, FRONT | 1 | £8.30 | Available in 14-21 days | ||
| 10 | 511953 | PIN, STEERING LOCK | 1 | £8.06 | Available in 14-21 days | ||
| 11 | 511946 | SPRING, STEERING LOCK | 1 | £0.96 | Available in 14-21 days | ||
| 12 | S20004 | BOLT, FLANGE M10X30 | 1 | £0.86 | In Stock | ||
| 13 | GA501NT01 | NUT, FLANGE M10 | 1 | £0.43 | In Stock | ||
| 14 | GA555SC05 | BOLT, M6X1.0X16L FOR ABS | 4 | £0.29 | In Stock | ||
| 15 | S25602 | BOLT M6X16L | 16 | £0.82 | Available in 14-21 days | ||
| 16 | GA554BS02 | SPACER 6.5*5.8 | 2 | £0.29 | In Stock | ||
| 17 | S07601 | BOLT, FLANGE M6X16 (Dark Green) | 10 | £0.86 | In Stock | ||
| 18 | 511318 | BRACKET | 1 | £4.80 | Available in 14-21 days | ||
| 21 | 511369 | BRACKET, EPS | 1 | £48.10 | Available in 14-21 days | ||
| 22 | S21809 | BOLT M8X1.25X18L | 2 | £0.72 | In Stock | ||
| 23 | S20814 | BOLT, FLANGE M8X1.25X20L | 4 | £1.06 | In Stock | ||
| 24 | GA556WS04 | SPRING WASHER 8X15X2.0 | 4 | £0.29 | Available in 14-21 days | ||
| 25 | 517969 | FRONT INTERNAL FENDER | 1 | £6.77 | Available in 14-21 days | ||
| 26 | 517950 | RECTIFIER BRACKET - ?003566 | 1 | £9.89 | Available in 14-21 days | ||
| 27 | S20817 | BOLT, FLANGE M8X16 | 1 | £0.96 | In Stock | ||
| 29 | GA555SC05 | BOLT, M6X1.0X16L FOR ABS | 1 | £0.29 | In Stock | ||
| 30 | 511368A | PROTECTOR(INCLUDING HEAT INSULATION) | 1 | £16.37 | Available in 14-21 days | ||
| 30-1 | 511371 | HEAT INSULATION | 1 | £2.69 | Available in 14-21 days | ||
| 31 | 511364 | BRACKET - FOR SHAFT BRAKE | 2 | £11.47 | Available in 14-21 days | ||
| 32 | S20004 | BOLT, FLANGE M10X30 | 4 | £0.86 | In Stock | ||
| 33 | GA551NT01 | NUT, SELFLOCK M10X10 | 4 | £1.30 | In Stock | ||
| 34 | GA556WS06 | WASHER, SPRING 10X18X2.5 | 4 | £0.29 | In Stock | ||
| 35 | 511370 | PROTECTOR COVER | 1 | £35.52 | Available in 14-21 days | ||
| 36 | 517998 | BRACKET | 1 | £7.68 | Available in 14-21 days | ||
| 38 | 512072 | PLUG - (W/O FULL CAB) | 2 | £1.87 | In Stock | ||
| 40 | 519839 | BRACKET - FOR EPS | 1 | £36.10 | Available in 14-21 days | ||
| 41 | S21809 | BOLT M8X1.25X18L | 1 | £0.72 | In Stock |
