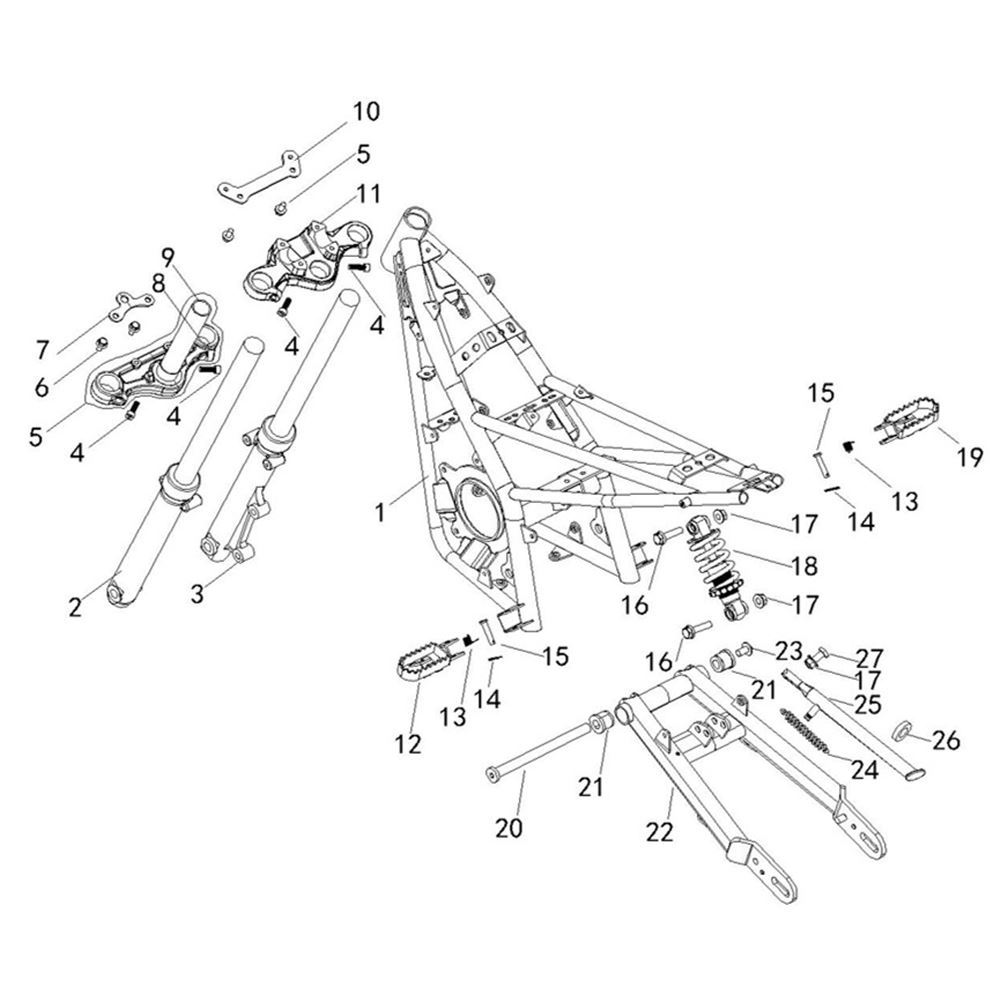

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | 10101000Q002 | Frame Steel | 1 | £148.13 | Available in 14-21 days | ||
| 2 | 10207000AP01 | front left absorber | 1 | £57.07 | Available in 14-21 days | ||
| 3 | 10207000AQ01 | front right absorber | 1 | £57.07 | Available in 14-21 days | ||
| 4 | B020406012B8 | hexagon socket head screw M6x20mm | 4 | £0.29 | Available in 14-21 days | ||
| 5 | 13010000BX01 | lower lamp | 1 | £40.61 | Available in 14-21 days | ||
| 6 | B011906012B8 | hexagon flange bolt M6x12mm | 4 | £0.19 | In Stock | ||
| 7 | 13010000BZ01 | front panel lower bracket | 1 | £4.37 | In Stock | ||
| 8 | 13010000BX01 | lower lamp | 1 | £40.61 | Available in 14-21 days | ||
| 9 | 13010000CU01 | vertical pipe | 1 | £6.67 | Available in 14-21 days | ||
| 10 | 13010000BY01 | front panel up bracket | 1 | £5.47 | In Stock | ||
| 11 | 13010000BW01 | up lamp | 1 | £42.77 | In Stock | ||
| 12 | 104020003302 | left footrest | 1 | £21.98 | Available in 14-21 days | ||
| 13 | 13010000CT02 | footrest spring | 2 | £1.44 | Available in 14-21 days | ||
| 14 | 13010000CS02 | circlip | 2 | £0.05 | Available in 14-21 days | ||
| 15 | 13010000CR02 | fixed pin | 2 | £0.38 | Available in 14-21 days | ||
| 16 | B011908042B8 | hexagon flange bolt M8x42mm | 2 | £0.82 | In Stock | ||
| 17 | B04280800008 | hexagon flange nut M6 | 3 | £0.72 | In Stock | ||
| 18 | 101090000601 | rear absorber | 1 | £38.40 | Available in 14-21 days | ||
| 19 | 104020003401 | right footrest | 1 | £21.98 | Available in 14-21 days | ||
| 20 | 13010000CJ01 | swingarm axis M12x1.25x170mm | 1 | £2.78 | In Stock | ||
| 21 | 13010000CG01 | Swingarm bushing NYLON | 2 | £1.63 | In Stock | ||
| 22 | 10101010Q001 | rear swingarm | 1 | £49.39 | Available in 14-21 days | ||
| 23 | B04421212507 | hexagon flange lock nut M12 | 1 | £1.06 | Available in 14-21 days | ||
| 24 | 13010000CL02 | side support spring | 1 | £1.06 | Available in 14-21 days | ||
| 25 | 101030004802 | side support | 1 | £8.78 | Available in 14-21 days | ||
| 26 | 13010000CK01 | buffer rubber | 1 | £2.21 | In Stock | ||
| 27 | 909074003201 | hexagon pivot bolt M8x25mm | 1 | £0.67 | Available in 14-21 days |
