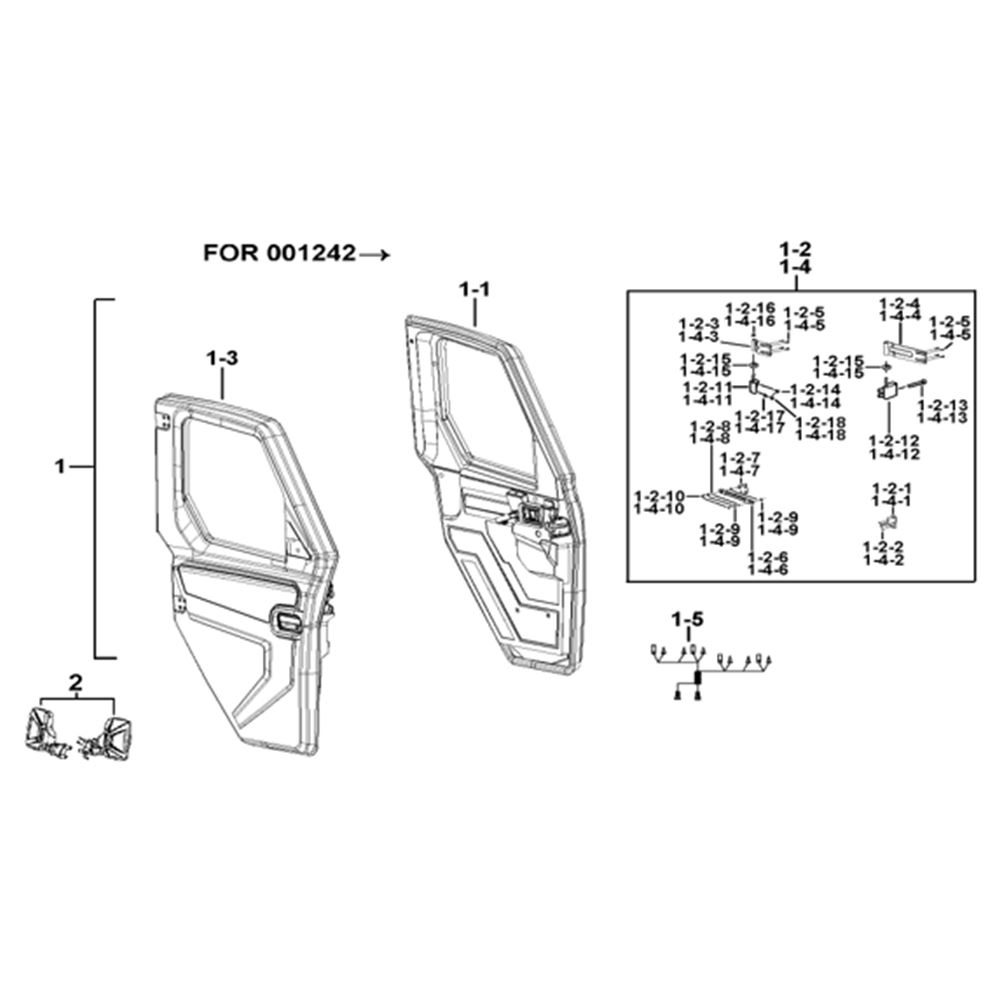

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | 574016RD-MB | ACCESSORIES, DOOR ASSY. (LH. / RH.)(RED)(UPGRADE) | 1 | £2582.50 | Available in 14-21 days | ||
| 01-1 | 574016RD-M1 | DOOR ASSY. (LH.) (RED) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-1A | 574016OG-M1 | DOOR ASSY. (LH.) (OLIVE GREEN) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-1B | 574016SE-M1 | DOOR ASSY. (LH.) (SEMI-GLOSS BLACK) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-1C | 574016WE-M1 | DOOR ASSY. (LH.) (WINES) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-1D | 574016SB-M1 | DOOR ASSY. (LH.) (BLUE) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-1E | 574016PV-M1 | DOOR ASSY. (LH.) (PEARLY LUSTER SILVER) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-1F | 574016KB-M1 | DOOR ASSY. (LH.) (DARK BLUE) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-1G | 574016DA-M1 | DOOR ASSY. (LH.) (DARK GREEN) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-1H | 574016MT-M1 | DOOR ASSY. (LH.) (MOUNTAIN GRAY) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-1I | 574016ML-M1 | DOOR ASSY. (LH.) (MATTE BLUE) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-1J | 574016DN-M1 | DOOR ASSY. (LH.) (DESERT SAND) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-2 | 574016-UP | ACCESSORIES, DOOR ASSY. (LH.) (UPGRADE) | 1 | £183.06 | Available in 14-21 days | ||
| 01-2-1 | 575505 | HOLDER, DOOR LOCK (LH.) | 1 | £27.26 | Available in 14-21 days | ||
| 01-2-10 | S20829 | BOLT, FLANGE M8X25 | 2 | £1.82 | Available in 14-21 days | ||
| 01-2-11 | 571934 | BRACKET, UPPER SHAFT (LH.) | 1 | £26.78 | Available in 14-21 days | ||
| 01-2-12 | 571920 | BRACKET, LOWER SHAFT (LH.) | 1 | £73.82 | Available in 14-21 days | ||
| 01-2-13 | S20012 | BOLT M10X80 | 2 | £2.40 | Available in 14-21 days | ||
| 01-2-14 | S21008 | BOLT M10X20 | 1 | £2.11 | In Stock | ||
| 01-2-15 | W99005 | WASHER 2t | 2 | £0.43 | In Stock | ||
| 01-2-16 | N20001 | NUT, LOCK | 1 | £0.82 | Available in 14-21 days | ||
| 01-2-17 | 575530 | CUSHION | 1 | £15.12 | Available in 14-21 days | ||
| 01-2-18 | S20047 | BOLT M10X25L | 1 | £2.88 | Available in 14-21 days | ||
| 01-2-2 | S72808 | BOLT M8X1.25X30L | 2 | £2.54 | Available in 14-21 days | ||
| 01-2-3 | 575441 | UPPER BRACKET (LH.) | 1 | £24.67 | Available in 14-21 days | ||
| 01-2-4 | 575498 | LOWER BRACKET (LH.) | 1 | £34.46 | Available in 14-21 days | ||
| 01-2-5 | S20046 | BOLT M10X30L | 8 | £3.41 | Available in 14-21 days | ||
| 01-2-6 | 575529 | DRAWSTRING | 1 | £10.99 | Available in 14-21 days | ||
| 01-2-7 | 575541 | BRACKET LH., DRAWSTRING | 1 | £20.06 | Available in 14-21 days | ||
| 01-2-8 | 575484 | SPACER | 2 | £3.55 | Available in 14-21 days | ||
| 01-2-9 | W99219 | WASHER | 4 | £1.01 | Available in 14-21 days | ||
| 01-3 | 574017RD-M1 | DOOR ASSY. (RH.) (RED) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-3A | 574017OG-M1 | DOOR ASSY. (RH.) (OLIVE GREEN) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-3B | 574017SE-M1 | DOOR ASSY. (RH.) (SEMI-GLOSS BLACK) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-3C | 574017WE-M1 | DOOR ASSY. (RH.) (WINES) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-3D | 574017SB-M1 | DOOR ASSY. (RH.) (BLUE) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-3E | 574017PV-M1 | DOOR ASSY. (RH.) (PEARLY LUSTER SILVER) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-3F | 574017KB-M1 | DOOR ASSY. (RH.) (DARK BLUE) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-3G | 574017DA-M1 | DOOR ASSY. (RH.) (DARK GREEN) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-3H | 574017MT-M1 | DOOR ASSY. (RH.) (MOUNTAIN GRAY) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-3I | 574017ML-M1 | DOOR ASSY. (RH.) (MATTE BLUE) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-3J | 574017DN-M1 | DOOR ASSY. (RH.) (DESERT SAND) | 1 | £1292.88 | Available in 14-21 days | ||
| 01-4 | 574017-UP | ACCESSORIES, DOOR ASSY. (RH.) (UPGRADE) | 1 | £183.06 | Available in 14-21 days | ||
| 01-4-1 | 575506 | HOLDER, DOOR LOCK (RH.) | 1 | £27.26 | Available in 14-21 days | ||
| 01-4-10 | S20829 | BOLT, FLANGE M8X25 | 2 | £1.82 | Available in 14-21 days | ||
| 01-4-11 | 571935 | BRACKET, UPPER SHAFT (RH.) | 1 | £26.78 | Available in 14-21 days | ||
| 01-4-12 | 571921 | BRACKET, LOWER SHAFT (RH.) | 1 | £73.82 | Available in 14-21 days | ||
| 01-4-13 | S20012 | BOLT M10X80 | 2 | £2.40 | Available in 14-21 days | ||
| 01-4-14 | S21008 | BOLT M10X20 | 1 | £2.11 | In Stock | ||
| 01-4-15 | W99005 | WASHER 2t | 2 | £0.43 | In Stock | ||
| 01-4-16 | N20001 | NUT, LOCK | 1 | £0.82 | Available in 14-21 days | ||
| 01-4-17 | 575530 | CUSHION | 1 | £15.12 | Available in 14-21 days | ||
| 01-4-18 | S20047 | BOLT M10X25L | 1 | £2.88 | Available in 14-21 days | ||
| 01-4-2 | S72808 | BOLT M8X1.25X30L | 2 | £2.54 | Available in 14-21 days | ||
| 01-4-3 | 575442 | UPPER BRACKET (RH.) | 1 | £24.67 | Available in 14-21 days | ||
| 01-4-4 | 575499 | LOWER BRACKET (RH.) | 1 | £34.46 | Available in 14-21 days | ||
| 01-4-5 | S20046 | BOLT M10X30L | 8 | £3.41 | Available in 14-21 days | ||
| 01-4-6 | 575529 | DRAWSTRING | 1 | £10.99 | Available in 14-21 days | ||
| 01-4-7 | 575542 | BRACKET RH., DRAWSTRING | 1 | £20.06 | Available in 14-21 days | ||
| 01-4-8 | 575484 | SPACER | 2 | £3.55 | Available in 14-21 days | ||
| 01-4-9 | W99219 | WASHER | 4 | £1.01 | Available in 14-21 days | ||
| 01-5 | 911979 | ADAPTER WIRE (MIDDLE) (POWER WINDOW) | 1 | £194.11 | Available in 14-21 days | ||
| 01A | 574016OG-MB | ACCESSORIES, DOOR ASSY. (LH. / RH.)(OLIVE GREEN)(UPGRADE) | 1 | £2582.50 | Available in 14-21 days | ||
| 01B | 574016SE-MB | ACCESSORIES, DOOR ASSY. (LH. / RH.)(SEMI-GLOSS BLACK)(UPGRADE) | 1 | £2582.50 | Available in 14-21 days | ||
| 01C | 574016WE-MB | ACCESSORIES, DOOR ASSY. (LH. / RH.)(WINES)(UPGRADE) | 1 | £2582.50 | Available in 14-21 days | ||
| 01D | 574016SB-MB | ACCESSORIES, DOOR ASSY. (LH. / RH.)(BLUE)(UPGRADE) | 1 | £2582.50 | Available in 14-21 days | ||
| 01E | 574016PV-MB | ACCESSORIES, DOOR ASSY. (LH. / RH.)(PEARLY LUSTER SILVER)(UPGRADE) | 1 | £2582.50 | Available in 14-21 days | ||
| 01F | 574016KB-MB | ACCESSORIES, DOOR ASSY. (LH. / RH.)(DARK BLUE)(UPGRADE) | 1 | £2582.50 | Available in 14-21 days | ||
| 01G | 574016DA-MB | ACCESSORIES, DOOR ASSY. (LH. / RH.)(DARK GREEN)(UPGRADE) | 1 | £2582.50 | Available in 14-21 days | ||
| 01H | 574016MT-MB | ACCESSORIES, DOOR ASSY. (LH. / RH.)(MOUNTAIN GRAY)(UPGRADE) | 1 | £2582.50 | Available in 14-21 days | ||
| 01I | 574016ML-MB | ACCESSORIES, DOOR ASSY. (LH. / RH.) (MATTE BLUE)(UPGRADE) | 1 | £2582.50 | Available in 14-21 days | ||
| 01J | 574016DN-MB | ACCESSORIES, DOOR ASSY. (LH. / RH.)(DESERT SAND)(UPGRADE) | 1 | £2582.50 | Available in 14-21 days | ||
| 2 | 575408Y-S | SIDE-VIEW MIRROR COMP. (LH.&RH.)(W/ BOLTS) | 1 | £129.84 | Available in 14-21 days |
