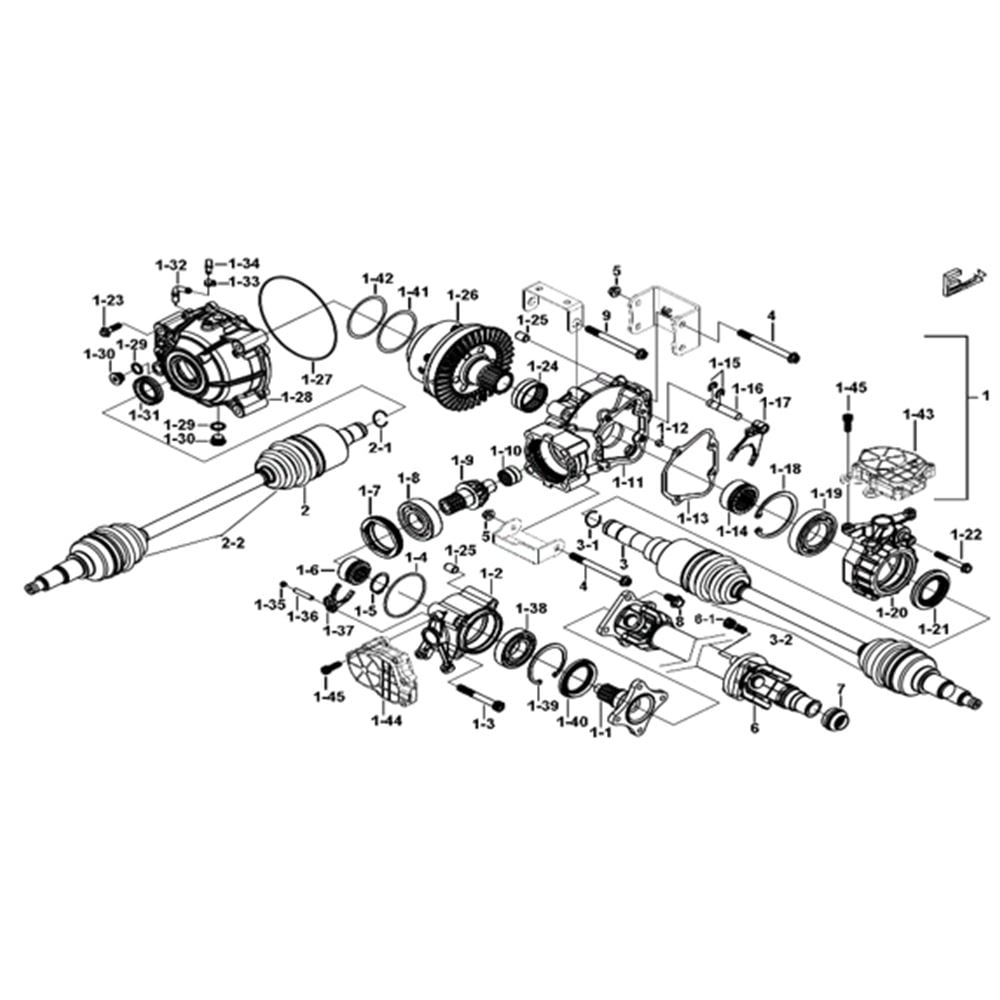

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 01 | 911334M | FRONT DIFFERENTIAL ASSY. | 1 | £945.76 | Available in 14-21 days | ||
| 01-1 | 911555 | CONNECTING SHAFT SEAT | 1 | £114.77 | Available in 14-21 days | ||
| 01-10 | 911592 | BEARING | 1 | £26.21 | Available in 14-21 days | ||
| 01-11 | 911335 | GEAR BOX, FRONT DIFFERENTIAL | 1 | £193.54 | Available in 14-21 days | ||
| 01-12 | P40102 | PIN, DOWEL 8.5X11X5.8L | 2 | £3.41 | Available in 14-21 days | ||
| 01-13 | 912050 | GASKET | 1 | £6.19 | Available in 14-21 days | ||
| 01-14 | 911562 | LOCK SLEEVE | 1 | £55.97 | Available in 14-21 days | ||
| 01-15 | R10702 | ?E? RING | 2 | £0.14 | In Stock | ||
| 01-16 | 911561 | SHAFT, LOCK | 1 | £16.75 | Available in 14-21 days | ||
| 01-17 | 911563 | FORK, SHIFT | 1 | £82.80 | Available in 14-21 days | ||
| 01-18 | R01803 | ?C?CLIP | 1 | £9.70 | Available in 14-21 days | ||
| 01-19 | 911591 | BEARING (6209) | 1 | £84.67 | Available in 14-21 days | ||
| 01-2 | 911337 | HOUSING, FRONT DRIVE (4WD) | 1 | £93.89 | Available in 14-21 days | ||
| 01-20 | 911557 | HOUSING, FRONT DRIVE | 1 | £92.26 | Available in 14-21 days | ||
| 01-21 | 910408 | OIL SEAL | 1 | £12.72 | In Stock | ||
| 01-22 | S20810 | BOLT, FLANGE M8X60 | 2 | £2.02 | Available in 14-21 days | ||
| 01-23 | S21813 | SCREW | 8 | £1.30 | Available in 14-21 days | ||
| 01-24 | 910498 | BEARING | 1 | £92.74 | Available in 14-21 days | ||
| 01-25 | P40301 | PIN, DOWEL | 4 | £0.96 | Available in 14-21 days | ||
| 01-26 | 911684M | PLANETARY GEAR COMP. | 1 | £442.26 | Available in 14-21 days | ||
| 01-27 | 910208 | ?O?RING | 1 | £4.85 | In Stock | ||
| 01-28 | 910199B | CASE, REAR FINAL DRIVEN | 1 | £116.93 | Available in 14-21 days | ||
| 01-29 | W99639 | WASHER 16mm | 2 | £0.62 | In Stock | ||
| 01-3 | S70006 | SCREW | 4 | £4.13 | Available in 14-21 days | ||
| 01-30 | 912191 | DRAIN PLUG BOLT | 2 | £8.88 | Available in 14-21 days | ||
| 01-31 | 925010A | OIL SEAL | 1 | £11.81 | Available in 14-21 days | ||
| 01-32 | 924261 | EXHAUST PIPE, BREATHE | 1 | £7.82 | In Stock | ||
| 01-33 | R40002 | CLIP | 1 | £4.03 | In Stock | ||
| 01-34 | 924769 | PIPE, BREATHER | 1 | £11.42 | Available in 14-21 days | ||
| 01-35 | S17802 | SCREW | 1 | £1.06 | Available in 14-21 days | ||
| 01-36 | 911343 | SHAFT, 4WD | 1 | £3.26 | Available in 14-21 days | ||
| 01-37 | 911342 | FORK, 4WD | 1 | £56.45 | Available in 14-21 days | ||
| 01-38 | 924066 | BEARING 35X72X17 | 1 | £46.80 | In Stock | ||
| 01-39 | R01506 | ?C?CLIP | 1 | £13.68 | Available in 14-21 days | ||
| 01-4 | 910209 | ?O?RING | 1 | £5.04 | Available in 14-21 days | ||
| 01-40 | 924380 | OIL SEAL 52X73X14 | 1 | £6.24 | Available in 14-21 days | ||
| 01-41 | W99832 | SHIM 0.2t | 1 | £5.28 | Available in 14-21 days | ||
| 01-42 | W99833 | SHIM 0.3t | 1 | £5.47 | Available in 14-21 days | ||
| 01-43 | 911747Y | CONTROL, MOTOR (LOCK) | 1 | £156.24 | Available in 14-21 days | ||
| 01-44 | 911746Y | CONTROL, MOTOR(2WD/4WD) | 1 | £156.24 | Available in 14-21 days | ||
| 01-45 | S70825 | SCREW M8X25L | 6 | £1.54 | Available in 14-21 days | ||
| 01-5 | R00504 | ?C?CLIP | 1 | £1.63 | Available in 14-21 days | ||
| 01-6 | 911344 | 4WD SLEEVE | 1 | £64.80 | Available in 14-21 days | ||
| 01-7 | 911539 | RING SNAP | 1 | £71.28 | Available in 14-21 days | ||
| 01-8 | 910501 | BEARING (63/32) | 1 | £87.07 | Available in 14-21 days | ||
| 01-9 | 911338 | SHAFT, FRONT FINAL DRIVE | 1 | £197.57 | Available in 14-21 days | ||
| 02 | 911175Y | REAR TRANSMISSION SHAFT (LH.) | 1 | £268.38 | Available in 14-21 days | ||
| 02-1 | 911607B | ?C? CLIP ?29.5 | 1 | £3.22 | Available in 14-21 days | ||
| 02-2 | 910604Y | BOOT SET, TRANSMISSION SHAFT | 1 | £92.74 | In Stock | ||
| 03 | 911176Y | REAR TRANSMISSION SHAFT (RH.) | 1 | £269.64 | Available in 14-21 days | ||
| 03-1 | 911607B | ?C? CLIP ?29.5 | 1 | £3.22 | Available in 14-21 days | ||
| 03-2 | 910604Y | BOOT SET, TRANSMISSION SHAFT | 1 | £92.74 | In Stock | ||
| 04 | S20060 | BOLT, FLANGE M10X113L | 3 | £5.71 | In Stock | ||
| 05 | GA551NT01 | NUT, SELFLOCK M10X10 | 3 | £1.30 | In Stock | ||
| 06 | 911155 | UNIVERSAL JOINT ASSY. | 1 | £352.80 | Available in 14-21 days | ||
| 06-1 | S20065 | LOCKING SCREW | 3 | £2.64 | Available in 14-21 days | ||
| 07 | 911548 | BOOT, PROPELLER SHAFT | 1 | £8.88 | Available in 14-21 days | ||
| 08 | S21007 | BOLT M10X1.25X20 | 4 | £2.11 | Available in 14-21 days | ||
| 09 | S20019 | BOLT, FLANGE M10X110L | 1 | £3.22 | In Stock |
