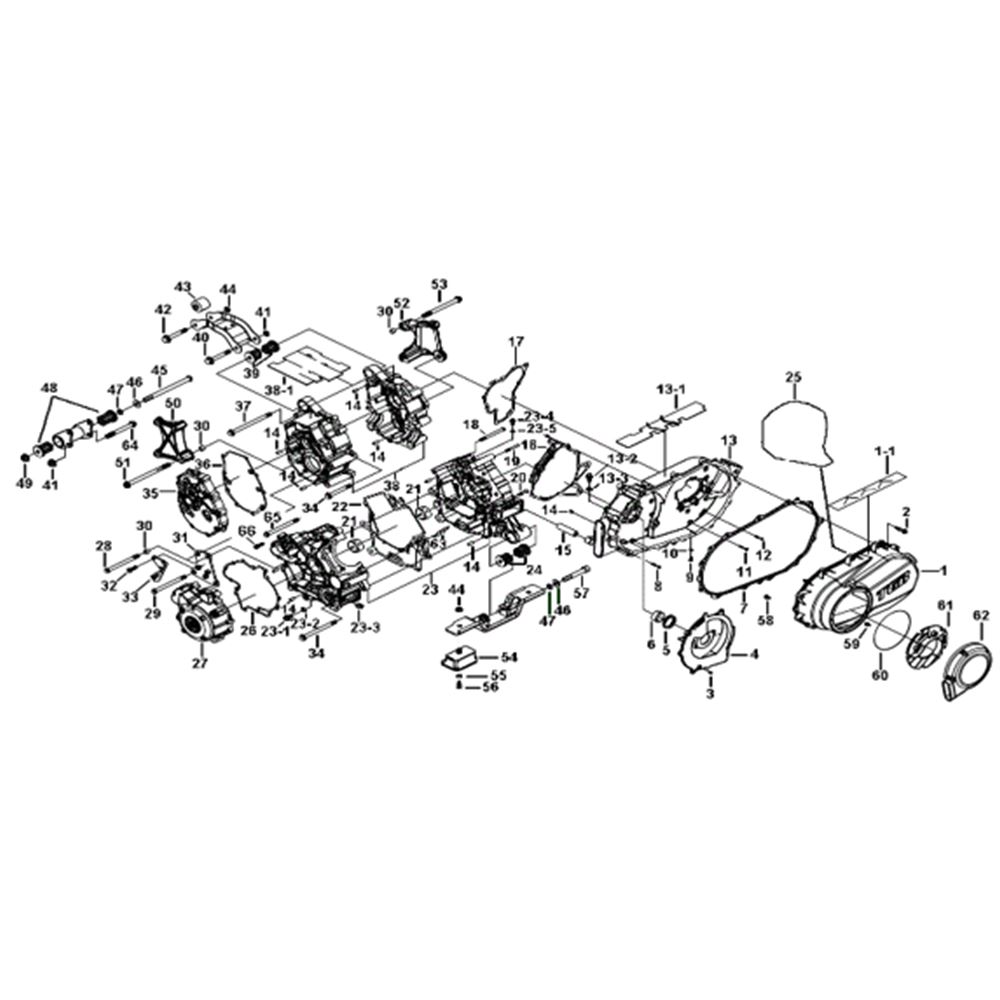

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | 910666C | CVT COVER COMP. | 1 | £92.06 | Available in 14-21 days | ||
| 01-1 | 910640 | HEAT INSULATION | 1 | £7.39 | Available in 14-21 days | ||
| 2 | 910278 | BOLT | 12 | £3.22 | In Stock | ||
| 3 | S24603 | BOLT, FLANGE M6x16 | 6 | £0.67 | In Stock | ||
| 4 | 911106 | AIR DUCTING GUIDE | 1 | £26.21 | Available in 14-21 days | ||
| 5 | 910563 | OIL SEAL | 1 | £15.31 | Available in 14-21 days | ||
| 6 | 910337 | PLAIN BEARING | 2 | £38.30 | Available in 14-21 days | ||
| 7 | 910123 | GASKET | 1 | £23.90 | In Stock | ||
| 8 | S70822 | BOLT, FLANGE M8X65L | 1 | £2.45 | Available in 14-21 days | ||
| 9 | GA504SC12 | BOLT, FLANGE M8X12 | 1 | £0.58 | Available in 14-21 days | ||
| 10 | W99821 | WASHER | 1 | £0.29 | In Stock | ||
| 11 | S70815 | BOLT, FLANGE M8X35L | 26 | £2.50 | Available in 14-21 days | ||
| 12 | 910475 | POSITION SCREW | 2 | £1.25 | Available in 14-21 days | ||
| 13 | 911487B | CRANKCASE COVER, LH. (W/ BOLT, WASHER) | 1 | £182.74 | Available in 14-21 days | ||
| 13-1 | 910558 | HEAT INSULATION | 1 | £20.98 | Available in 14-21 days | ||
| 13-2 | S75803 | BOLT | 1 | £0.86 | Available in 14-21 days | ||
| 13-3 | W99821 | WASHER | 1 | £0.29 | In Stock | ||
| 14 | P30802 | PIN, DOWEL (NR 8*14L) | 10 | £1.82 | Available in 14-21 days | ||
| 15 | 910524 | SPACER | 1 | £9.31 | Available in 14-21 days | ||
| 16 | 911486 | GASKET | 1 | £31.44 | In Stock | ||
| 17 | 911115 | GASKET | 1 | £21.79 | In Stock | ||
| 18 | S20830 | BOLT, FLANGE | 4 | £2.59 | Available in 14-21 days | ||
| 19 | S24621 | BOLT, FLANGE | 13 | £0.77 | Available in 14-21 days | ||
| 20 | S24605 | BOLT, FLANGE M6X25 | 2 | £0.67 | Available in 14-21 days | ||
| 21 | 910250 | PLAIN BEARING | 4 | £18.53 | Available in 14-21 days | ||
| 22 | 910674 | GASKET | 1 | £40.99 | In Stock | ||
| 23 | 911108B-A | CRANKCASE COMP. | 1 | £345.24 | Available in 14-21 days | ||
| 23-1 | S72202 | SCREW, SOCKET | 1 | £1.63 | Available in 14-21 days | ||
| 23-2 | W99201 | WASHER 12mm | 1 | £0.72 | In Stock | ||
| 23-3 | 927109A | SCREW | 1 | £8.06 | Available in 14-21 days | ||
| 23-4 | S70702 | SCREW, HEX. SCCKET M7XP1.0XL30 | 1 | £1.92 | Available in 14-21 days | ||
| 23-5 | W99719 | WASHER (?7.2X?12X1.0) | 1 | £1.25 | Available in 14-21 days | ||
| 24 | 912037 | BUSH | 2 | £29.18 | Available in 14-21 days | ||
| 25 | 912121 | SOUND PROOF | 1 | £45.94 | Available in 14-21 days | ||
| 26 | 910052 | GASKET | 1 | £16.75 | In Stock | ||
| 27 | 910051B | CRANKCASE COVER, RH. | 1 | £124.99 | Available in 14-21 days | ||
| 28 | S20223 | BOLT, FLANGE | 2 | £15.31 | Available in 14-21 days | ||
| 29 | S20219 | BOLT, FLANGE | 2 | £10.70 | Available in 14-21 days | ||
| 30 | P40501 | PIN, DOWEL | 12 | £3.41 | Available in 14-21 days | ||
| 31 | 911438 | CONNECTING PLATE | 1 | £43.73 | Available in 14-21 days | ||
| 32 | S70805 | BOLT M8X1.25X25L | 3 | £1.63 | Available in 14-21 days | ||
| 33 | 911437 | BRACKET | 1 | £18.58 | Available in 14-21 days | ||
| 34 | S20057 | BOLT, FLANGE | 2 | £6.24 | Available in 14-21 days | ||
| 35 | 911496B | TRANSMISSION COVER, RH. | 1 | £129.02 | Available in 14-21 days | ||
| 36 | 911484 | GASKET | 1 | £17.76 | Available in 14-21 days | ||
| 37 | S20056 | BOLT, FLANGE | 1 | £6.67 | Available in 14-21 days | ||
| 38 | 911110A | TRANSMISSION HOUSING COMP. (W/ HEAT INSULATION, BOLT, WASHER) | 1 | £224.28 | Available in 14-21 days | ||
| 38-1 | 911323 | HEAT INSULATION | 1 | £15.17 | Available in 14-21 days | ||
| 39 | 910088A | BUSH | 2 | £40.03 | Available in 14-21 days | ||
| 40 | S20217 | BOLT, FLANGE | 1 | £0.67 | Available in 14-21 days | ||
| 41 | N25201 | NUT, SELFLOCK M12X1.25 | 3 | £1.54 | In Stock | ||
| 42 | S20012 | BOLT M10X80 | 1 | £2.40 | Available in 14-21 days | ||
| 43 | 925696 | BUSH COMP. | 1 | £29.95 | Available in 14-21 days | ||
| 44 | GA551NT01 | NUT, SELFLOCK M10X10 | 1 | £1.30 | In Stock | ||
| 45 | S20409 | BOLT | 1 | £17.18 | Available in 14-21 days | ||
| 46 | W99442 | WASHER | 2 | £13.63 | Available in 14-21 days | ||
| 47 | W10002 | SPRING WASHER | 2 | £1.06 | Available in 14-21 days | ||
| 48 | 912038 | BUSH | 2 | £30.62 | Available in 14-21 days | ||
| 49 | N25402 | FLANGE NUT M14 | 1 | £6.58 | Available in 14-21 days | ||
| 50 | 911554B | CONNECTING PLATE (R) | 1 | £155.47 | Available in 14-21 days | ||
| 51 | S20220 | BOLT | 2 | £11.47 | Available in 14-21 days | ||
| 52 | 911553B | CONNECTING PLATE (L) | 1 | £186.53 | Available in 14-21 days | ||
| 53 | S20222 | BOLT | 2 | £9.31 | Available in 14-21 days | ||
| 54 | 912004 | BUSH | 2 | £98.06 | Available in 14-21 days | ||
| 55 | G556WS06 | SPRING WASHER | 2 | £0.29 | Available in 14-21 days | ||
| 56 | S21007 | BOLT M10X1.25X20 | 2 | £2.11 | Available in 14-21 days | ||
| 57 | S70407 | BOLT | 1 | £11.23 | Available in 14-21 days | ||
| 58 | S08601 | SCREW, WASHER | 5 | £0.77 | Available in 14-21 days | ||
| 59 | S24603 | BOLT, FLANGE M6x16 | 3 | £0.67 | In Stock | ||
| 60 | 910673 | O RING | 1 | £5.14 | Available in 14-21 days | ||
| 61 | 910667 | CAP | 1 | £70.56 | Available in 14-21 days | ||
| 62 | 910591 | AIR DEFLECTOR | 1 | £13.39 | Available in 14-21 days | ||
| 63 | 910669 | STOPPER PLATE | 1 | £2.30 | Available in 14-21 days | ||
| 64 | S20221 | SH. FLANGE BOLT M12X110L | 2 | £7.39 | Available in 14-21 days | ||
| 65 | S20055 | BOLT, FLANGE | 1 | £6.24 | Available in 14-21 days | ||
| 66 | S77601 | BOLT, FLANGE | 1 | £0.86 | In Stock |
