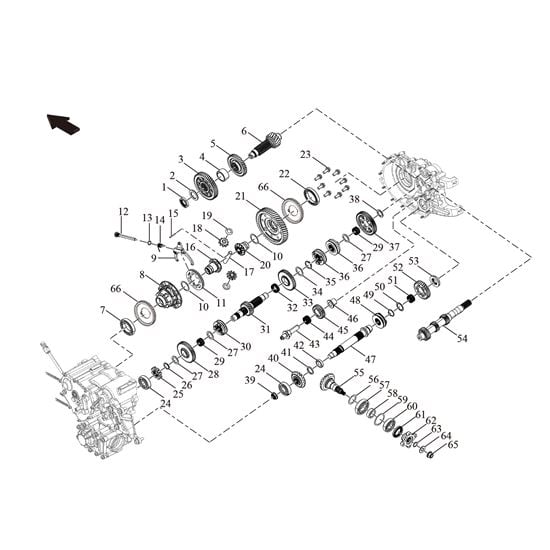

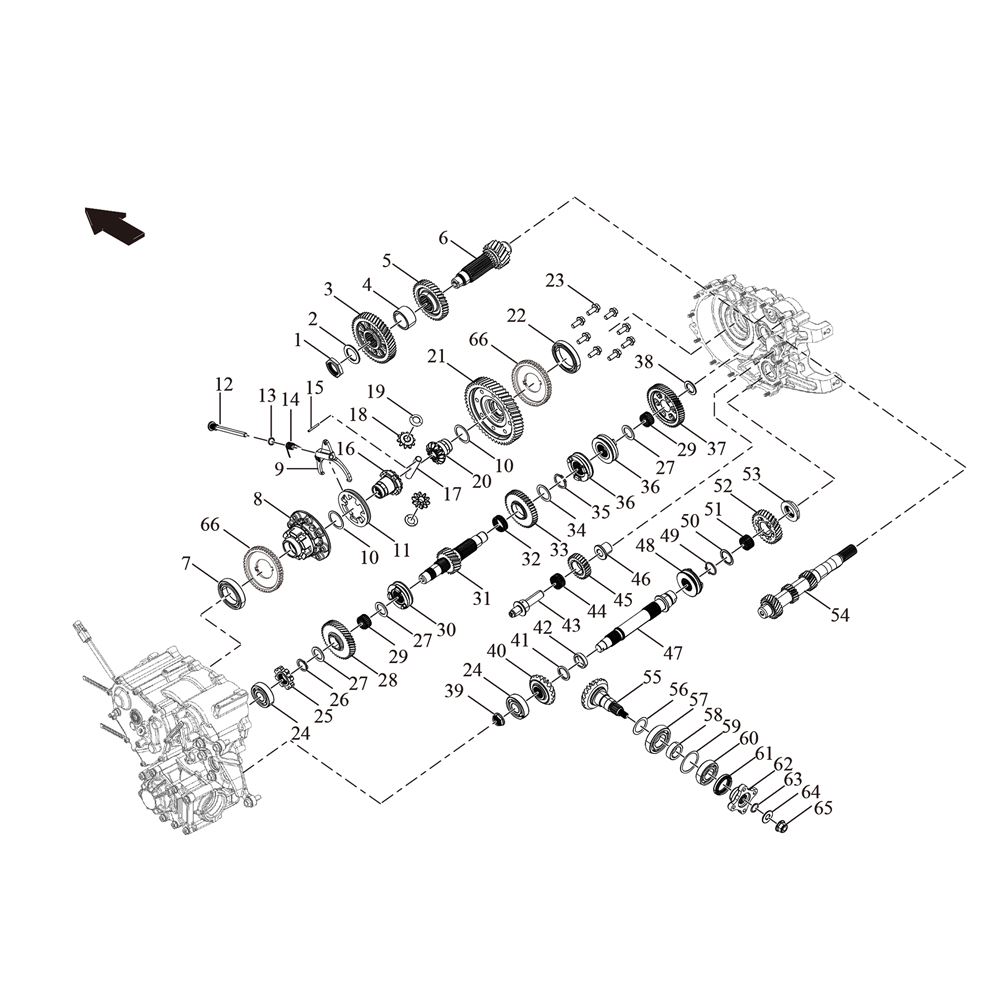

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | F01F10406001 | HEXAGON HEAD BOLT M6�40 | 1 | £0.38 | Available in 14-21 days | ||
| 1 | E02F23003001 | NUT M33�1.5 | 1 | £3.17 | Available in 14-21 days | ||
| 2 | F01F10407001 | SPACER 6.2�22�2 | 1 | £0.38 | Available in 14-21 days | ||
| 2 | E03-F203005-000-00 | GASKET 34�52�3 | 1 | £1.82 | Available in 14-21 days | ||
| 3 | E03-F203002-000-00 | SECONDARY DRIVEN GEAR | 1 | £23.62 | Available in 14-21 days | ||
| 3 | F01F10404001 | SECTOR GEAR TORSION SPRING | 1 | £0.38 | Available in 14-21 days | ||
| 4 | F01F10403001 | SECTOR GEAR | 1 | £5.62 | Available in 14-21 days | ||
| 4 | E03-F203004-000-00 | Bushing 40.5 � 52 � 27 | 1 | £4.22 | Available in 14-21 days | ||
| 5 | E03-F203003-000-00 | DRIVE GEAR | 1 | £22.56 | Available in 14-21 days | ||
| 5 | F01F10405001 | SECTOR GEAR SPACER | 1 | £2.78 | Available in 14-21 days | ||
| 6 | F01F10402001 | SHIFT DETENT WHEEL | 1 | £2.93 | Available in 14-21 days | ||
| 6 | E03-F203001-000-00 | TRIAXIAL | 1 | £55.87 | Available in 14-21 days | ||
| 7 | F01G00008001 | SPACER 15�28�1 | 1 | £0.38 | Available in 14-21 days | ||
| 7 | BG002760-06010-001 | BEARING 6010 | 1 | £24.77 | Available in 14-21 days | ||
| 8 | E03-F101000-000-00 | VARIABLE SPEED DRUM | 1 | £30.53 | Available in 14-21 days | ||
| 8 | E03-F205002-000-00 | DIFFERENTIAL HOUSING | 1 | £74.11 | Available in 14-21 days | ||
| 9 | E03-F250060-000-00 | DIFFERENTIAL SHIFT FORK | 1 | £16.18 | Available in 14-21 days | ||
| 9 | F01F10007001 | NEUTRAL POSITION SPRING PLUG | 1 | £1.54 | Available in 14-21 days | ||
| 10 | F01F10003001 | GASKET 14�21�1.5 | 1 | £0.38 | Available in 14-21 days | ||
| 10 | Q02-R301007-000-00 | SHIM�?�40.2��?�50 | 2 | £1.82 | Available in 14-21 days | ||
| 11 | E03-F205003-000-00 | REAR DIFFERENTIAL OUTPUT SHIFT SLEEVE | 1 | £25.78 | Available in 14-21 days | ||
| 11 | F01F10001001 | NEUTRAL POSITION SPRING | 1 | £0.38 | Available in 14-21 days | ||
| 12 | GBT003081003 | BALL 3/8 | 1 | £0.38 | Available in 14-21 days | ||
| 12 | E03-F250000-000-00 | DIFFERENTIAL SHIFT FORK SHAFT | 1 | £18.05 | Available in 14-21 days | ||
| 13 | F01F10008001 | O-RING 29.6�2.4 | 1 | £0.38 | Available in 14-21 days | ||
| 13 | F01G00005001 | O-RING 13.8�2.5 | 1 | £0.38 | Available in 14-21 days | ||
| 14 | F01F10700001 | GEAR SENSOR | 1 | £14.93 | In Stock | ||
| 14 | E03-F250001-000-00 | RETURN SPRING | 1 | £0.53 | Available in 14-21 days | ||
| 15 | BG008791-40035-001 | PIN 4�� 35 | 1 | £0.38 | Available in 14-21 days | ||
| 15 | F01000004001 | BOLT M6�20 | 1 | £0.38 | Available in 14-21 days | ||
| 16 | E03-F205004-000-00 | RIGHT REAR HALF SHAFT BEVEL GEAR | 1 | £60.14 | Available in 14-21 days | ||
| 16 | E03-F140000-000-00 | PARKING ARM | 1 | £17.18 | Available in 14-21 days | ||
| 17 | E03-F120002-000-00 | PARKING ARM SHAFT | 1 | £1.39 | Available in 14-21 days | ||
| 17 | E03-F205006-000-00 | REAR OUTPUT PLANETARY GEAR SHAFT | 1 | £6.82 | Available in 14-21 days | ||
| 18 | E03-F205007-000-00 | TRANSMISSION PLANETARY GEAR | 2 | £11.81 | Available in 14-21 days | ||
| 18 | F01F10603001 | SPACER 12�20�1 | 2 | £0.38 | Available in 14-21 days | ||
| 19 | GBT000894006 | CIRCLIP 12 | 8 | £0.38 | Available in 14-21 days | ||
| 19 | Q02-R301014-000-00 | BOWL SHAPED GASKET | 2 | £0.38 | Available in 14-21 days | ||
| 20 | E03-F205010-000-00 | LEFT REAR HALF SHAFT BEVEL GEAR | 1 | £41.90 | Available in 14-21 days | ||
| 20 | E03-F140050-000-00 | PARKING ARM RETURN SPRING | 1 | £0.58 | Available in 14-21 days | ||
| 21 | E03-F205001-000-00 | REAR OUTPUT GEAR | 1 | £145.01 | Available in 14-21 days | ||
| 21 | F01F10006001 | DETENT PAWL TORSION SPRING | 1 | £0.38 | Available in 14-21 days | ||
| 22 | F01F10401001 | DETENT PAWL | 1 | £1.49 | Available in 14-21 days | ||
| 22 | GBT000276035 | BEARING 61912 | 1 | £30.19 | Available in 14-21 days | ||
| 23 | GBT005789053 | BOLT M10�1.25�25 | 8 | £0.86 | Available in 14-21 days | ||
| 23 | F01F10408001 | SHOULDER BOLT | 1 | £0.86 | Available in 14-21 days | ||
| 24 | F01F10500001 | SHIFT SHAFT | 1 | £12.96 | Available in 14-21 days | ||
| 24 | BG002760-06305-001 | Bearing 6305C3 | 2 | £16.66 | Available in 14-21 days | ||
| 25 | GBT012764001 | NEEDLE ROLLER BEARING HK121612 | 1 | £1.10 | Available in 14-21 days | ||
| 25 | E03-F202005-000-00 | PARKING RATCHET | 1 | £13.97 | Available in 14-21 days | ||
| 26 | F01F10203001 | SHIFT FORK SPRING SEAT | 4 | £0.38 | Available in 14-21 days | ||
| 26 | E02F22012002 | CIRCLIP 28�2.5 | 1 | £0.43 | Available in 14-21 days | ||
| 27 | E02F22008002 | WASHER 28�40�2.5 | 3 | £0.48 | Available in 14-21 days | ||
| 27 | E03-F120000-000-00 | L-GEAR SHIFT FORK SHAFT | 1 | £2.83 | Available in 14-21 days | ||
| 28 | E03-F202004-000-00 | H-GEAR DRIVEN GEAR | 1 | £25.78 | Available in 14-21 days | ||
| 28 | F01F10202001 | SHIFT FORK | 4 | £0.38 | Available in 14-21 days | ||
| 29 | E02F22013002 | NEEDLE ROLLER BEARING K28�33�17 | 1 | £2.98 | Available in 14-21 days | ||
| 29 | E02F12101001 | L-GEAR FORK | 1 | £17.33 | Available in 14-21 days | ||
| 30 | E02F22007001 | H GEAR ENGAGEMENT SLEEVE | 1 | £12.43 | Available in 14-21 days | ||
| 30 | E02F13101001 | H/R GEAR SHIFT FORK | 2 | £18.19 | Available in 14-21 days | ||
| 31 | E03-F120001-000-00 | HR SHIFT FORK SHAFT | 1 | £3.02 | Available in 14-21 days | ||
| 31 | E03-F202001-000-00 | COUNTERSHAFT | 1 | £61.73 | Available in 14-21 days | ||
| 32 | E03-F120003-000-00 | 2/4 WD FORK SHAFT | 1 | £1.87 | Available in 14-21 days | ||
| 32 | E02F22011001 | NEEDLE ROLLER BEARING K35�40�13 | 1 | £3.46 | Available in 14-21 days | ||
| 33 | E03-F131000-000-00 | 2/4 WD FORK | 1 | £14.50 | Available in 14-21 days | ||
| 33 | E03-F202003-000-00 | R GEAR DRIVEN GEAR | 1 | £23.09 | Available in 14-21 days | ||
| 34 | E02F22009001 | SPACER 35�46�1.5 | 1 | £0.48 | Available in 14-21 days | ||
| 34 | E03-F302010-000-01 | SOLENOID VALVE | 1 | £98.59 | Available in 14-21 days | ||
| 35 | D01P21207001 | CIRCLIP 35�2.5 | 1 | £0.62 | Available in 14-21 days | ||
| 36 | E02F22006001 | R/L GEAR COUPLING SLEEVE | 2 | £12.96 | Available in 14-21 days | ||
| 37 | E03-F202002-000-00 | L GEAR DRIVEN GEAR | 1 | £21.98 | Available in 14-21 days | ||
| 38 | E03-F202007-000-00 | WASHERS 25 � 38 � 2.5 | 1 | £0.82 | Available in 14-21 days | ||
| 39 | F01F20403001 | HEXAGONAL FLANGE NUT M22�1 | 1 | £1.73 | Available in 14-21 days | ||
| 40 | E03-F240001-000-00 | FRONT OUTPUT DRIVE BEVEL GEAR | 1 | £44.06 | Available in 14-21 days | ||
| 41 | E03-F240003-000-00 | DRIVE GEAR SHIM | 1 | £0.86 | Available in 14-21 days | ||
| 42 | E03-F240002-000-00 | FRONT OUTPUT DRIVING GEAR BUSHING | 1 | £2.64 | Available in 14-21 days | ||
| 43 | E03-F207001-000-00 | REVERSE GEAR SHAFT | 1 | £17.18 | Available in 14-21 days | ||
| 44 | E02F22010001 | NEEDLE BEARING K30�35�17 | 1 | £3.17 | Available in 14-21 days | ||
| 45 | E03-F207002-000-00 | REVERSE GEAR IDLER GEAR | 1 | £19.30 | Available in 14-21 days | ||
| 46 | E03-F207004-000-00 | REVERSE SHAFT BUSHING | 1 | £7.15 | Available in 14-21 days | ||
| 47 | E03-F204001-000-00 | GEAR SHAFT | 1 | £73.06 | Available in 14-21 days | ||
| 48 | E03-F204003-000-00 | 2 4WD COMBINING SLEEVE | 1 | £12.91 | Available in 14-21 days | ||
| 49 | BG008940-03202-F01 | CLIP 32�2 | 1 | £0.38 | Available in 14-21 days | ||
| 50 | E03-F204005-000-00 | SPLINE WASHER OD43 � 1.5 | 1 | £1.06 | Available in 14-21 days | ||
| 51 | E03-F204004-000-00 | NEEDLE ROLLER BEARING 30 � 34 � 17LE ROL | 1 | £15.07 | Available in 14-21 days | ||
| 52 | E03-F204002-000-00 | DRIVEN GEAR | 1 | £23.62 | Available in 14-21 days | ||
| 53 | E03-F204006-000-00 | HEXAGONAL FLANGE NUT M33 � 1.5 | 1 | £3.74 | Available in 14-21 days | ||
| 54 | E03-F201001-000-00 | MAIN SHAFT | 1 | £73.06 | Available in 14-21 days | ||
| 55 | E03-F260001-000-00 | FRONT OUTPUT DRIVEN BEVEL GEAR SHAFT | 1 | £66.58 | Available in 14-21 days | ||
| 56 | E02F26002003 | DRIVEN GEAR PAD 42�48�0.6 | 1 | £0.43 | Available in 14-21 days | ||
| 57 | BG002920-72072-001 | BEARING 7207 | 1 | £26.69 | Available in 14-21 days | ||
| 58 | E03-F260000-000-00 | BEARING SPACER | 1 | £4.42 | Available in 14-21 days | ||
| 59 | E03-F260005-000-00 | SHIM 62�51�0.4 | 1 | £1.20 | Available in 14-21 days | ||
| 60 | BG002920-72062-001 | BEARING 7206 | 1 | £24.77 | Available in 14-21 days | ||
| 61 | D02P22202001 | OIL SEAL 38�55�7 | 1 | £6.91 | Available in 14-21 days | ||
| 62 | E03-F260002-000-00 | FRONT OUTPUT FLANGE | 1 | £22.56 | Available in 14-21 days | ||
| 63 | F01F20508001 | O-RING 20�2.65 | 1 | £0.38 | Available in 14-21 days | ||
| 64 | E03-F260003-000-00 | WASHER 15x34x2 | 1 | £0.48 | Available in 14-21 days | ||
| 65 | BG061872-14150-0A1 | NUT M14X1.5 | 1 | £0.86 | Available in 14-21 days | ||
| 66 | E03-F205009-000-00 | ABS SIGNAL GEAR | 2 | £7.30 | Available in 14-21 days |
