TGB Blade 520SL Grey

TGBBL520SLEPSGREY

£6999.00(INC. VAT)
* 5 Year Manufacturer Limited Warranty *     The Blade series has been sold worldwide now for over 20 years. The 520SL is the latest edition to the agricultural lineup.  A combinat... FULL DESCRIPTION

FindFind your nearest dealer (UK only)

(Enabling your device/browser Location Services will help with this.)

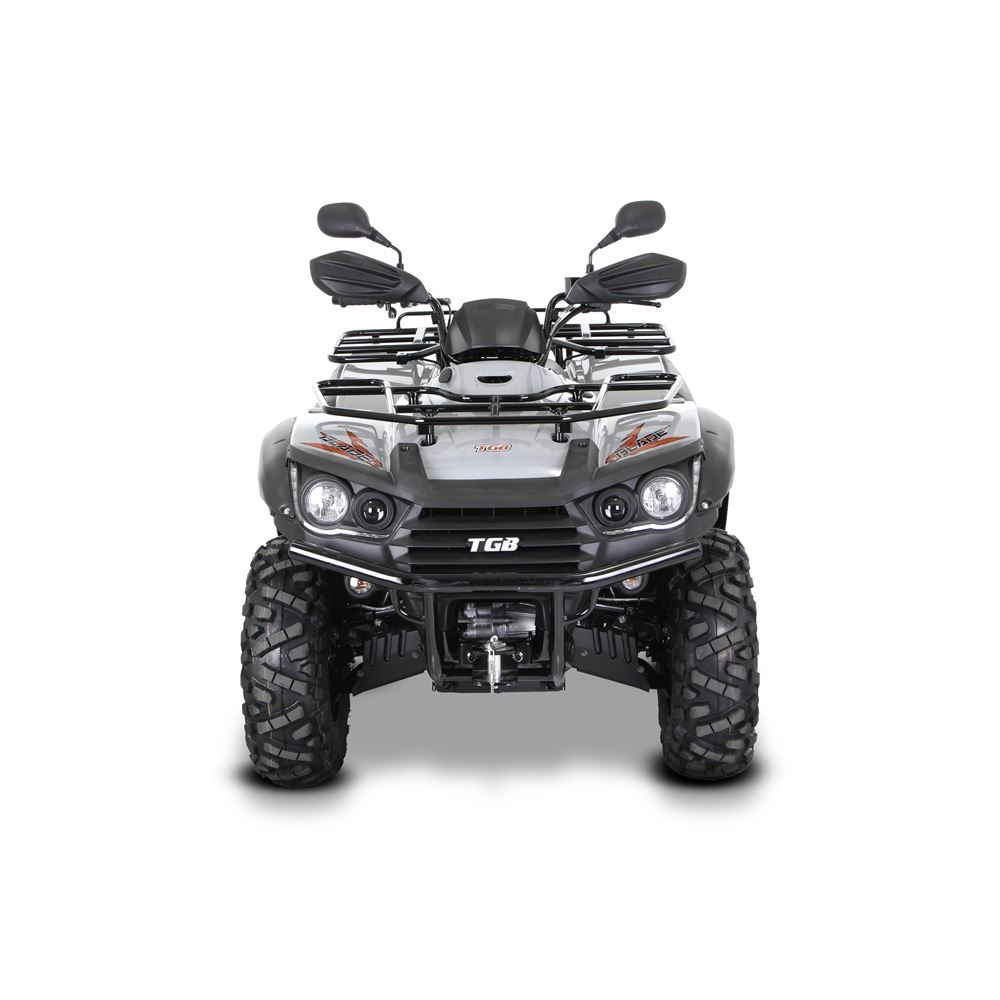

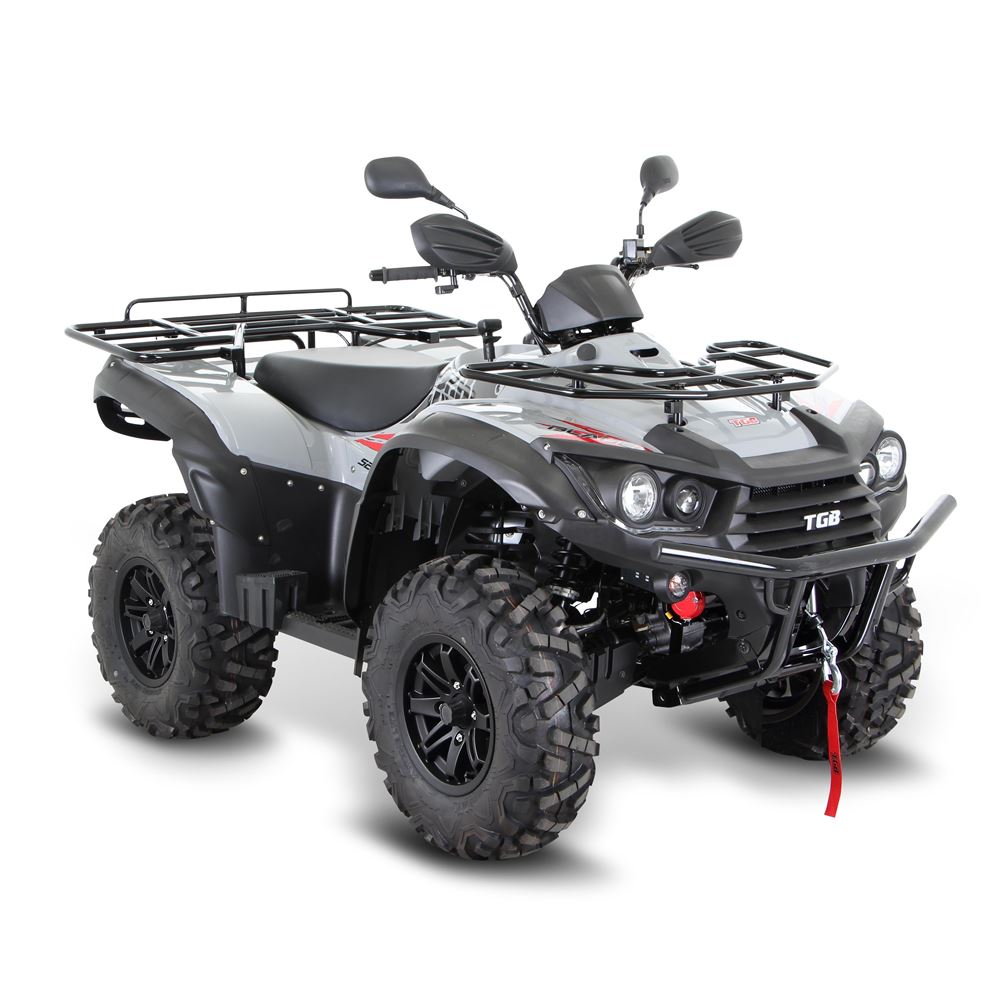

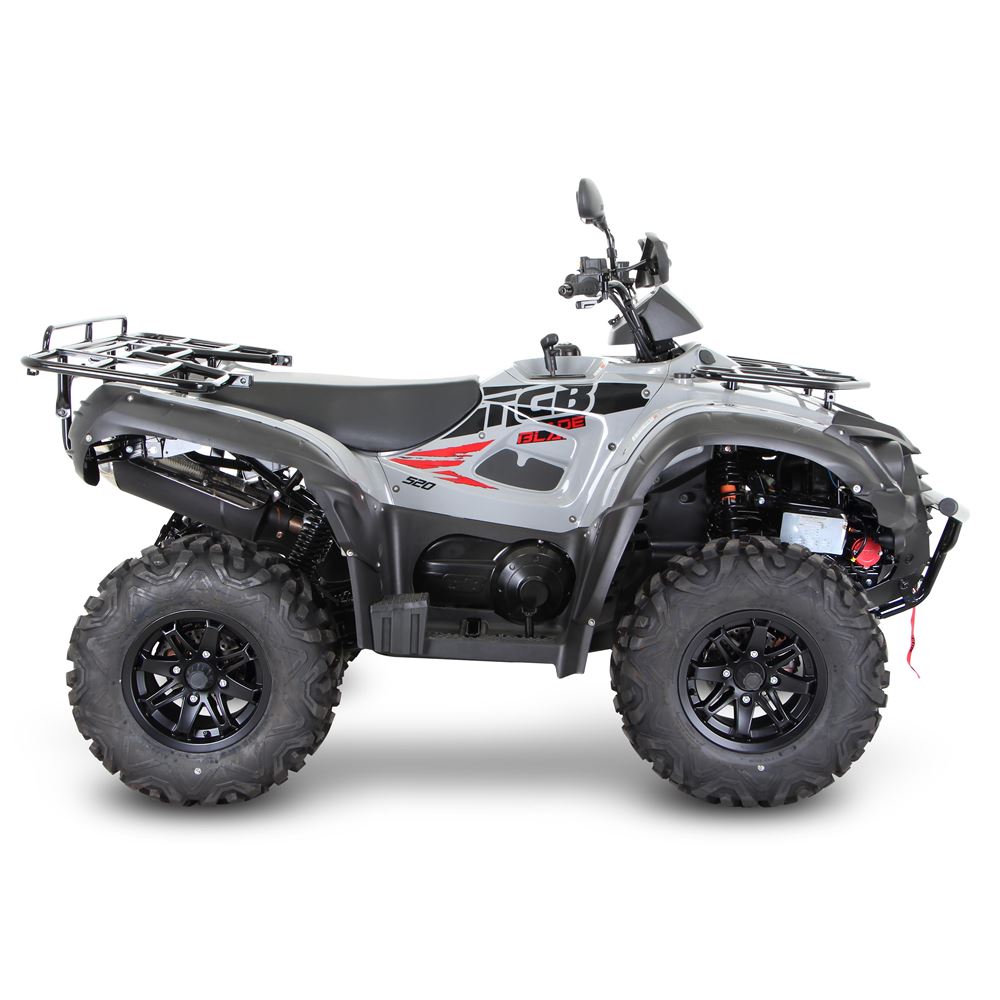

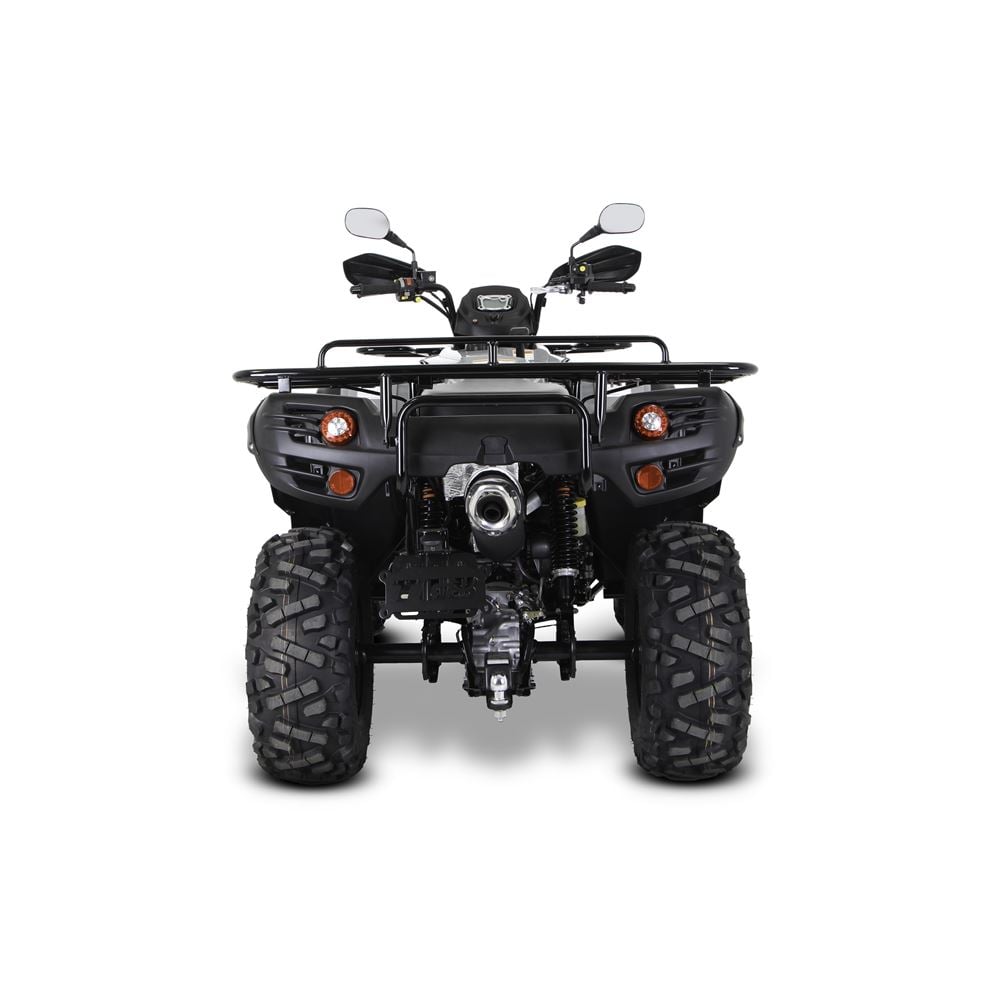

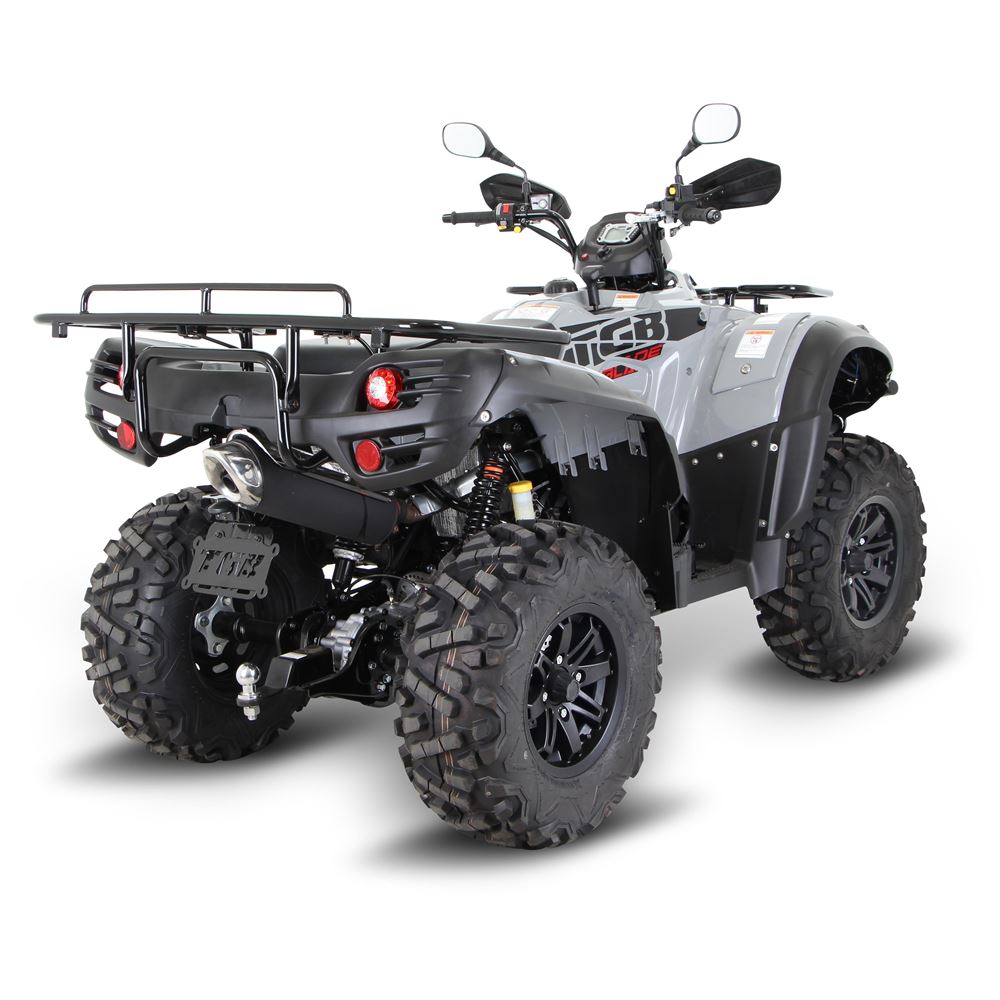

TGB Blade 520SL Grey

Power Steering

Designed to enhance productivity and ease of use, our power steering system is the perfect addition to your hardworking machine. Tackle challenging terrains and navigate tight spaces with precision and control. Say goodbye to arm fatigue and enjoy a more comfortable and efficient ride. Our power steering system is specifically engineered to ensure you get a reliable performance in demanding environments. With improved responsiveness and stability, you'll have the confidence to handle any task with ease. Maximize your productivity and minimize downtime with our reliable power steering system.

2/4 Wheel Drive Selectable

With the ability to switch between 2-wheel drive and 4-wheel drive, you have the flexibility to optimize your quad's traction and manoeuvrability based on the conditions you encounter. Conquer challenging landscapes and navigate through muddy fields with confidence, knowing that you can effortlessly switch to 4-wheel drive when additional traction is needed. Experience the freedom to tackle any job with ease. Upgrade your agricultural quad with our 2/4 Wheel Drive Selectable system and unlock a new level of versatility and capability. Increase your productivity and efficiency on the field, knowing that you have the power to adapt to any situation.

Tow Bar & Winch

The tow bar provides you with the capability to tow heavy loads with ease. Whether you need to transport equipment, haul supplies, or assist with farm chores, our tow bar is built to handle the job. With its rugged construction and secure attachment, you can trust that your cargo will stay in place, even over rough terrain. Coupled with the tow bar, our powerful winch adds an extra level of utility to your quad. Designed to effortlessly handle heavy lifting and pulling, the winch provides the strength you need to overcome challenging obstacles. From removing fallen trees to rescuing stuck vehicles, the winch is a reliable companion in any tough situation.

* 5 Year Manufacturer Limited Warranty *



The Blade series has been sold worldwide now for over 20 years. The 520SL is the latest edition to the agricultural lineup.  A combination of elements developed over a decade of hard work within the agricultural industry, the 520SL boasts a long list of key features.  This workhorse ATV is ideal for any agricultural situation.



Powered by the tried and tested TGB 503cc high torque engine, but now equipped with Electronic fuel injection.



The Blade 520SL is T3 homologated so can be registered for road use.



Bore & Stroke 92 X 75.6 mm
Capacity503cc
ClutchAutomatic - CVT
Compression Ratio 10.2
CoolingLiquid Cooled
Drive Type 2/4 Wheel Drive Selectable
Electric Power Steering Yes
Electrical Outlet Connector DC 12V 10A 120W
Engine Type4-Stroke Single Cylinder
Final DriveShaft
Front BrakesDisc
Front Shock AbsorbersPreload Adjustable Hydraulic
Front SuspensionFully Adjustable
Front Tyre SizeAT25 x 8-12
Front Wheel Size12"
Fuel SystemEFI - Electronic Fuel Injection
Fuel Tank Capacity18 Litres
Gear Selection L/H/N/R
GearboxAutomatic Gears
Ground Clearance305 mm
Max Power40HP (OFF ROAD)
Max Torque46.1 NM
Overall Height1502 mm
Overall Length 2120 mm
Overall Width 1240 mm
Rear BrakesDisc
Rear Shock AbsorbersPreload Adjustable Hydraulic
Rear SuspensionSwing Arm
Rear Tyre SizeAT25 x 10-12
Rear Wheel Size12"
Start TypeElectric Start
Tow Hitch Yes
Transmission TypeV-belt CVT Automatic
Tyre BrandInnova
Unbraked Towing Capacity 850 kg
Warranty5 Year Manufacturer Limited Warranty
Wheel Size12 Inch
Wheel TypeAlloy
Wheelbase1290 mm
Winch Yes
