* 5 Year Manufacturer Limited Warranty *

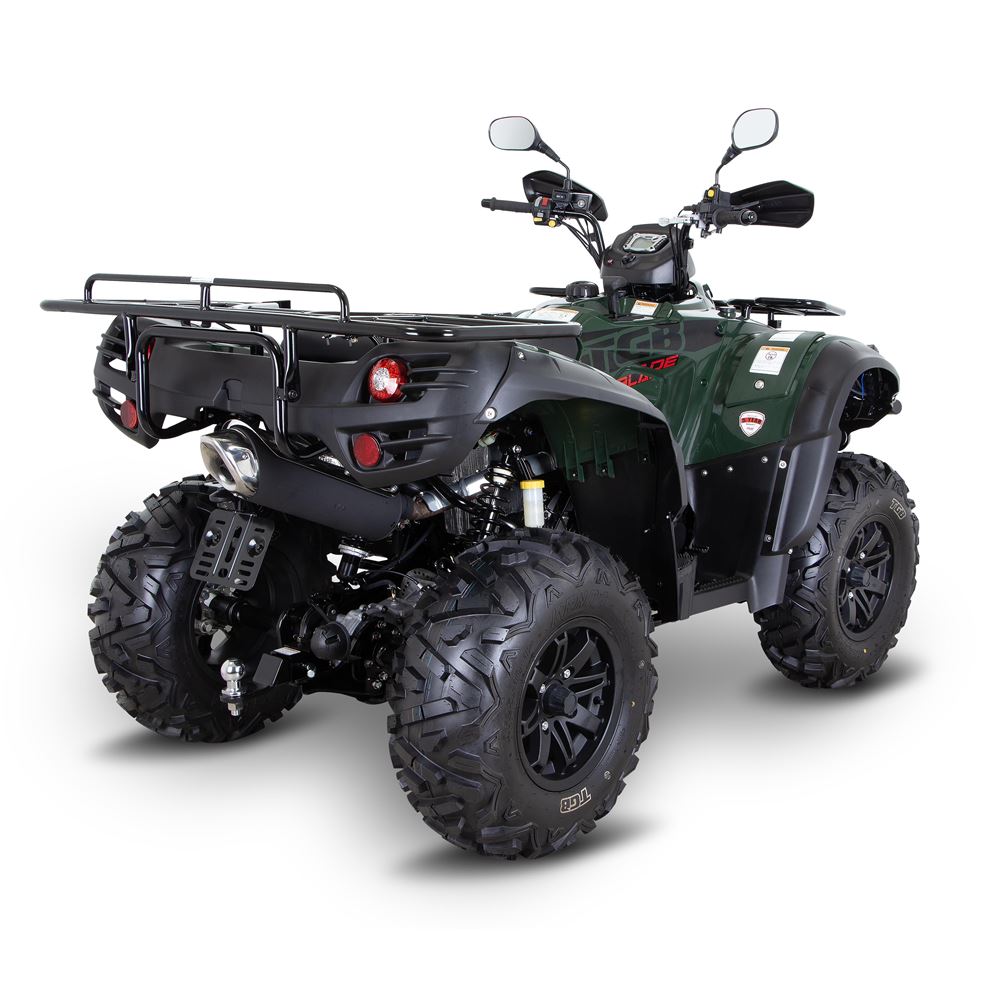

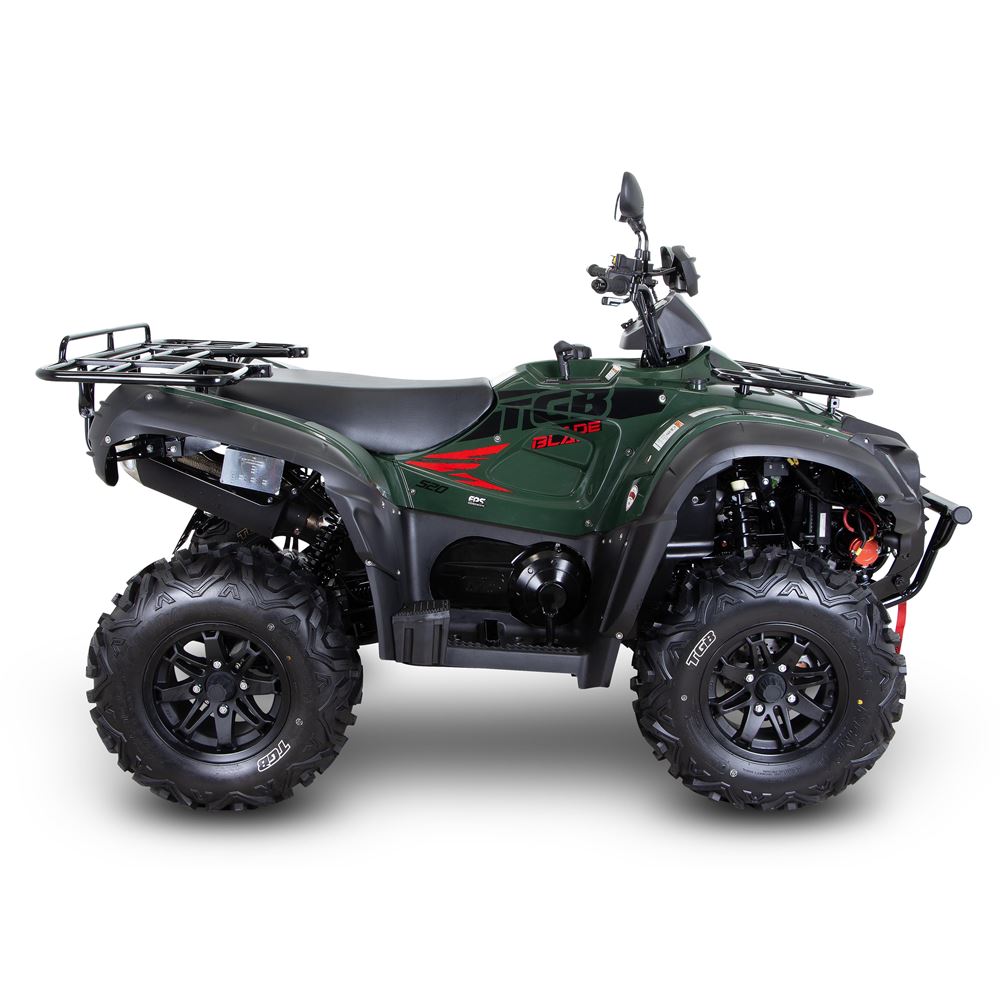

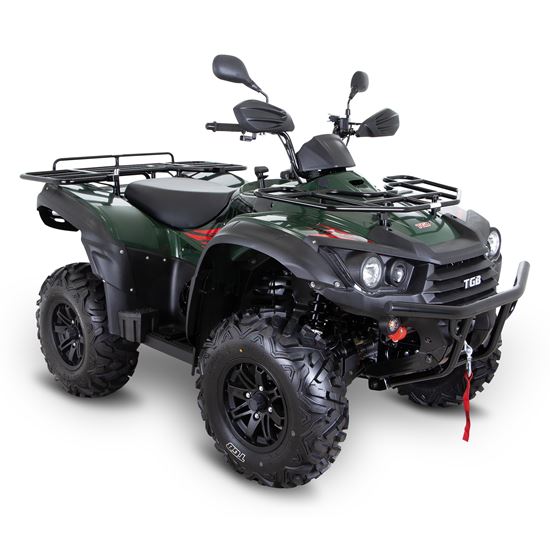

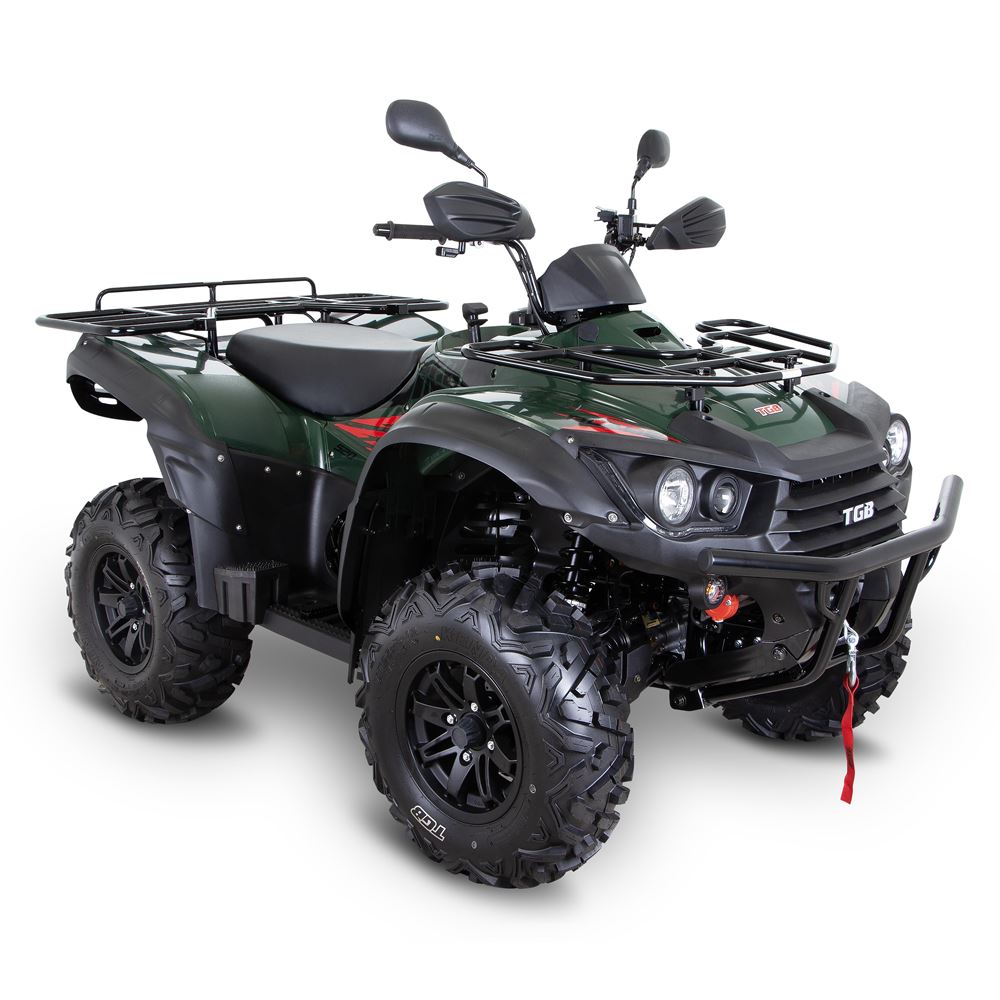

The Blade series has been sold worldwide now for over 20 years. The 520SL is the latest edition to the agricultural lineup. A combination of elements developed over a decade of hard work within the agricultural industry, the 520SL boasts a long list of key features. This workhorse ATV is ideal for any agricultural situation.
Powered by the tried and tested TGB 503cc high torque engine, but now equipped with Electronic fuel injection.
The Blade 520SL is T3 homologated so can be registered for road use.
The CESAR Scheme (Construction and Agricultural Equipment Security and Registration) is the UK’s official national security initiative designed to deter theft and aid in the recovery of high-value machinery including ATV and side-by-side machines.

Owned by the Construction Equipment Association (CEA) and powered by Datatag ID Ltd, the scheme uses a multi-layered suite of forensic marking technologies to give every piece of equipment a unique and permanent "fingerprint."
Since its launch, it has become the industry standard, with over 700,000 systems supplied to almost all the major brands in the construction and agriculture industries.
Because the database is accessible through Datatag's own RAPID web portal and linked directly to the Police National Computer (PNC), law enforcement can identify stolen assets instantly, even if the manufacturer’s original serial plates or engine numbers have been removed.
Key Features
| Bore & Stroke | 92 X 75.6 mm |
| Capacity | 503cc |
| Clutch | Automatic - CVT |
| Compression Ratio | 10.2 |
| Cooling | Liquid Cooled |
| Drive Type | 2/4 Wheel Drive Selectable |
| Electric Power Steering | Yes |
| Electrical Outlet Connector | DC 12V 10A 120W |
| Engine Type | 4-Stroke Single Cylinder |
| Final Drive | Shaft |
| Front Brakes | Disc |
| Front Shock Absorbers | Preload Adjustable Hydraulic |
| Front Suspension | Fully Adjustable |
| Front Tyre Size | AT25 x 8-12 |
| Front Wheel Size | 12" |
| Fuel System | EFI - Electronic Fuel Injection |
| Fuel Tank Capacity | 18 Litres |
| Gear Selection | L/H/N/R |
| Gearbox | Automatic Gears |
| Ground Clearance | 305 mm |
| Max Power | 40HP (OFF ROAD) |
| Max Torque | 46.1 NM |
| Overall Height | 1502 mm |
| Overall Length | 2120 mm |
| Overall Width | 1240 mm |
| Rear Brakes | Disc |
| Rear Shock Absorbers | Preload Adjustable Hydraulic |
| Rear Suspension | Swing Arm |
| Rear Tyre Size | AT25 x 10-12 |
| Rear Wheel Size | 12" |
| Start Type | Electric Start |
| Tow Hitch | Yes |
| Transmission Type | V-belt CVT Automatic |
| Tyre Brand | Innova |
| Unbraked Towing Capacity | 850 kg |
| Warranty | 5 Year Manufacturer Limited Warranty |
| Wheel Size | 12 Inch |
| Wheel Type | Alloy |
| Wheelbase | 1290 mm |
| Winch | Yes |
